WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58437

BRAND: ALM Busy Circuits

MODEL: Beast's Chalkboard

FUNCTION: Eurorack Synthesizer Module

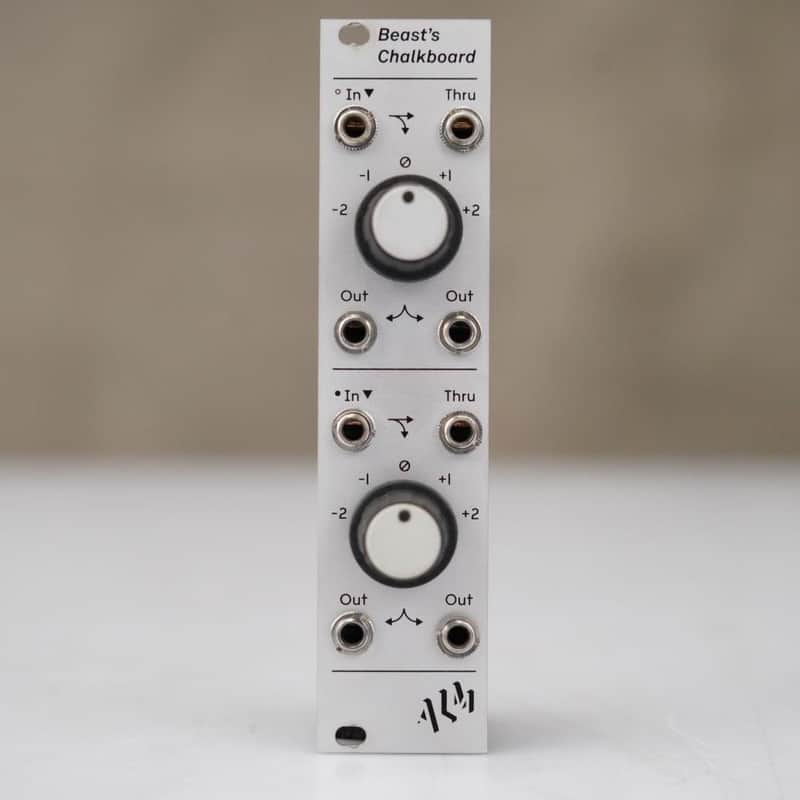

PRODUCT DESCRIPTION: This listing is for an ALM Busy Circuits Beast's Chalkboard Eurorack Synthesizer Module.

SPECS:

• Dual Octave Switching: Each of the two channels features a stepped rotary switch with a range of -2 to +2 volts, allowing for precise 5-octave transpositions (1V per step).
• Precision Voltage Adding: It functions as a high-accuracy voltage adder, perfect for sequence transposition, FM ratio adjustments, or VCO calibration.
• Flexible Normalization: The top input is normalized to the bottom channel. If no cable is patched into the second channel, it shares the first channel's input, effectively allowing you to vary the same signal across both outputs for broader range or multi-oscillator control.
• Chaining for Range: By patching the output of one channel into the input of the other, users can extend the shifting range to 9 octaves.
• I/O Options: Each channel includes a "Thru" output for the original signal and two buffered outputs for the shifted signal.
• Buffered Multiple: When used without an input, it acts as a dual 1-to-3 or single 1-to-6 buffered mult, providing stable voltage distribution.
• Dimensions: The module is 6HP wide and 22mm deep, making it highly skiff-friendly for shallow cases.
• Power Requirements: Approximately 25-30mA on both the +12V and -12V rails.

ACCESSORIES INCLUDED:

• Eurorack Power Cable
• (2) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 5" x 1" x 2"
