WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.
PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.
INVENTORY #58407
BRAND: XAOC Devices
MODEL: Batumi 1974 Quadruple LFO
FUNCTION: Eurorack Synthesizer Module

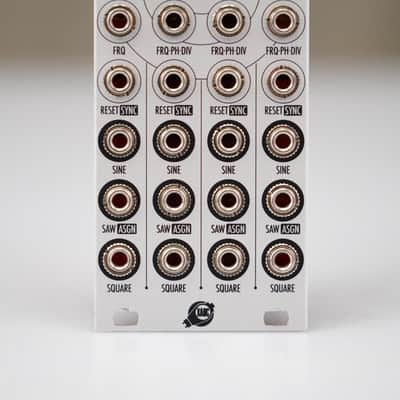

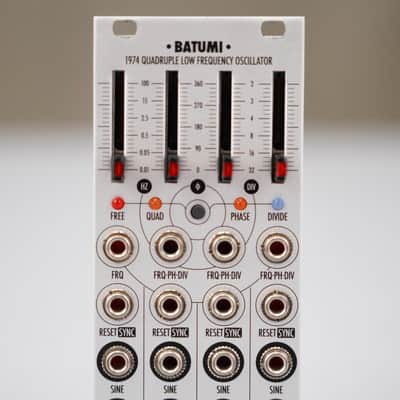

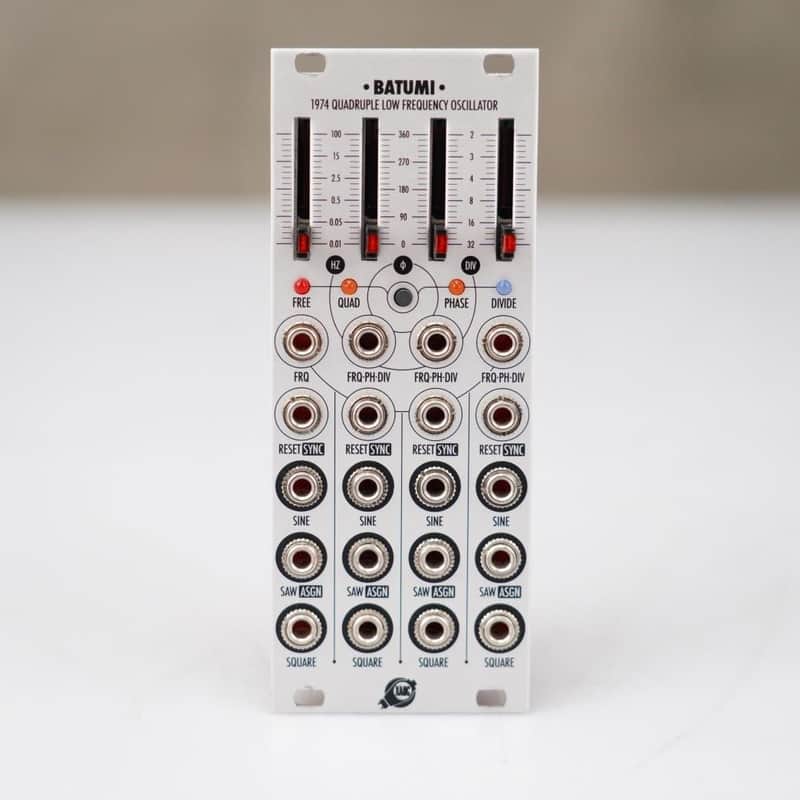

PRODUCT DESCRIPTION: This listing is for an XAOC Devices Batumi 1974 Quadruple LFO Eurorack Synthesizer Module. The XAOC Devices Batumi 1974 is a 10HP quadruple digital low-frequency oscillator (LFO) that provides four voltage-controlled channels capable of operating independently or in various synchronized modes.
SPECS:
- Four Operating Modes:
- Free: All oscillators run independently with a range of 0.01Hz to 100Hz.
- Quadrature: Each LFO is consecutively offset by 45 degrees relative to the first.
- Phase: Sliders control the phase offset of each channel relative to the master channel.
- Divide: Channels act as clock dividers based on the master channel's frequency.
- Assignable Waveforms: The third output on each channel can be set to Saw, Ramp, Triangle, or Trapezoid via jumpers on the back of the module.
- Zoom Mode: Allows for precise frequency setting through a specialized fine-tuning interface.
- Width: 10 HP.
- Depth: 45 mm, making it "skiff friendly" for shallow eurorack cases.
- Current Draw: Varies slightly by revision; original units draw approximately 45mA at +12V and 15mA at -12V, while some manuals list up to 80mA.
ACCESSORIES INCLUDED:
- Eurorack Power Cable
- (4) Eurorack Screws & Washers
UNPACKAGED WEIGHT: 1 lbs.
UNPACKAGED DIMENSIONS: 5" x 2" x 2"
