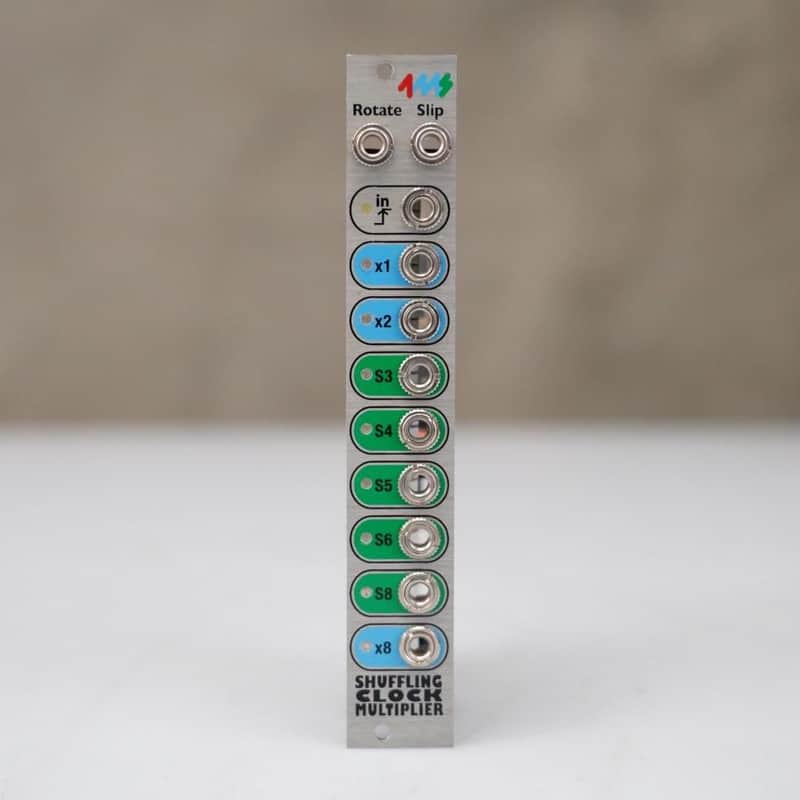

4ms SCM Shuffling Clock Multiplier Eurorack Module w/ Tiptop Stackcable #58519

WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metawork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58519

BRAND: 4ms

MODEL: SCM Shuffling Clock Multiplier

FUNCTION: Eurorack Synthesizer Module

PRODUCT DESCRIPTION: This listing is for a 4ms SCM Shuffling Clock Multiplier Eurorack Synthesizer Module. The 4ms Shuffling Clock Multiplier (SCM) is a compact Eurorack module that generates eight multiplied clock tempos from a single master input, with five outputs specifically designed for complex, "shuffled" rhythmic patterns.

SPECS:

• The SCM provides a range of clock multiplications from x1 to x8 (expandable to x32) to create evolving rhythms for percussion or modulation.
• Eight Outputs: Features three "steady" outputs (x1, x2, x8) unaffected by timing shifts and five "shuffled" outputs (S3, S4, S5, S6, S8) that use slipped or skipped pulses for swing and syncopation.
• CV Rotate: A dedicated control voltage jack that reassigns multiplication numbers across all eight jacks, allowing for dramatic rhythmic shifts during a performance.
• CV Slip: This input controls how far beats land ahead of or behind the main clock, effectively determining the amount of "shuffle" or swing.
• 4ms Shuffling Clock Multiplier (Standard): A slim 4HP module focused on core multiplication and shuffling. It can be expanded with a separate 4ms SCM Breakout module for deeper control.
• Width: 4HP (Standard) or 12HP (SCM+).
• Depth: 35mm (1.39 inches).
• Power Draw: 33mA on +12V and 4mA on -12V (Standard version).
• Maximum Input Frequency: 3kHz.
• Connectivity: Includes an ISP header for reprogramming code and a UART header for optional MIDI breakout panels.

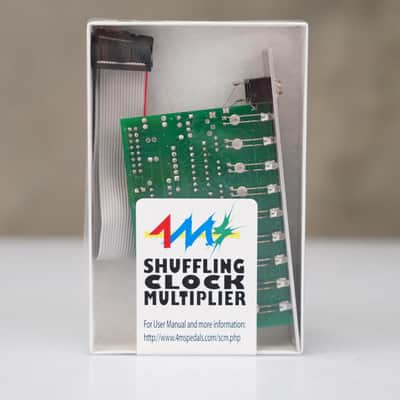

ACCESSORIES INCLUDED: This item comes as seen in photos and includes the original 4ms box.

EXTRAS INCLUDED:

• 16 Pin Eurorack Cable
• (4) Patch Cables
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 6" x 2" x 4"
