WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58490

BRAND: Hexinverter

MODEL: Mutant Bass Drum

FUNCTION: Eurorack Synthesizer Module

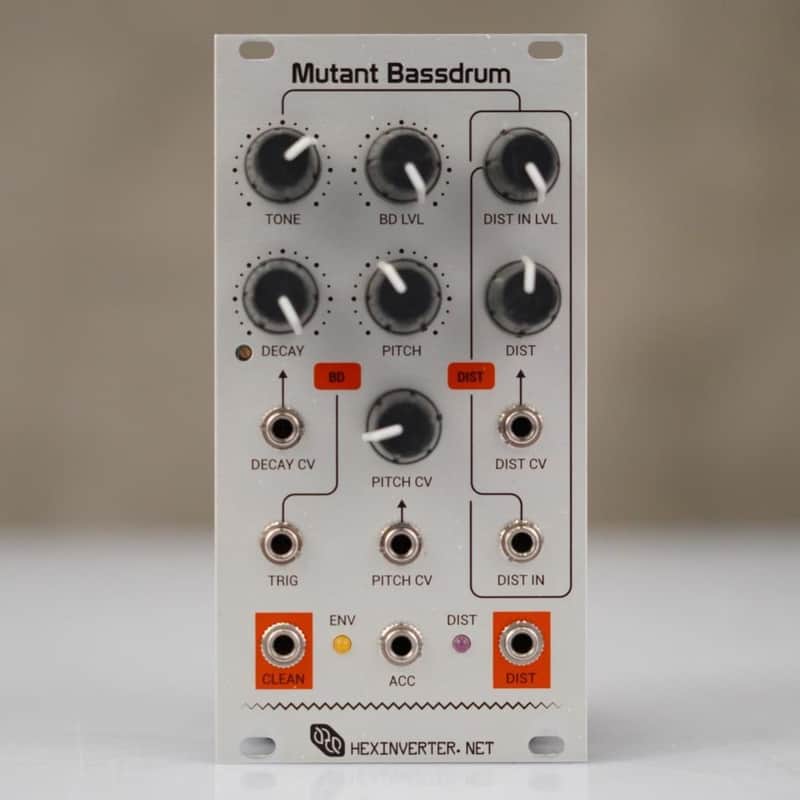

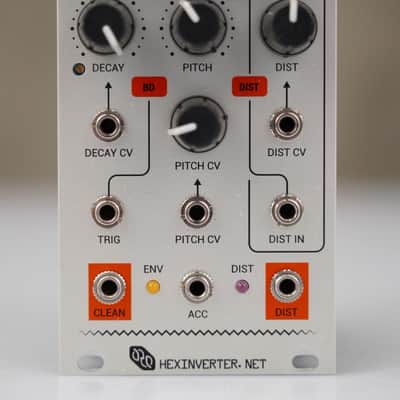

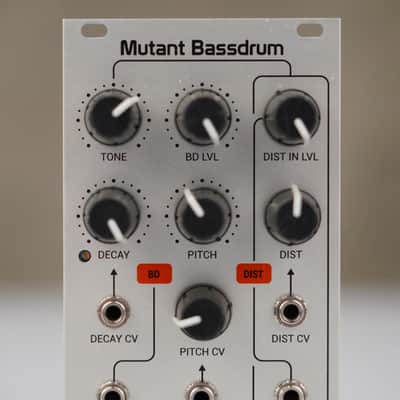

PRODUCT DESCRIPTION: This listing is for a Hexinverter Mutant Bass Drum Eurorack Synthesizer Module. The Hexinverter Mutant Bassdrum is a 13HP analog Eurorack module that reimagines the classic TR-808 kick drum circuit with integrated voltage-controlled distortion and expanded modulation.

SPECS:

• The module functions as a dual-purpose unit, acting as both an analog drum generator and a standalone distortion effect.
• 808-Style Core: Features a redesigned TR-808 bass drum circuit using low-noise op-amps to preserve the original's punch while offering modern hi-fi performance.
• Integrated Distortion: Includes a built-in voltage-controlled distortion based on the "batteryACID" circuit. It has a dedicated external input, allowing it to process other signals when the kick drum is not in use.
• Extensive CV Control: Supports voltage control over Pitch, Decay, and Distortion amount. It also features dedicated Trigger and Accent inputs for dynamic sequencing.
• Dual Outputs: Provides separate jacks for Clean and Distorted signals, facilitating complex parallel processing in a modular patch.
• Width: 13 HP
• Depth: 20mm (0.78")
• Power Consumption: +21mA (+12V) / -16mA (-12V)
• Output Level: Up to 20Vp-p modular-level signals

ACCESSORIES INCLUDED: This item comes as seen in photos and does not include any accessories.

EXTRAS INCLUDED:

• Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 5" x 2" x 3"
