WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.
PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.
INVENTORY #58491
BRAND: Hexinverter
MODEL: Mutant Hihats
FUNCTION: Eurorack Synthesizer Module

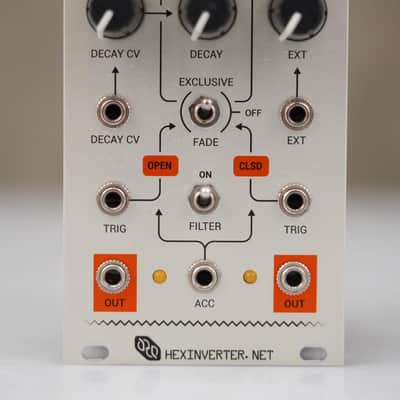

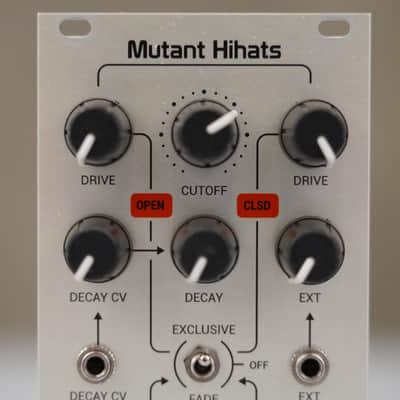

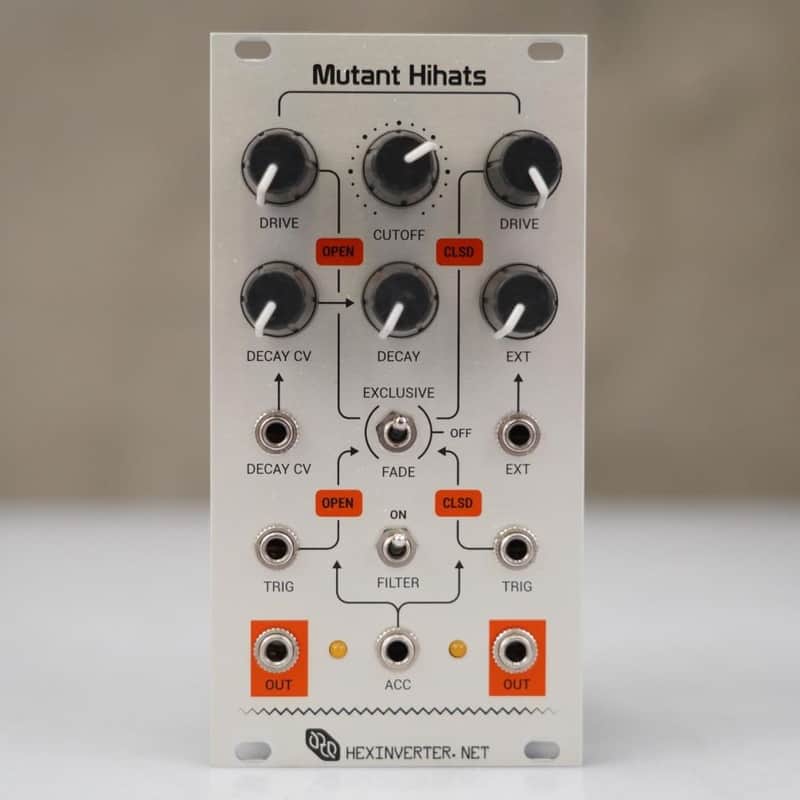

PRODUCT DESCRIPTION: This listing is for a Hexinverter Mutant Hihats Eurorack Synthesizer Module. The Hexinverter Mutant Hihats is an analog Eurorack percussion module that expands on the classic TR-808 hi-hat circuit with advanced modulation, drive, and external processing capabilities.
SPECS:
- Dual-Voice Synthesis: Capable of generating both open and closed hi-hat sounds simultaneously with independent outputs for each.
- External Audio Input: Allows users to replace the internal noise generator with any external signal, such as a different noise source or oscillator, to synthesize unique metallic textures.
- Integrated VCA Drive: Features dedicated distortion controls for each channel, ranging from soft metallic saturation to heavy, crunchy overdrive.
- Resonant Bandpass Filter: Includes a switchable filter with a dedicated cutoff control to further shape the frequency response of the hi-hats.
- Exclusive Switch: A three-way selector that determines how the open and closed sounds interact when triggered at the same time, offering options for classic choke, no choke, or fade.
- Width: 13HP.
- Depth: 20mm (approximately 0.78 inches).
- Power Consumption: +12V/23mA and -12V/17mA.
- CV Inputs: Includes four CV inputs for controlling parameters like Decay (with attenuator) and Filter Cutoff.
- Outputs: Two 1/8" (3.5mm) TS outputs for open and closed voices.
ACCESSORIES INCLUDED:
- Eurorack Power Cable
- (4) Eurorack Screws & Washers
UNPACKAGED WEIGHT: 1 lbs.
UNPACKAGED DIMENSIONS: 5" x 2" x 3"
