WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58362

BRAND: Livewire Electronics

MODEL: Audio Frequency Generator

FUNCTION: Eurorack Synthesizer Module

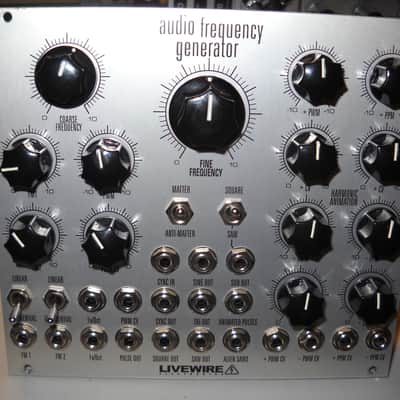

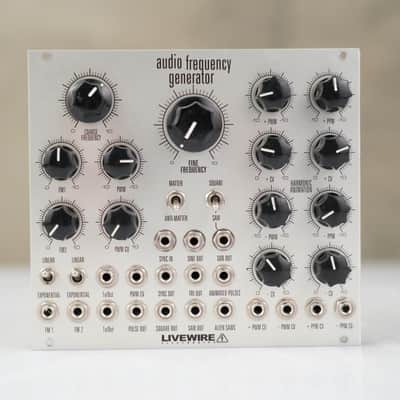

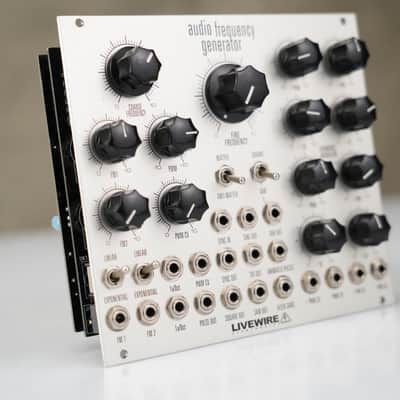

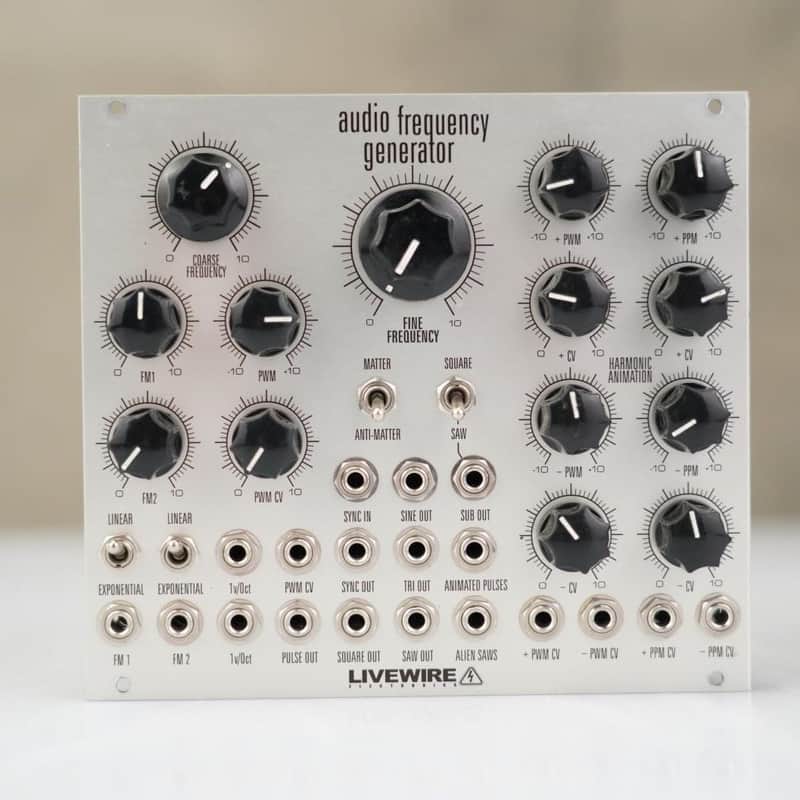

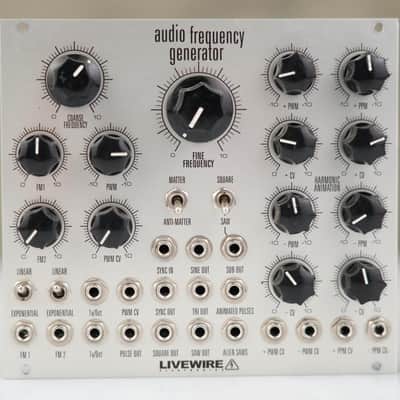

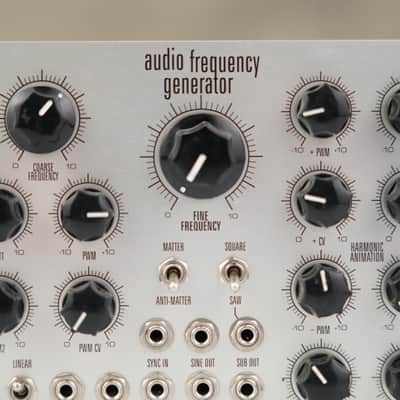

PRODUCT DESCRIPTION: This listing is for a Livewire Electronics Audio Frequency Generator Eurorack Synthesizer Module. The Livewire Audio Frequency Generator (AFG) is a vintage-style analog voltage-controlled oscillator (VCO) designed for Eurorack modular synthesizers. Known for its ability to produce complex, harmonically rich waveforms, it functions as both an oscillator and a low-frequency oscillator (LFO).

SPECS:

• Simultaneous Outputs: It offers 8 simultaneous waveform outputs, with a total of 27 distinct waveforms possible through various settings.
• Harmonic Animation: This dedicated section generates unique "Animated Pulse" and "Alien Saw" waveforms by modulating the harmonic content of the top and bottom sides of the wave separately.
• Waveform Modes: Users can switch between "Natural" and "Laboratory" sine wave modes, and a "Matter/Anti-Matter" switch alternates between two different sets of waveforms for all outputs.
• Extensive CV Control: It features 9 control voltage (CV) inputs with dedicated attenuators, along with 2 frequency modulation (FM) inputs switchable between linear and exponential curves.
• Sub-Oscillator: Includes a sub-octave generator with switchable square or sawtooth waveforms
• Width: 28HP (Horizontal Pitch).
• Depth: Approximately 56mm; newer versions feature a shallower profile to fit most Eurorack enclosures.
• Current Draw: 120 mA on both the +12V and -12V rails.
• Polyphony: Monophonic (1 voice).

ACCESSORIES INCLUDED:

• (2) 16 Pin Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 2 lbs.

UNPACKAGED DIMENSIONS: 5" x 4" x 6"
