WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58389

BRAND: TipTop Audio

MODEL: Z-DSP VC Digital Signal Processor

FUNCTION: Eurorack Synthesizer Module

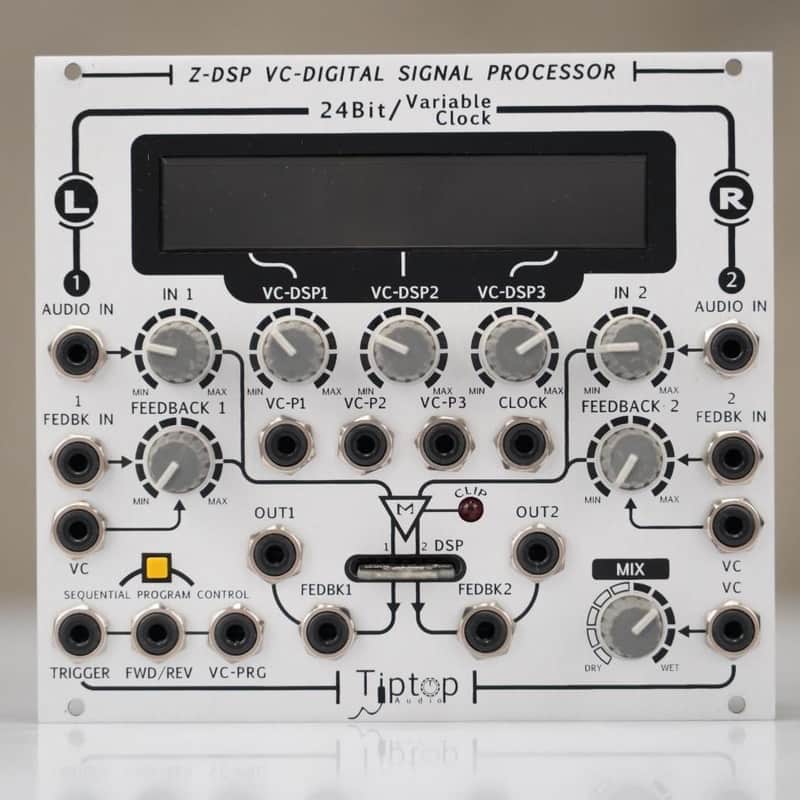

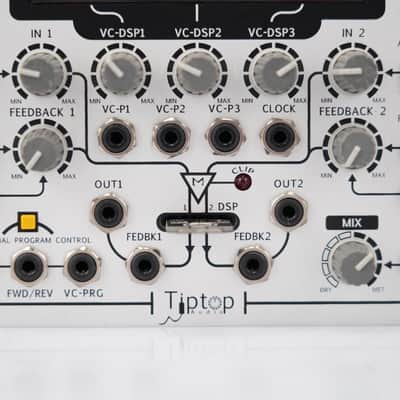

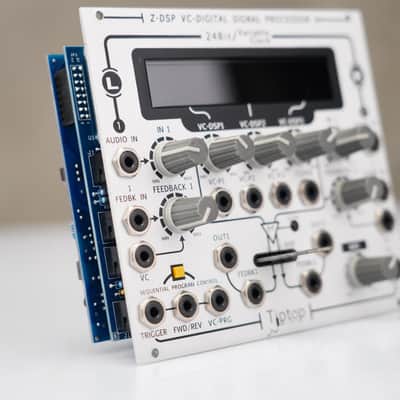

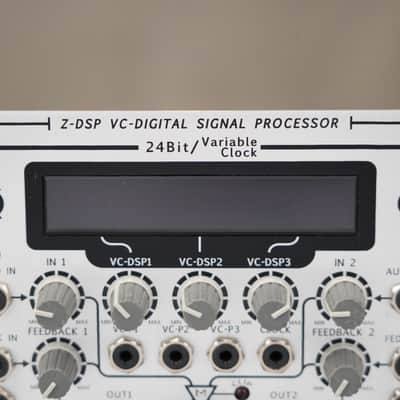

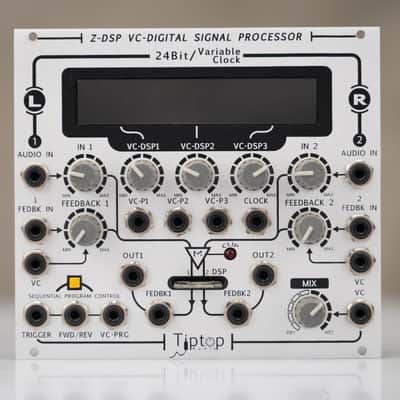

PRODUCT DESCRIPTION: This listing is for a TipTop Audio Z-DSP VC Digital Signal Processor Eurorack Synthesizer Module. The TipTop Audio Z-DSP VC Digital Signal Processor is a cartridge-based stereo digital signal processing platform for Eurorack synthesizers. It features a stereo engine with 24-bit sampling and 15kHz bandwidth, allowing users to swap effects algorithms instantly using specialized cartridges.

SPECS:

• Interchangeable Cartridges: Operates as an open-source platform where effects are loaded via physical cards. Standard units often include the "Halls of Valhalla" (reverb) and "Dragonfly Delay MKII" cartridges.
• Voltage Control (VC): Offers extensive CV inputs for digital parameters, dry/wet mixing, stereo feedback, and program switching.
• Clocking Input: Features a unique dedicated clocking input for the DSP chip, allowing users to "bend" algorithms and manipulate audio in ways computer plugins cannot.

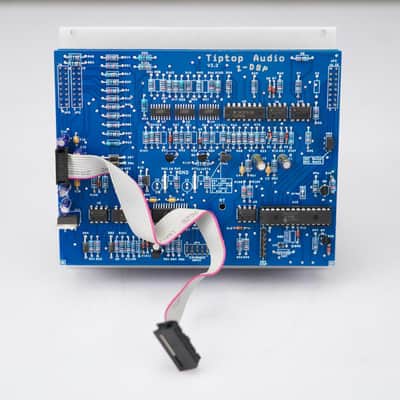

• Updated Circuitry (NS Version): The current "NS" (New Series) model features redesigned analog circuitry for a lower noise signal path, reduced distortion, and improved immunity to power supply noise.
• Programmability: Advanced users can create their own effects using the NumberZ programmer and the FV-1 DSP chip assembly language
• Format: Eurorack module.
• Width: 28 HP.
• Depth: 25mm.
• Power Usage: +12V @ 200mA and -12V @ 87mA.
• Sampling: 24-bit resolution with 15kHz bandwidth.

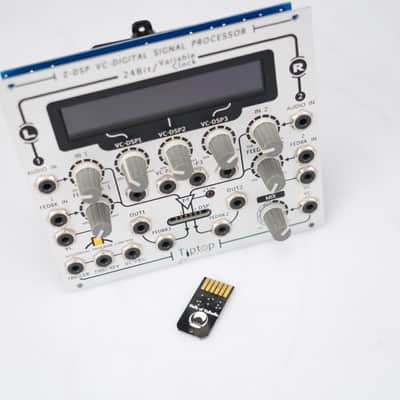

ACCESSORIES INCLUDED: This item comes as seen in photos and includes a Halls Of Valhalla DSP Card:

• Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 5" x 3" x 6"
