WORKING CONDITION: Excellent. This module tests perfectly within an existing Eurorack system.

PHYSICAL CONDITION: Excellent: All metalwork, knobs, power pins, and iO jacks are in excellent physical condition.

INVENTORY #58481

BRAND: Make Noise Music

MODEL: Analog Memory

FUNCTION: Eurorack Synthesizer Module

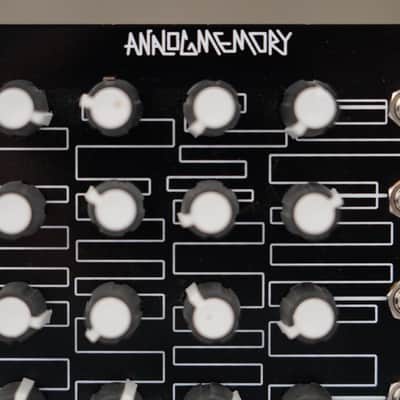

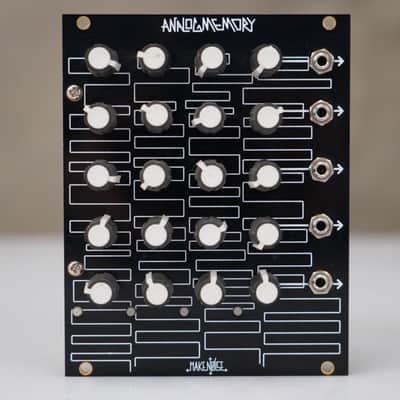

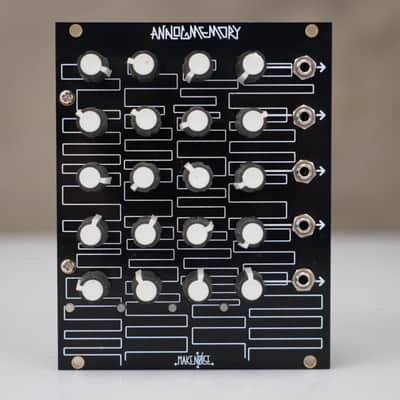

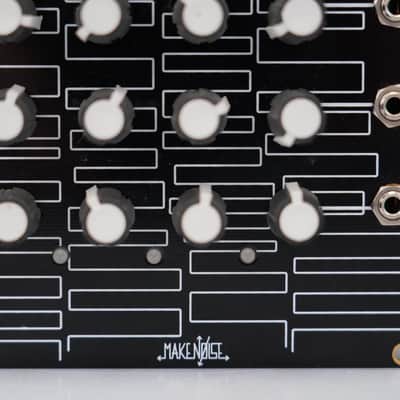

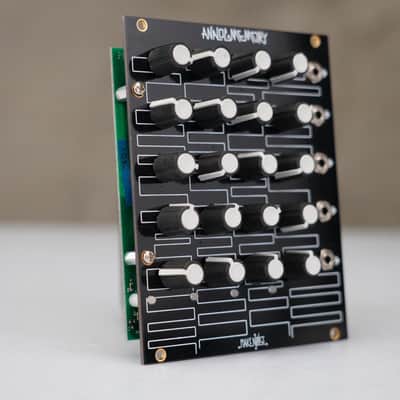

PRODUCT DESCRIPTION: This listing is for a Make Noise Music Analog Memory Eurorack Synthesizer Module. The Make Noise Analog Memory is a retired Eurorack controller module designed to store and recall control voltage (CV) values using unique passive technology. It must be paired with the Make Noise Pressure Points module to function, as it acts as an expansion that adds non-volatile storage to the touch controller's interface.

SPECS:

• The module uses "Mechanically Orbited Carbon" (MOC RAM) technology, which allows it to store data without power and retain it for millions of hours.
• Storage Capacity: Each module stores up to 20 control voltage values organized in 4 columns of 5 values.

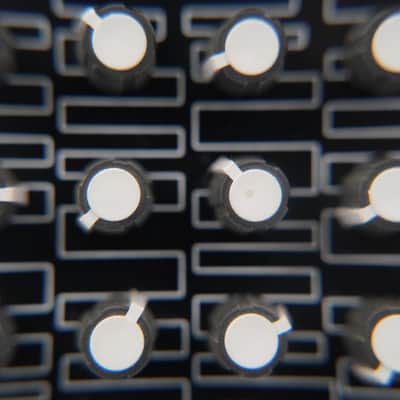

• Interface: Features 20 soft-touch knobs with colored indicator lines, allowing users to see stored values even when the system is powered off.
• Form Factor: Occupies 20HP of horizontal pitch in a Eurorack case.
• Power Consumption: Consumes a minimal 20mA @ +12V.
• Compatibility: Designed to connect directly to Make Noise Pressure Points; it can also integrate with the Make Noise BRAINS module for sequential memory access.
• Connection: Uses a flat grey "EXPAND" cable to connect to the "EXPND" header on the back of a Pressure Points module. PLEASE NOTE: THIS CABLE IS NOT INCLUDED IN THE SALE OF THIS MODULE.
• Expansion: Up to three Analog Memory modules can be connected to a single Pressure Points to create larger data storage systems.
• Outputs: All outputs are buffered, meaning they can drive a passive 4-way multiple (mult) without signal drop or loading effects.

ACCESSORIES INCLUDED:

• Eurorack Power Cable
• (4) Eurorack Screws & Washers

UNPACKAGED WEIGHT: 1 lbs.

UNPACKAGED DIMENSIONS: 5" x 2" x 4"
