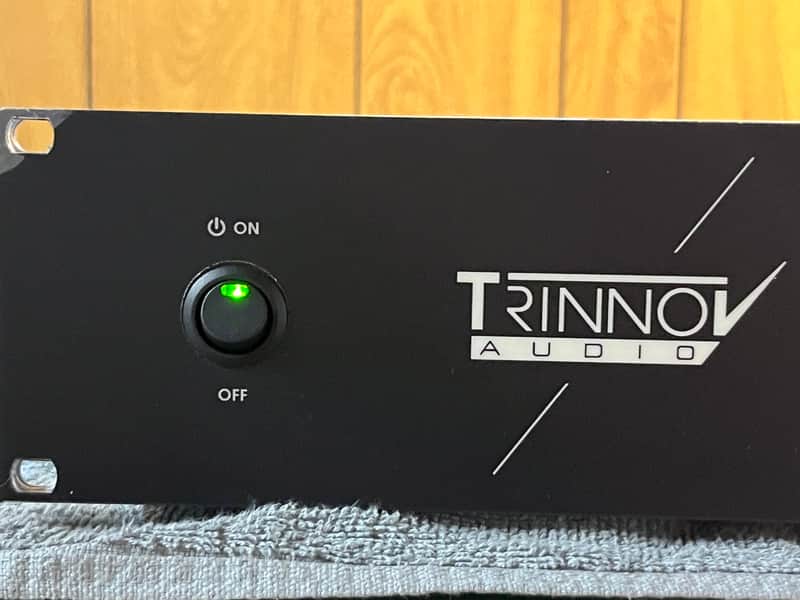

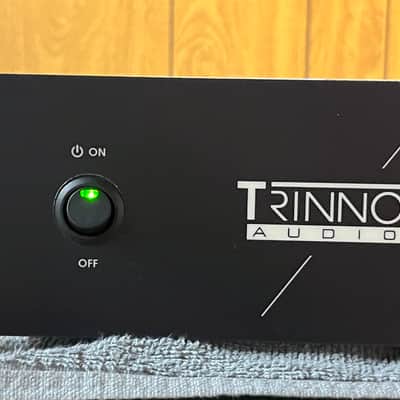

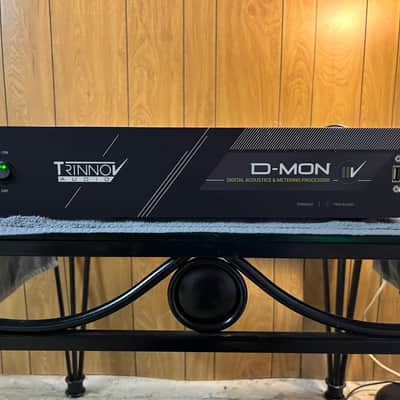

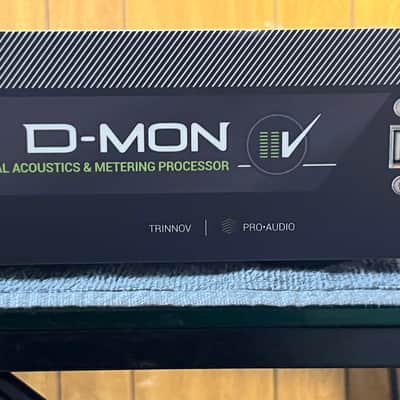

Trinnov D-Mon 2023

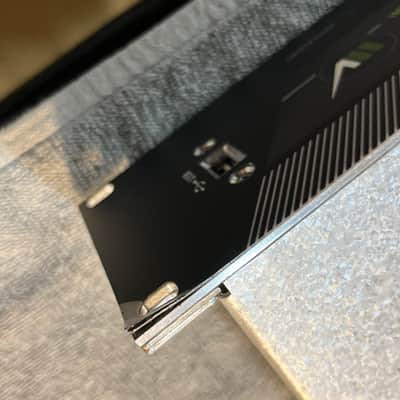

Bought this for a project that never got off the ground. Moving out of state soon and won’t have need for it any more. This is a fully functional piece of gear, with only minor cosmetic imperfections on the front where typical rack rash occurs. Imperfections are pictured.

The following info and specs were copied from the manufacturer’s website

The D-MON Series is a new range of Digital Monitoring Processors, with the acclaimed Optimizer room correction and EUCON integration for AVID Pro Tools systems. The D-MON will fit exactly into your studio configuration. Whatever your speaker sets may be, whether your mixes are in stereo, 5.1, 7.1 or even Dolby Atmos up to 9.3.6.

Specs:

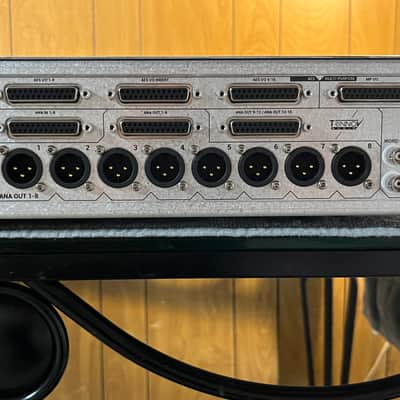

DIGITAL AUDIO CONNECTIVITY

• AES3 Outputs (DB25) Tascam Pinout: x16
• AES3 Outputs (DB25) Tascam Pinout: x16
• Wordclock (BNC): x1 Input, x1 Output

ANALOGUE AUDIO CONNECTIVITY

• Balanced inputs (DB25): x8
• Balanced outputs (DB25): x16
• Balanced outputs (XLR): x8

MULTI PURPOSE I/O (DB25)

• General purpose control inputs: x2
• General purpose control outputs: x1
• Talk Back / Listen Back inputs: Balanced inc. 36V Phantom power
• Headphones output: x1 unbalanced
• MIDI: x1 Input, x1 Output

SWITCHING & SUMMING

• Sources: 8 Cues/TB/LB
• Monitor Selection: Programmable presets & profiles
• Switching: Any input, bus or Optimizer® out to any physical out
• Summing: 18 in / 16 bus

AUDIO PROCESSING

• Native resolution (up to 12 channels): 96kHz
• Native resolution (above 12 channels): 48Khz
• Per channel: 31 band EQ, FIR EQ, gain, polarity and delay
• Per channel delay setting: Meters / Milliseconds / Frames
• Global delay setting: Meters / Milliseconds / Frames

AUDIO PERFORMANCE

• ADC Resolution / Sampling Rate: 24 Bits/96 kHz
• DAC Resolution / Sampling Rate: 24 Bits/96 kHz
• A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
• D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
• Processing Sampling Rate: Native, up to 96kHz
• Processing Resolution: 64 bits floating point
• Clock / Jitter: attenuation > 50 dB Above 100Hz

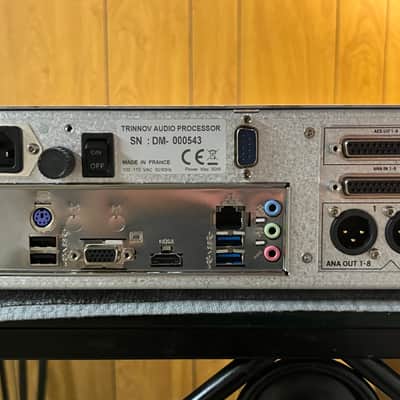

POWER SUPPLY

• Power requirement: 240V / 110V - 50 / 60Hz (Manual Switch)
• Power consumption: 60W
• Mains fuse: 1A slow blow
• Analogue section PSU: Dedicated linear PSU with toroidal transformer
• Digital section PSU: Switch-mode PSU

WEIGHT & DIMENSIONS

• Dimensions (W x H x D) mm: 444 x 89 x 405
• Dimensions (W x H x D) inches: 17 1/2" x 3 1/2" x 16"
• Shipping box dimensions (W x H x D) cm: 68 x 56 x 21
• Weight: 9.60kg / 21.1 lbs
• Shipping weight / volume: 12.50 kg / 0.08 M3
• Rackmounting: 2U - Fixed Rack Ears
