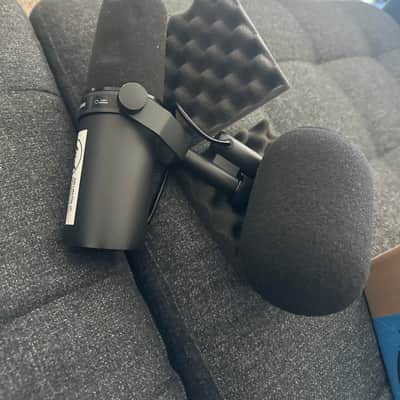

Used. Mint condition. Studio time only.

The Model SM7B dynamic microphone has a smooth, flat, wide-range frequency response appropriate for music and speech in all professional audio applications. It features excellent shielding against electromagnetic hum generated by computer monitors, neon lights, and other electrical devices. In addition to its standard windscreen, it also includes the A7WS windscreen for close-talk applications.

The SM7B is an outstanding choice for the following applications:

• Recording Studio—Instrumental and Vocal
• Location Recording
• Motion Picture and Television Scoring
• Television, Talk Shows, and News Desks
• Radio Announcing and Production
• Narration

  SPECIFICATIONSType

Dynamic (moving coil)

SM7B Frequency Response

50 to 20,000 Hz

Polar Pattern

Cardioid

Output Impedance

150 Ω

Sensitivity

(@ 1 kHz, open circuit voltage)

-59 dBV/Pa[1] (1.12 mV)

Hum Pickup

(typical, at 60 Hz, equivalent SPL/mOe)

11 dB

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Weight

0.764 kg (1.69 lbs)

[1] 1 Pa=94 dB SPL

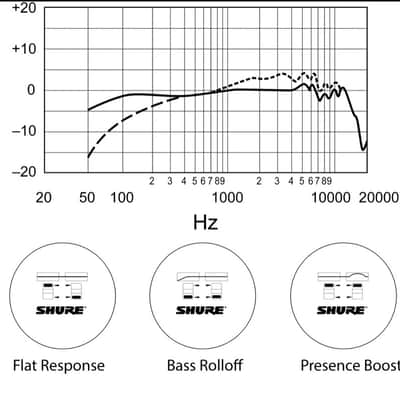

Typical SM7B Frequency Response

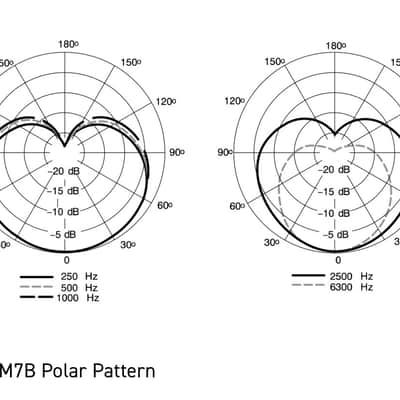

Typical SM7B Polar Pattern

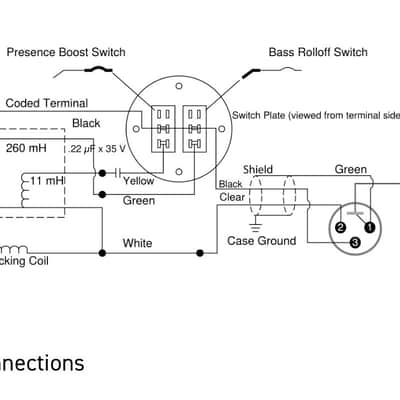

Internal Connections

Overall Dimensions
