Description

The Seymour Duncan SFX-01 Pickup Booster was the first effects pedal designed by pickup guru Seymour Duncan, created specifically to work together with your guitar’s pickups for optimum gain and resonance across a wide range of tonal applications. Whether used to push an amp’s input harder or as a clean volume boost, the Pickup Booster delivers transparent performance suitable for virtually any musical style.

By rotating the gain control, players can add pure, flat-EQ gain from 6dB to 25dB. The onboard Resonance Switch lowers the resonant peak of single-coil pickups, giving them the fuller, thicker character of a vintage or high-output humbucker while maintaining clarity and articulation.

Built with fully discrete Class A circuitry and true bypass switching, the SFX-01 is housed in a rugged heavy-duty steel chassis designed to withstand the rigors of the road.

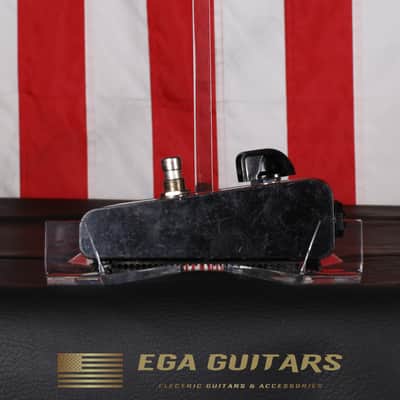

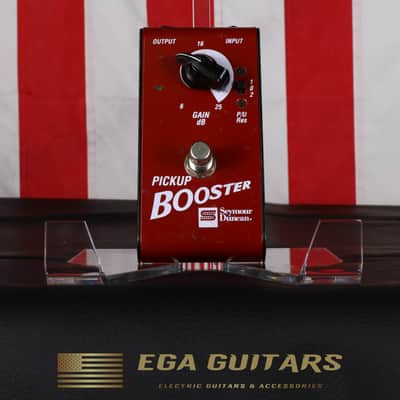

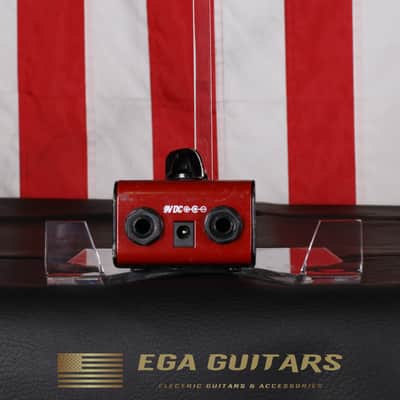

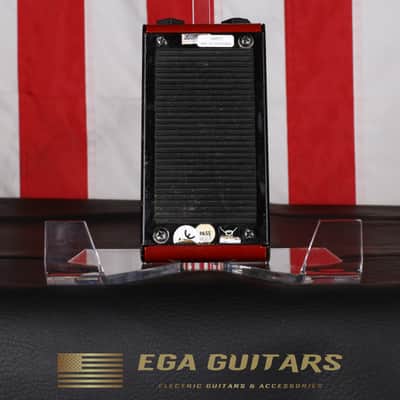

Item Shown: Seymour Duncan SFX-01 Pickup Booster
Model #: 11995-01
Case/Box: None

Product Specs

Body

• Heavy-duty 1.6 mm steel chassis

Electronics

• Gain range: 6dB to 25dB
• Pickup Resonance Switch for single-coil to humbucker-style tones
• Fully discrete Class A circuitry
• True bypass switching
• Noise: -120 dBV (referred to input with gain set at 25dB)
• Distortion: < 0.1%
• Input impedance: 500K (when effect is "on"), Open (when effect is "off")
• Output impedance: 5K ohms
• Current consumption: 3.5mA @ 9V (when LED is "on"), 1.5mA @ 9V (when LED is "off")

Hardware

• Compatible with PSA120S and 1Spot9v power adapters

Miscellaneous

• Works with humbuckers or single-coils
• Power: DC 9-12 V battery, or regulated DC adapter
• Dimensions: 2.5" x 5" x 2" (W x L x H)
• Weight: 0.8 lb. without battery, 0.9 lb. with battery
• For proper Resonance Switch operation, unit must be first in the signal chain using passive pickups and a standard guitar cable
