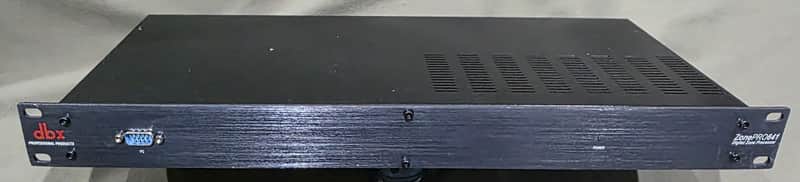

DBX  Zone Pro 1641 Digital Zone Processor


Fully working 100%.

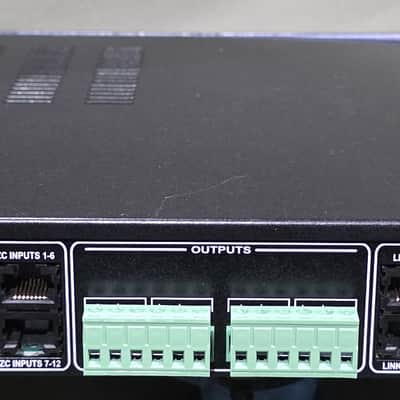

Comes with Phoenix rear terminal connectors as well as AC cable.


Fully tested with ZonePro Designer 3.3 software for proper networking operations.

Features:
Advanced Feedback Suppression (AFS™)

  • Autowarmth®
  • Auto Gain Control
  • Compression
  • Limiting
  • Noise Gating
  • Notch Filtering
  • Bandpass and Crossover Filters
  • Parametric EQ
  • Security Lockout
  • Wall Panel Control
  • RS-232 Control
  • Windows® GUI
  • IEC, UL and CSA Approvals

Specifications

Input(6 total) (2) Switchable line or mic inputs (4) RCA Source

Input ConnectorsEuroblock (Line and Mic) RCA (Source)

Input TypeElectronically balanced/RF-filtered

Input Impedance50k ohm balanced, >75k ohm unbalanced

Max Input+20dBu Mic/Line, +12dBu RCA

CMRR>40dB, typically >55dB @ 1 kHz

Mic Preamp gain30 to 60dB

Mic Preamp Equivalent Input Noise (EIN)<-118dB

Mic Preamp Phantom Power15V

Output4 total

Output ConnectorsEuroblock

Output TypeElectronically Balanced, RF Filtered

Output Impedance120 ohms balanced, 60ohm unbalanced

Max Output+20dBu

A/D Converterdbx Type IV™ conversion system

A/D Dynamic Range(line) >113 dB, A-weighted, >110 dB unweighted

Type IV Dynamic Range>119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW

Digital OutputRCA 24-Bit oversampling

Digital Output Dynamic Range>114 dB A-weighted, 110dB unweighted

Sample Rate48kHz

D/A Dynamic Range112 dB A-weighted, 109dB unweighted

Dynamic Range>109 dB A-weighted, >106 dB unweighted

THD+Noise0.003% typical at +4dBu, 1kHz, 0dB gain

Frequency Response20Hz - 20kHz, +/-0.5dB

Interchannel Crosstalk>80dB typical

Propagation Delay0.6 msec

Operating Voltage100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz

Power Consumption29 W

Unit Weight6.8 lbs.(3.1 kg)

Shipping Weight8.8 lbs. (4.0 kg)

Dimensions1.75” H x 5.75” D x 19” W

Safety Agency CertificationsUL 600065, IEC 60065, EN 55013, E60065


Thanks For Looking !  ! !

Mis en ligneil y a 24 jours
ÉtatTrès bon (occasion)
Le matériel en état « Très Bon » fonctionne bien mais a quelques dommages cosmétiques.En savoir plus
Marque
Modèle
  • ZonePRO 641 6x4 Digital Zone Processor
