XONE:PX5

The Allen & Heath XONE:PX5 is a 4+1 channel analogue mixer with built-in digital effects and a premium USB audio interface. Combining the signature warm analogue Xone sound with class-leading digital connectivity, the XONE:PX5 breathes life and soul into electronic music performance. Whether you're blending tracks, sculpting soundscapes, or integrating a full digital workflow, this mixer is engineered to serve a wide range of DJs and electronic musicians. No matter what your mixing style, the XONE:PX5 combines a modern approach to DJing with all the tools required for creating your own individual sound.This is great

<div class="youtube-video-container"><iframe width="560" height="315" src=" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe></div>

Analogue Signal Path & Channel Architecture

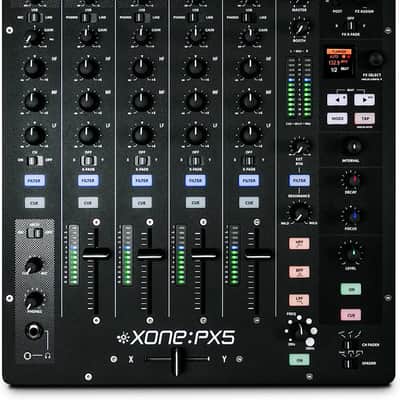

The XONE:PX5 is a 4+1 channel mixer, equipped with the legendary Xone filter, 3-band EQ on all channels, and an intuitive layout. On top of its four fully featured phono/USB/line channels, it has a flexible mic/aux channel with XLR and ¼" jack connectors and full 3-band EQ. If you don't perform with mics, the additional inputs allow this channel to be used as an extra stereo music source or USB Return channel. The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to an Innofader Pro 2 for ultimate crossfader performance. At the heart of the analogue signal chain sits the iconic Xone VCF filter — the original and best, a legend in the DJ booth that none of its imitators come close to matching. The filter includes HPF, BPF, LPF, resonance control and frequency sweep, plus the option to route the Aux channel and External Return to the filter.

Effects, FX Routing & External Hardware Integration

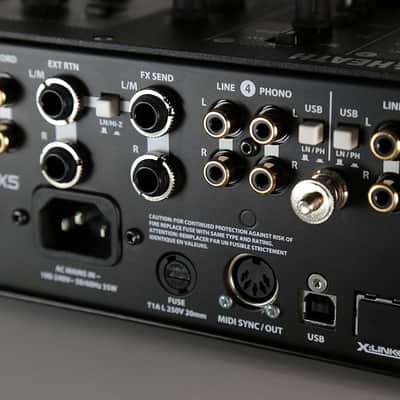

The XONE:PX5 features the Xone:Xcite FX suite, specifically tailored for DJ performance. The array of spectral delays, resonators, gritty reverbs and more is accessed through familiar, hands-on controls for instant, instinctive operation, making it easy to add energy and excitement to a track or create entire FX soundscapes. A hybrid FX mode combines the internal and external send & return FX for more advanced FX processing. The versatile Send/Return feature allows for the connection of external FX hardware with both Send/Return and Master Insert mode connections (Line or Hi-Z), equipping the XONE:PX5 for numerous enhanced setup scenarios. Each channel has its own dedicated send control for external FX processing and can also be routed to the internal Xone:FX engine.

Digital Connectivity, MIDI & Controller Integration

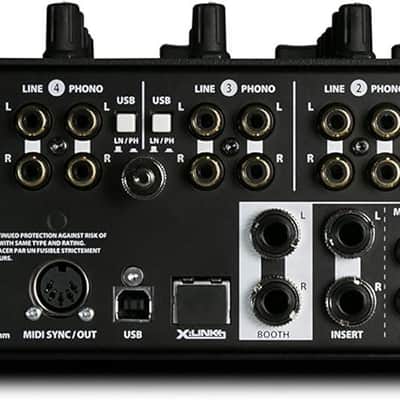

The XONE:PX5 incorporates a high-specification 20-channel 96kHz, 24-bit USB soundcard, allowing it to be seamlessly integrated into digital DJ workflows. The soundcard supports DVS control of Native Instruments' TRAKTOR SCRATCH PRO 3 DJ software — plug in your PC/Mac and use the TRAKTOR SCRATCH PRO 3 control media to intuitively control and scratch with digital audio files stored on your computer. The XONE:PX5 features an integrated MIDI clock engine which can send start/stop messages to external equipment. The 5-pin MIDI Sync/Out connection integrates external software/hardware instruments such as drum machines and synthesizers, which can be connected via ¼" jack input connections. For the ultimate DJ setup, connect Xone:K series controllers to the XONE:PX5 over X:Link for hands-on control over your software, saving USB ports on your computer.

Why We Love This

Our gear experts are drawn to the XONE:PX5 because it respects the integrity of their sound. The legendary Xone VCF filter — with HPF, BPF, LPF, resonance control, and frequency sweep — delivers a warmth that no imitation has matched. Beyond the analogue soul, the Xone:Xcite FX suite and hybrid FX mode open up creative possibilities from subtle texture to full soundscapes, while deep MIDI integration keeps everything locked in sync with external instruments and hardware.

Top Ten Features

• Legendary Xone VCF filter with HPF, BPF, LPF, resonance control, and frequency sweep
• Xone:Xcite FX suite featuring spectral delays, resonators, gritty reverbs, modulators, flangers, and distorters
• Hybrid FX mode combining internal and external send & return FX
• 20-channel 24-bit/96kHz USB2 soundcard for studio-grade audio
• TRAKTOR SCRATCH PRO 3 certified DVS support
• 3-band isolator EQ on all channels
• Dedicated per-channel send control for external FX hardware
• Integrated MIDI clock engine with 5-pin MIDI Sync/Out
• X:Link connectivity for Xone:K series controllers
• Innofader Pro 2 crossfader compatibility with three switchable curve settings
