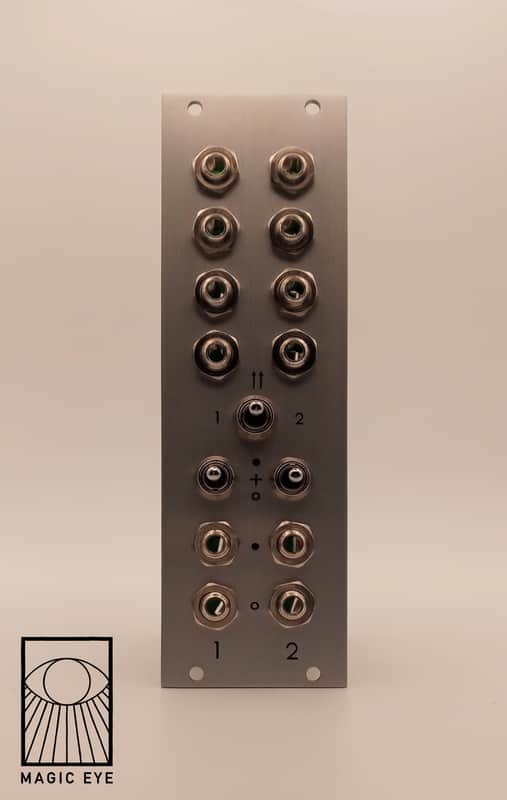

Dual Buffered Mult/Switch/Mixer Eurorack

MELAMINE

- A versatile, two channel switching mult with buffered inputs/outputs.

- 2 inputs per channel, with the option to switch between each input source, or sum both together.

- 4 outputs per channel plus an option to merge the outputs, giving a total of 8 possible split points from a single source

- Made with active buffers throughout and precise supporting circuitry, preserving voltage/pitch integrity

- Featuring Switchcraft 35PM1 connectors, TL074 opamps, 1% and .1% tolerance resistors, and aluminum polymer capacitors

- Anodized aluminum alloy front panel

INPUT SECTION:

Each channel (1 and 2) has two inputs and can be switched/configured individually

● "A" is selected in the up toggle position. In this setting, only A is sent to the outputs

○ "B" is selected in the down toggle position. In this setting, only B is sent to the outputs

+ "SUM" is selected in the center toggle position. The sum of both A and B are sent to the outputs

OUTPUT SECTION:

Each channel (1 and 2) has four outputs. The output signals are based on the input configuration(s)

↑↑ "DEFAULT" is selected in the center toggle position. Each channel's input configurations are sent to the four outputs above it

1 "MERGE 1" is selected in the left toggle position. The input configuration of channel 1 is sent to all eight outputs

2 "MERGE 2" is selected in the right toggle position. The input configuration of channel 2 is sent to all eight outputs

SPECIFICATIONS:

- 8HP

- 4 inputs/8 outputs

- 10 pin +/-12V

- 50mm depth
