HK Audio LINEAR-5-MK2-308-LTA Linear 5 MK II Series 1200-Watt 3x8-Inch LTS Mid/High Active Multi Cell Tran Network

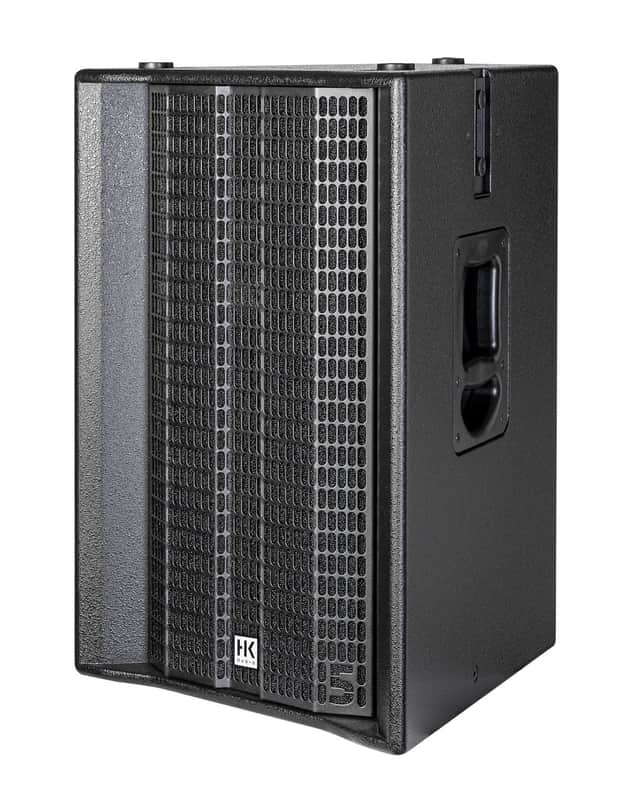

LINEAR 5 MK II 308 LTA is a highly efficient, scalable, and economical long-throw active mid/high unit for large, long, and wide rooms as well as open-air spaces. It fills the gap between the classic point source PA and the line array in the form of a compact, horn-loaded direct sound source.

The LINEAR 5 MK II 308 LTA with 1-inch HF-Driver and Multicell Transformer (MCT) offers unprecedented sound coverage depth without treble drop-off and with compact dimensions. Balanced and powerful sound can reach up to 40 meters and up to 3000 people without having to use delay lines. The bass and mids are reproduced crisply and richly by three vertically arranged, horn-loaded 8-inch woofers.

Precisely tuned presets for clustering and head stacking are available directly on the speaker. Thanks to the flexible design variants, the system can grow as required. Even with just one LINEAR 5 MK II 308 LTA mid/high unit (per side), the sound reaches much greater depths. Cluster, headstack, or headstack cluster setups can be used to achieve coverage patterns with more width and depth.

LINEAR 5 MK II 308 LTA is equipped with PowerCon connectors and PowerCon Link, which simplifies wiring and saves cable material.

Technical Data

• Max. SPL @ 10% THD: 133 dB half space (100 Hz – 12 kHz averaged).
• Max. SPL Peak @ 10% THD: 138 dB half space.
• Frequency response +/-3 dB: 105 Hz – 17 kHz.
• Frequency response -10 dB: 98 Hz – 19 kHz.
• Power amp output (RMS/Peak): 600 / 1,200 W.
• Amplifier type: Class D – bi-amped.
• LF driver: -
• Low-/Mid speaker: 3 x 8", 1.5" voice coil.
• HF driver: 1" Compression driver, 1.7" voice coil.
• Horn directivity: 60° x +5/-25° MCT horn.
• Active crossover frequency: 1.6 kHz FIR X-over with 60 dB/oct.
• Maximum input level: +20 dBu.
• Analog inputs: 1 x XLR combo balanced.
• Analog Thru: 1 x XLR balanced.
• DSP Out: 1 x XLR balanced.
• Network port: Ethercon RJ45, 1 x In, 1 x Thru.
• Filter presets: Single, Cluster, Headstack, Remote.
• Remote software: DSP CONTROL (Windows, Mac OS).
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, and Mute.
• Sample rate: 48 kHz.
• System latency: ≤ 2.9 ms.
• Mains connector: 1 x Powercon NAC3 In, 1 x Powercon NAC3 Thru, 100–240 V.
• Power consumption: 1 A / 100–240 V nominal according to EN 62368-1.
• Angles up (Monitor angle): -
• Pole mount: MonoTilt 0°.
• Rigging points: 5 x M8 (AP-8).

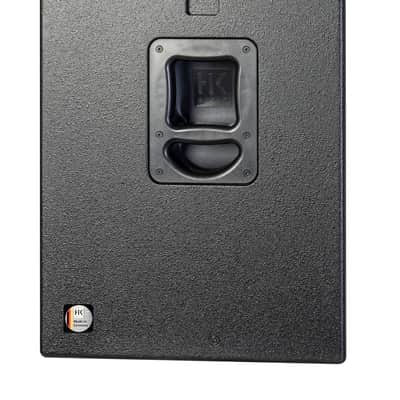

• Carrying handles: 2 x HK Audio MultiGrip.
• Housing: Birch multiplex.
• Finish: Black acrylic enamel.

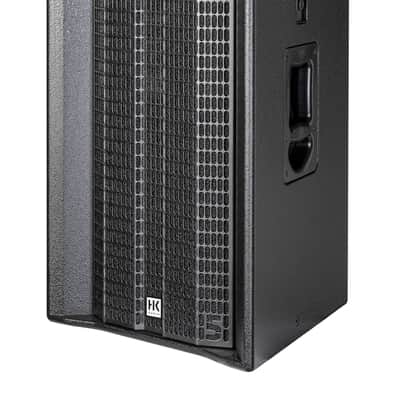

• Front grille: 2 mm metal grille backed with black acoustic foam.
• Dimensions (WxHxD): 44 x 68 x 46 cm / 17-21/64 x 26-49/64 x 18-9/64".
• Weight: 25 kg / 55.1 lbs.

Special Note B-Stock

• This item is considered "B-Stock."
• B-Stock items are new instruments that did not get an A+ in QC.
• B-Stock is the closest to a new condition. There are very small blemishes categorized as “an inch or less”. Many times, these instruments are like new.
• They usually have minor cosmetic blemishes; none of these issues will affect overall playability.
