Pickering XSV/4000 Cartridge with D4000 Stylus & Pickering AS-2SPS Headshell

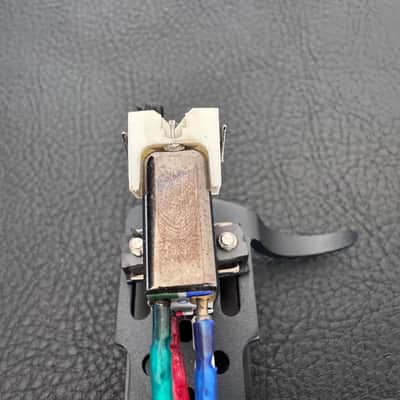

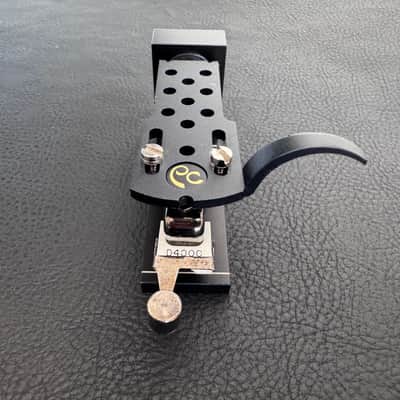

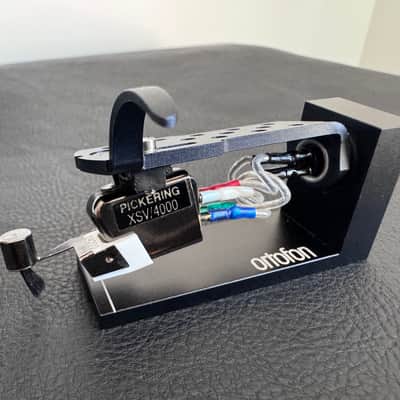

Pickering XSV/4000 Cartridge with D4000 Stylus mounted on a black Pickering headshel in excellent condition.

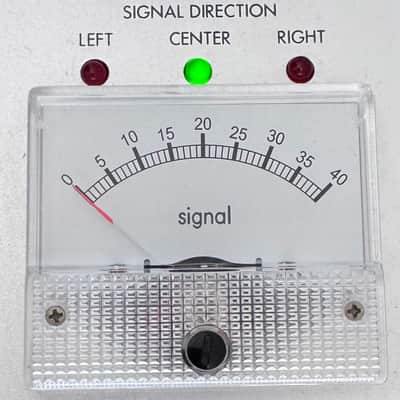

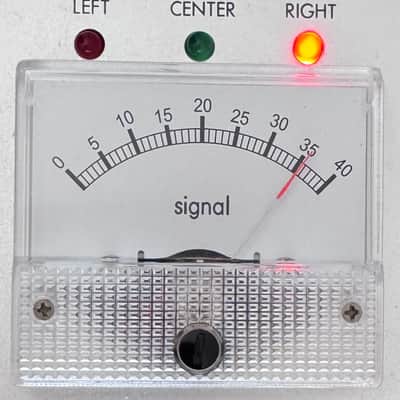

Channel Separation: 35 db

The stylus was inspected with a Shure SEK-2 microscope and showed no wear.

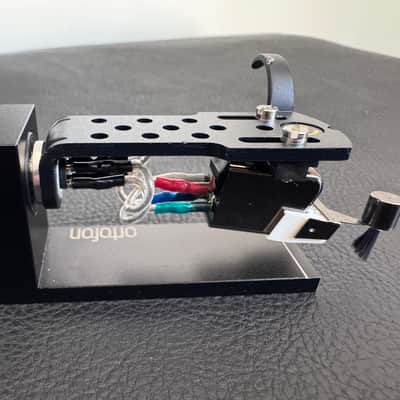

(Black overhang gauge is used for display only, not part of the listing).

About XSV/4000

XSV/4000 stereo cartridge utilizes advanced design features originally developed for use in the manufacture of the finest four channel discrete cartridges.

A low mass, ultra powerful samarium cobalt magnet assures accurate tracking of high velocity modulations in the groove. The result is true fidelity, great sound and longer life for record collections.

Like its cousin, the Quadrahedral, the Stereohedron stylus is shaped to provide an enlarged area of record groove contact, while providing the ability to accurately trace the high frequency, high level modulations found on today's records. Thus, the Stereohedron stylus provides superior performance with low stylus wear and low record wear for your stereo records.

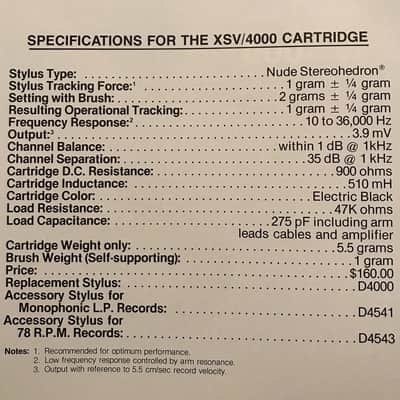

Specifications

Stylus type: Stereohedron

Tracking force: 1g (+-0.25g)

Frequency response: 10Hz to 36kHz

Nominal output: 0.7mV

Channel separation: 35dB

Resistance: 900 ohms

Replacement stylus: D4000 (stereo), D4541 (mono), D4543 (78rpm)
