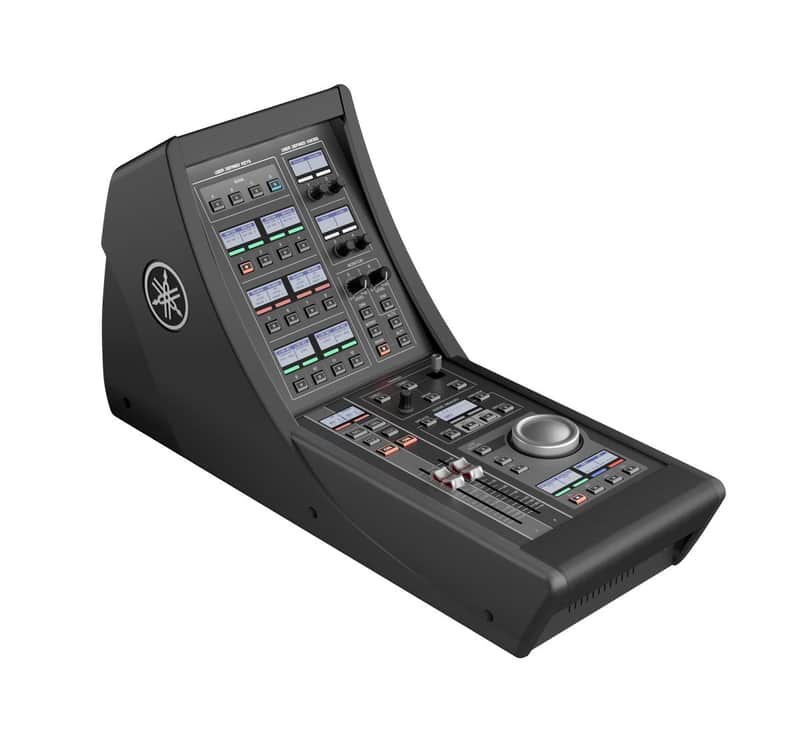

Yamaha CTL-DM7-RST-AG Expansion Controller for DM7 Series Consoles

The CTL-DM7-RST-AG is a used version of the CTL-DM7.

The CTL-DM7 is a versatile control expansion module designed for use with the DM7 and DM7C professional digital consoles. This expansion module enhances the console's capabilities by providing users with an additional arm, greatly increasing efficiency in executing essential actions. The expanded user interface of the CTL-DM7 incorporates four additional banks, each containing 12 user-defined knobs. The total of 48 independent, customizable knobs enables precise control over various parameters.

Additionally the CTL-DM7 is equipped with a programmable jog wheel, two assignable faders, and convenient access to scene controls, immersive and surround controls. With its extensive control options and specialized features, the CTL-DM7 serves as a valuable addition to the DM7 and DM7C digital consoles, delivering enhanced flexibility and performance for professionals in a wide range of audio production settings.

Includes

• DM7 Control
• Owner's Manual
• AC Power Cord
• DEK-DM7-BR License ID Leaflet
• DEK-DM7-TH License ID Leaflet

Features

• Expanded User Interface
• 4 additional banks of 12 UDK - total of 48 independent UDKs
• 4 additional UDK’s at bottom
• 4 User Define Knobs
• Quick access to scene controls
• Immersive and Surround Controls
• Programable Jog Wheel
• 2 assignable faders (E/F)
• Flexible and dedicated Monitor Controls
• Includes Broadcast and Theater Packages

Specifications

• Fader: 3.94" touch-sensitive motorized fader × 2
• Power Requirements
  • AC INPUT: 100-240 V, 50/60 Hz; AC power input: V-lock type
  • EXT DC INPUT: DC 24 V±1.2 V, 0.78 A or higher, XLR 4-pin chassis connector*1
  • Power Consumption: 20 W
  • Dimensions (W x H x D):
    • DM7 CONTROL: 7.52" × 12.72" × 22.12"
    • Linked with DM7: 38.3" × 12.75" × 22.2"
    • Linked with DM7 COMPACT 25.51" × 12.75" × 22.2"
  • Weight: 15.43 lbs
  • NC Value
  • Fan Speed LOW: NC=20
  • Fan Speed HIGH: NC=30
  • Operating Temperature Range: Min: 0°C, Max: 40°C
  • Storage Temperature Range: Min: −20°C, Max: 60°C
