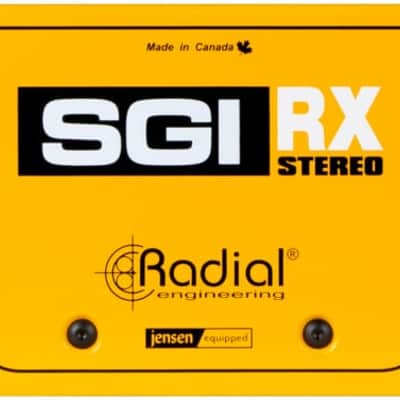

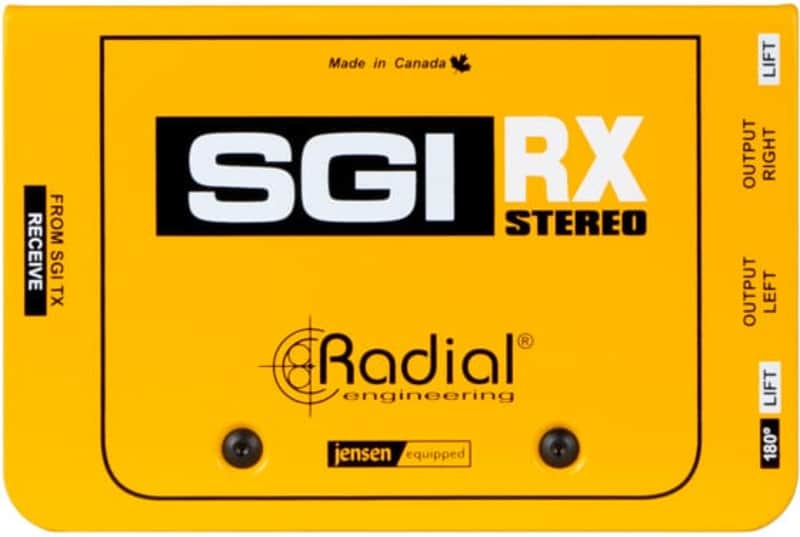

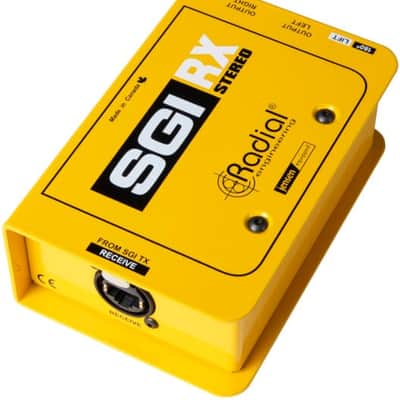

Radial Engineering SGI-STEREO-RX Stereo Studio Guitar Interface, RX Only Must be Used with Stereo TX

Your tone is your signature. Your tone is also fragile and vulnerable when subject to lengthy cable runs. Solve your logistical sonic problems with Radial's SGI Stereo Line Driver. SGI Stereo turns your unbalanced lines into a confident, noise-free stereo signal. sends it up to 100 meters over a single Cat5 cable, arriving with its tonal integrity fully intact. The transmitter (sold separately) and receiver boxes work together as a quiet, focused signal path built around premium Jensen transformers that widen the frequency response and preserve the original character of your playing.

The TX (sold separately) feeds a stereo pair through a discrete buffered circuit, locking your signal in place and sending it down a standard Ethernet cable with no loss of depth or detail. The updated Thru outputs let you feed nearby amps or a direct box without pulling cables, and the left channel can sum both sides if the right Thru is left open. The RX restores the proper impedance for your amplifiers and preserves every nuance of the stereo field.

Integrated Jensen transformers keep hum and buzz on the outside looking in as your signal travels a clean, wide dynamic path that holds up over long runs. The transmission and reception are transparent, letting your rig breathe across rooms, stages, or existing Ethernet infrastructure without sacrificing the tone that identifies you.

The transmitter and receiver are available separately or as part of a system (SGI-STEREO-SET).

Radial Engineering SGI Stereo - RX Features

• Balanced stereo line driver receiver for guitar pedals, pedalboards, or amp modellers
• Receives signals at up to 100 meters (300ft) without loss or noise
• Premium Jensen transformers for optimal sound quality
• Delivers natural tone to off-stage amplifiers
• Receives analog audio over a single, economical Cat5 Ethernet cable

Radial Engineering SGI Stereo - RX Specifications

• Frequency response: 20Hz - 18kHz, ±1dB
• Dynamic range: >103.4dB @ -20dBV, 20kHz BW
• Total harmonic distortion:<0.0052% @ -20dBu, 1kHz, 22Hz - 22kHz
• Intermodulation Distortion:<0.024% 60Hz/7kHz, 4:1, +4dBu
• Input Impedance: 200kΩ
• Output Impedance: 1.3kΩ
• Maximum Input: >8.28dBu @ 1% THD+N, 1kHz, unbalanced
• Cross Talk:<-32.7dB @ -20dBu, 10kHz
• Total Harmonic Distortion + Noise<0.0056% @ -20dBu, 1kHz, 22Hz - 22kHz
• Signal to Noise Ratio >91dB re -20dBu, 1kHz
• Features

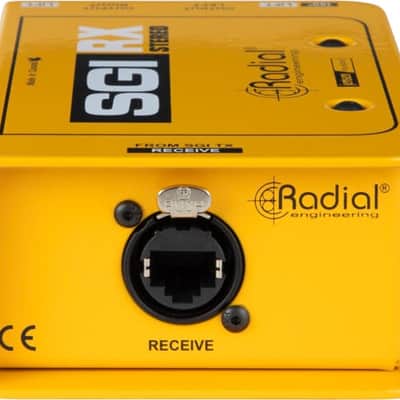

  • Input Connectors: 6x 1/4” TS, 2x etherCON locking RJ45

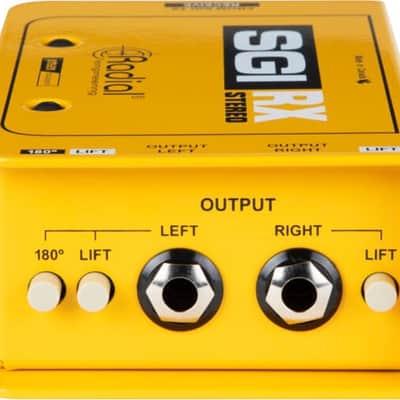

  • Output Connectors: 6x 1/4” TS, 2x etherCON locking RJ45
  • Power (TX Only): ±9-18VDC compatible
• General
  • Construction: 14-gauge Steel Chassis
  • Finish: Durable Powder Coat
  • Size (L x W x D): 5” x 3.3” x 1.8” (127 x 84 x 46mm) for each unit
  • Shipping size (L x W x D): 13.25” x 5.12” x 3” (337 x 130 x 76mm)
  • Power: ±9-18VDC compatible (ships with 15VDC)
  • Warranty Radial 3-year, transferable
  • Conditions: For use in dry locations only between 5°C and 40°C
  • Warranty: Radial 3-year, transferable
