JBL CONTROL-SB221-RST-01 Dual 10 Commercial Subwoofer - WHT

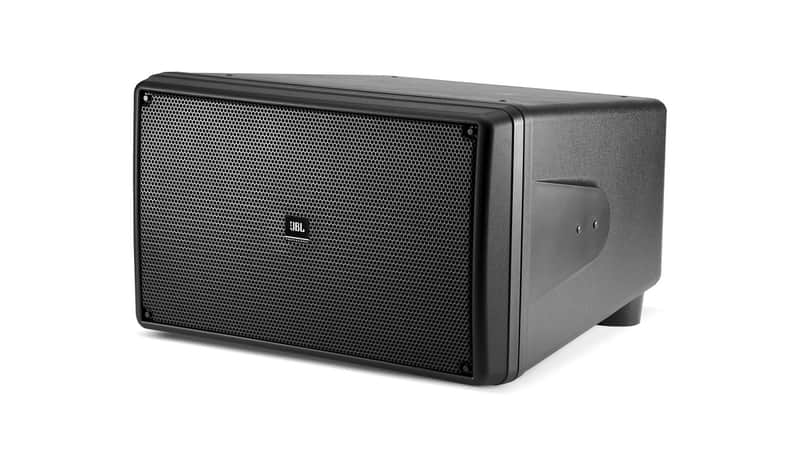

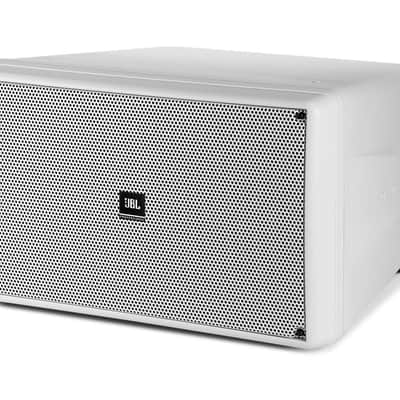

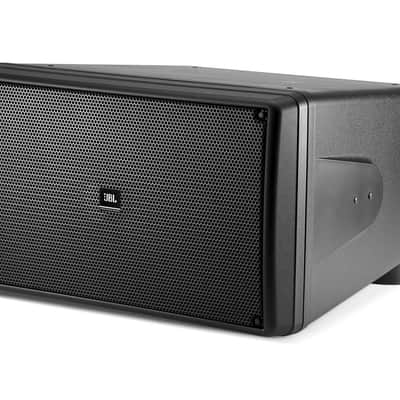

The Control SB2210 from JBL is a Dual 10" compact Subwoofer that delivers low-frequency (LF) reinforcement for a wide range of sound system applications. Thanks to its compact form-factor, along with its high output and outdoor-capable design, it's one of the most versatile subwoofers in the installation market. The MTC-210UB U-bracket is available optionally to facilitate mounting the SB2210 to flat, secure surfaces.

This is a Restock item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Includes

• 1x Control SB2210 unit
• 1x MTC-PC2 input panel cover
• 4x Floor-standing feet
• 4x Beveled washers.

Features

• (2) 250mm (10") Woven Fiberglass Cone LF Drivers
• 500 Watts Power-handling
• Frequency Response Down to 38 Hz
• (13) M6 Insert Points Including Inserts for Optional 1U-Bracket (bracket sold separately)
• Compact, Low-profile Design

Specifications

• Frequency Range (-10 dB): 38 Hz - 500 Hz
• Frequency Response (-3 dB): 48 Hz - 95 Hz
• Power Rating:
  • 500 W (2000 W peak) Continuous Pink Noise (2 hrs)
  • 1000 W Continuous Program (2 hrs)
  • 400 W (1600 W peak) Continuous Pink Noise (100 hrs)
• Maximum Input Voltage: 60.0 VRMS (2 hrs), 120V peak
• Sensitivity: 95 dB, 1W @ 1m in half-space (2π loading, average 50 – 90 Hz)
• Max SPL: 122 dB in half-space (2π loading)
• Nominal Impedance: 8 Ωs
• Minimum Impedance: 7.2 Ω at 160 Hz
• Recommended Filter: 45 Hz, 24 dB/oct high-pass filter
• Low Frequency: Two 250mm (10") diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.
• Enclosure Material: High Impact PolyStyrene (HIPS) with 10% glass fill and internal 8mm polyurethane co-mold, painted with highly-UV-resistant paint on white model for maximum UV fade resistance.
• Grille: Thermoset composite coated steel, zinc-plated, 3-layer foam backing.
• Environmental: IP45 rating per IEC529 spec when installed with included MTC-PC2 terminal panel cover. Exceeds Mil Spec 810 for humidity, salt spray, temperature and UV. Passes Mil-STd-202F for salt spray.
• Terminals: Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 (sold separately) protective covers available to provide sealed entrance for additional weather protection.
• Agency Rating: ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.
• Dimensions (H x W x D): 14" x 23".3 x 22.5" (355 x 590 x 570mm)
• Net Weight: 51.4 lbs. (23.31 kg)
• Shipping Weight: 57.0 lbs (25.85 kg)
• Note: additional information can be found within the "Control SB2210 Datasheet" located under the "Documentation" tab above.
