This Full Compass bundle covers your signal path from instrument to console with smart, dependable pieces chosen to work together. At the center is the Hosa SideKick DIB‑443 passive, transformer‑isolated direct box, built to connect high‑impedance instruments directly to a mixing console or DAW. Using an internal isolation transformer, it converts instrument‑level signals into balanced, line‑level output while keeping noise under control. Its single‑channel layout makes it a natural fit for electric guitars, basses, keyboards, pedal effects, and any mono 1/4-inch source. With no batteries or phantom power required, the passive design delivers consistent performance every time you plug in. Part of the rugged Pro‑Conex lineup, the DIB‑443 includes practical signal tools like an INST or LINE switch, letting you choose a clean feed for DSP or drive the line from an amplifier for a more natural edge.

The bundle includes one Cable Up MIC-XX-25 XLR microphone cable for reliable balanced connections, along with two Cable Up PM2-PM2-10-BLK 1/4-inch instrument cables designed with low-capacitance wire and gold-plated Rean by Neutrik contacts. Each Cable Up Industrial cable is factory soldered, built for daily use, and backed by a one-year unconditional warranty.

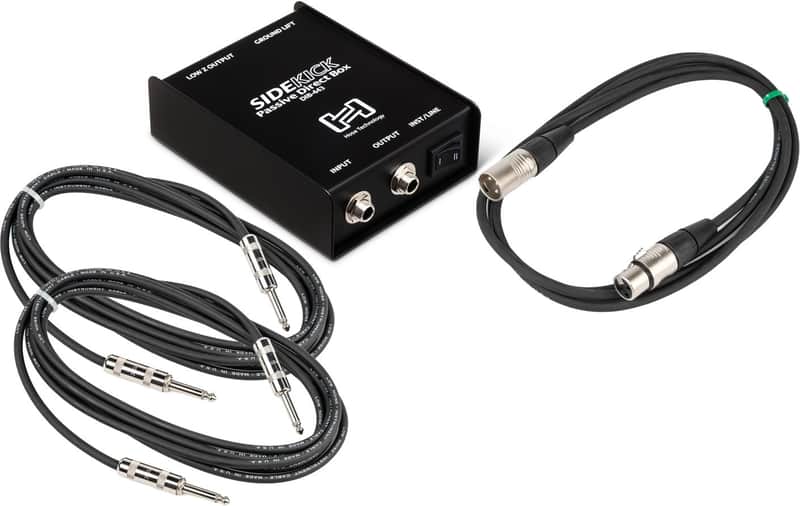

Hosa DIB-443 Cable Bundle Includes

• 1 DIB-443 Direct Box
• 1 MIC-XX-25 XLR Mic Cable
• 2 PM2-PM2-10-BLK 1/4" Instrument Cable

Hosa DIB-443 Cable Bundle Features

• Complete signal path bundle connects your instrument to the console with reliable, matched components
• Includes Hosa SideKick DIB-443 passive direct box with transformer isolation for clean signal conversion
• Converts high-impedance instrument signals to balanced line-level output while reducing noise
• Passive design requires no batteries or phantom power for consistent, plug-and-play operation
• Single-channel layout suits guitars, basses, keyboards, pedals, and other mono 1/4 in. sources
• INST or LINE switch lets you choose between a clean feed or a more driven signal from an amp
• Includes one Cable Up MIC-XX-25 XLR cable for dependable balanced connections
• Includes two Cable Up PM2-PM2-10-BLK 1/4 in. instrument cables with low-capacitance design
• Gold-plated Rean by Neutrik connectors ensure solid contact and signal integrity
• Factory-soldered construction built for daily stage and studio use
• Backed by a one-year unconditional warranty for added peace of mind

Hosa DIB-443 Cable Bundle Specifications

• DIB-443
  • Circuit Type: Passive (Transformer-Based)
  • Channels: 1 (Mono)
  • Connectors: 1/4 in TS to XLR3M
  • Inputs: 1 x 1/4″ TS (Unbalanced)
  • Outputs: 1 x XLR3M (Balanced)
  • Switches: INST/LINE
• PM2-PM2
  • Cable:
    • Type: Mogami 2524
  • Conductor:
    • Details: 50/0.12 0FC
    • Size: 0.565 mm2 (#24 AWG)
  • Insulation:
    • Overall Diameter: 2.7Ø mm (0.106")
    • Material: Polyethylene
    • Color: Clear
  • Sub-Shield:
    • Overall Diameter: 3.4Ø mm (0.134")
    • Material: Conductive PVC (Carbon PVC)
    • Color: Black
  • Main-Shield:
    • Served Shield: Approx. 57/0.18OFC, overall spiral shield
  • Jacket:
    • Overall Diameter: 6.0Ø mm (0.236")
    • Material: PVC
    • Color: Black
  • Connectors:
    • 1/4" mono TS male plugs
    • Cable Up Part #: 14TSM-C
    • Plate gold tips
• MIC-XX-25
  • No. of Conductors: 2
  • Conductor Gauge: 24 AWG
  • Stranding: 26x36
  • Shield Type & % Coverage: Spiral 95%
  • Overall Diameter: 0.245"
  • Capacitance, Conductor to Conductor: 21 pf / ft
  • Capacitance, One conductor to shield with other conductor tied to shield: 37 pf / ft
  • Characteristic Impedance: 70Ω NOMINAL
  • D.C. Resistance @ 20°C: 23Ω/1000'
  • Jacket: Matte PVC
  • Jacket Thickness: 0.045"
  • Insulation Thickness: 0.018"
  • Weight per 100 ft: 3.2 lbs
