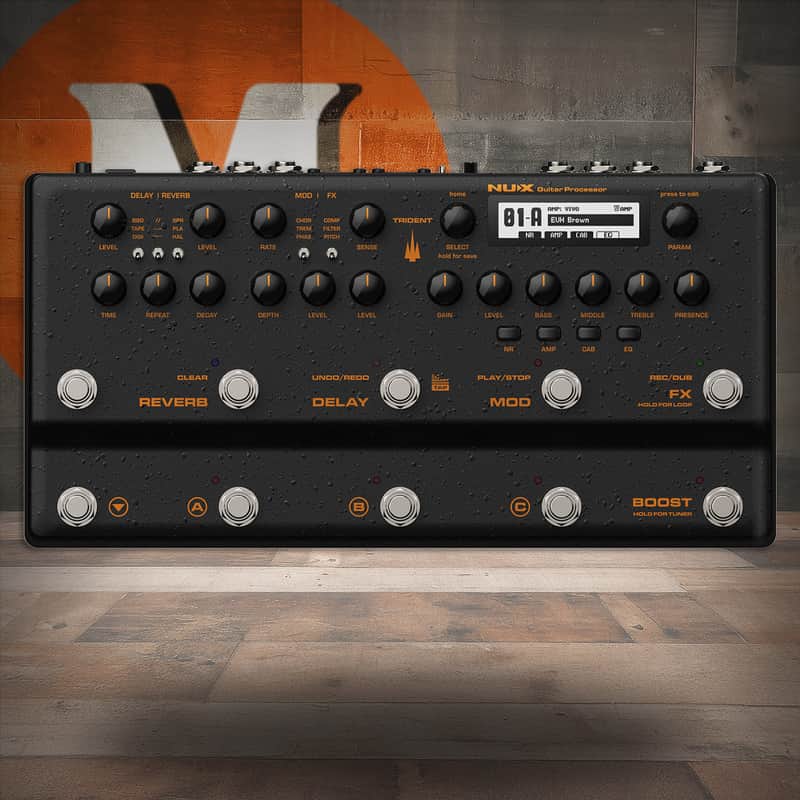

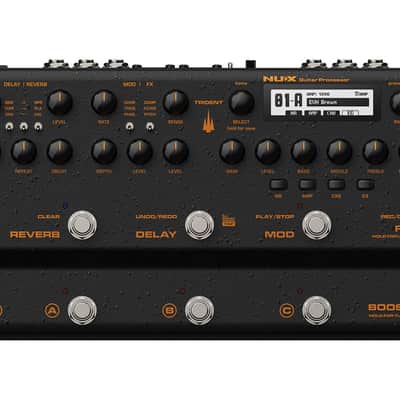

A Top Shelf Modeler for Live.

Perfect for live applications, the TRIDENT offers plenty of I/O options. The SEND/RETURN effect loop for external effects, 2 balanced XLR outputs to the PA system, PHONES output for monitoring, EXP. PEDAL input for adding an expression pedal, MASTER VOL pot, and MIDI IN / OUT.

Built like a tank.

The TRIDENT uses one-piece die-cast aluminum case, it’s solid, strong, build for live performance.

World-Class Amp Modeling.

The TRIDENT features our newly updated iconic TSAC-4K Amp Modeling (White-box Physical Modeling algorithm). The TSAC-4K Amp Modeling algorithm is twice as complex than previous versions. This led us to design a new hardware platform with 2 DSPs, one to handle all the effects, and the other to handle the amp modeling algorithm. Additionally, the TRIDENT uses premium A/D & D/A converters and analog circuits to achieve a clear sound with low noise levels.

“We Modeled Everything. Even the Patch Cables.”

This world-class amp modeling algorithm comes fully loaded with features and functionality. Just like their real counterparts, the included 27 amps feature HIGH/LOW inputs, 4 inputs for patch cable jumping, toggle switch for voicing, allowing for maximum tweaking.

An IR Loader for the Best Cabs.

The TRIDENT is a powerful IR loader and includes 27 Cab IRs at 1024 sample resolution. Fine tune your Cab tone with 4 microphones (3 positions each), to adjust IR low cut / high cut / level.

And finally, expand your IR library with 3rd party IRs and 32 additional slots. The Trident™ edit software will convert the IR format automatically on your PC or Mac.

Specs:

– INPUT Impedance: 1MΩ

– AUX IN Impedance: 10kΩ

– RETURN Impedance: 100kΩ

– OUTPUT 1, OUTPUT 2, SEND Impedance: 1kΩ

– Phone Impedance: 47Ω

– Dynamic Range: 109dB

– Sampling Rate: 48kHz / 32bit

– System Latency: 1ms

– Power: 9V DC (Negative Tip, included ACD-006A adaptor)
