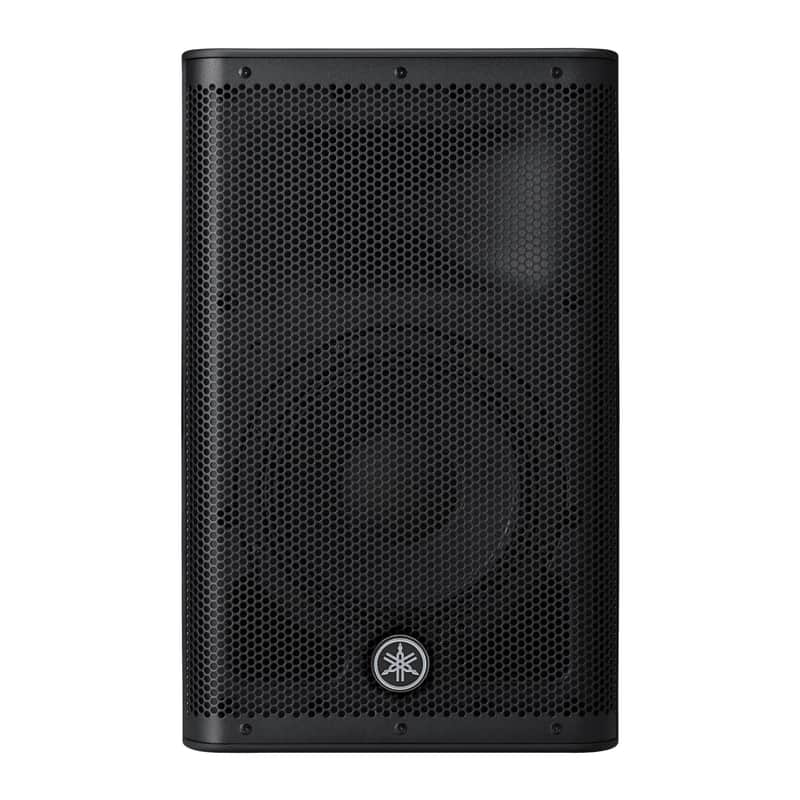

Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII’s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring, or comprising a compact SR system, the DXR10mkII delivers without compromising sound quality and power. The DXR mkII Series powered loudspeakers are the upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1.75-inch Neodymium HF compression driver for extremely clear voice reproduction and musicality.

Custom-Designed Transducers

The DXR mkII Series transducers were meticulously selected and thoroughly customized to deliver ultimate performance. The high-power output woofers deliver very low distortion and defined, deep bass, while the newly equipped larger, yet much lighter 1.75-inch Neodymium precision HF compression drivers produce accurate midrange and high frequencies up to 20 kHz with less weight.

Wide DispUltra-Precise 48-Bit DSP Processing

This powered loudspeaker feature Yamaha's proprietary FIR-X tuning utilizing linear phase FIR filters for the crossover network. FIR-X tuning simultaneously optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers. This creates a very smooth response around the crossover point, providing much better clarity and imaging than what is possible with typical crossovers.

Switchable White Front LED

Each of the full-range models and DXS speakers has a white LED behind the front grille that illuminates when powered and varies in brightness depending on the amount of system limiting.

High-Efficiency 1100W Class-D Amplifiers

All DXR mkII Series loudspeakers are equipped with highly efficient Class-D amplifiers that were optimally designed to match the DXRmkII's HF and LF transducers. These high-performance amplifiers deliver the highest sound output in their class with 1100W of power, producing an impressive SPL up to 134dB. They also provide very fast attack and superior transient response, which greatly contribute to these speakers' incredible audio performance.

Universal Switching-Mode Power Supply

The DXR mkII Series employs a high-efficiency switching-mode power supply for its outstanding performance. The power supply is also suitable for use worldwide with its multi-voltage design.

Intelligent Onboard 3-Channel Mixer

The DXR mkII Series features a flexible onboard mixer with a variety of input, making it ideal for simple vocal/ instrument amplification. With its flexible IN/OUT, the DXR mkII Series can comprise a full sound reinforcement system, or seamlessly integrate into a setup utilizing DZR or DXS Series speakers.

Versatile Mic and Line Level Input Capability

The DXR mkII onboard mixer can handle up to three simultaneous inputs. It accepts both Mic and Line level input, giving you the flexibility to connect to a variety of sources from microphones to line level instruments and portable audio devices. When in MIC position, a HPF is automatically activated to roll off unwanted low frequency.

Flexible HPF Control

All DXR mkII loudspeakers feature flexible HPF control to perfectly match with DXS subwoofers. You can choose either 100Hz or 120Hz depending on which subwoofer you are using in combination with the DXR mkII. DXS Series subwoofers feature flexible LPF settings allowing you to find the optimal HPF/LPF balance for your sound.
