Neutrik 3 Pin XLR Panel Mount Chassis Latching Connector, Multiple Options of Male & Female Receptacles-NC3FPP / 8

The worldwide standard - In this series the male and female fit in the same hole cut out and are front or rear mountable.  The "D-L-1" Series features a one piece unit with solder cup terminations(Screw Terminal option is available). It is RF protected via a 3 point coaxial ground contact to shell of the mated connector. This series is very cost effective. Accessories include male and female rubber dust covers (SCDF or SCDM), DBA blank plastic plate, and DSS color coded labeling plates.

Features & Benefits

NC3MD-L-1 & NC3FD-L-1

• Nickel Plate with Silver Contacts
• Robust "D" metal shell
• Standardized D sized 24 mm panel cutout


NC3MD-L-BAG-1 & NC3FD-L-BAG-1

• Black Shell with Silver Contacts
• Robust "D" metal shell
• Standardized D sized 24 mm panel cutout


NC3MD-L-B-1 & NC3FD-L-B-1

• Black Shell with Gold Contacts
• Robust "D" metal shell
• Standardized D sized 24 mm panel cutout

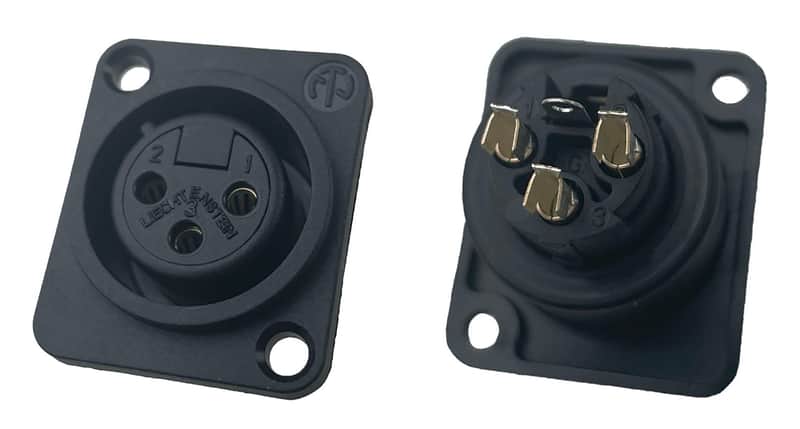

NC3MPP & NC3FPP

• Nylon Black Shell
• Female is Latchless Connection

• Standardized D sized 24 mm panel cutout


NC3MD-S-1-B & NC3FD-S-1-B

• Robust "D" metal shell
• Standardized D sized 24 mm panel cutout
• Screw terminals accommodating wire range 0.14mm² to 0.5mm² (AWG 26 -20)
• Black Shell with Gold Contacts
