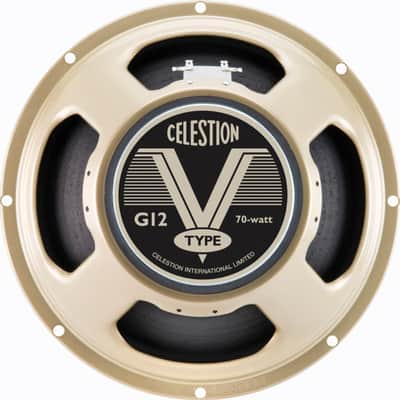

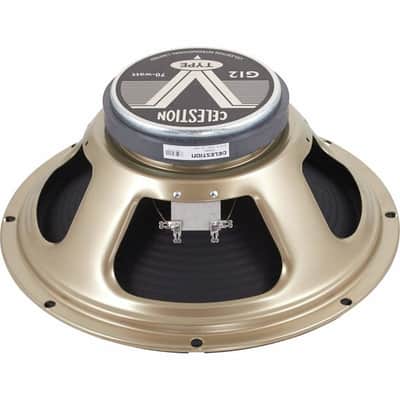

12-inch 70W Guitar Speaker

Combining decades of experience with advanced measurement and analysis the V-Type has been built using a carefully balanced ‘recipe’ of old and new design techniques. It produces a heady exciting modern vintage sound that just makes you want to keep on playing: a guitar speaker that delivers authentic Celestion tone whatever your style.The V-type is a sweet sounding speaker with a superbly balanced tonal signature that imparts a vintage musicality to your tone. Clean sounds are true across the lows mids and highs with just enough upper-mid chime and HF sparkle to add clarity and definition. Crank it up for a sizzling overdrive and raw rock tones with plenty of mid-band warmth to give body and substance to lead note playing

Specifications

12in Diameter

8Ω Rated impedance

98dB Sensitivity

Nominal diameter 305mm / 12in

Power rating 70W

Rated impedance 8Ω

Sensitivity 98dB

Chassis type Pressed steel

Magnet type Ceramic

Magnet weight 0.88kg / 31oz

Voice coil diameter 1.75in / 44mm

Voice coil material Round copper

Frequency range 70-5000Hz

Resonance frequency, Fs 75Hz

DC resistance, Re 7.3Ω or 12.9Ω

Mounting Information

Cut-out diameter 283mm /11.1in

Diameter 309mm / 12.2in

Magnet structure diameter 134mm / 5.3in

Mounting hole dimensions 7.9mm / 0.31in Ø

Mounting hole PCD 297mm / 11.7in

Number of mounting holes 8

Chassis depth (inc gasket) 94mm / 3.70in

Magnet depth 30mm / 1.18in

Overall depth 123mm / 4.8in

Unit weight 3.3kg / 7.2lb
