DSM & Humboldt Simplifier Bass Master | 0-Watt 100% Analog Bass Amp & Cab Simulator

Achieving a "record-ready" bass tone usually requires a mountain of gear: a tube DI, a parallel compressor, and a high-end cabinet microphone. The DSM & Humboldt Simplifier Bass Master consolidates that entire signal chain into a 100% analog pedalboard workstation. This is the new standard for the direct bassist, offering zero latency, massive headroom, and a level of signal routing previously only found in high-end recording consoles.

The Bass Master's secret weapon is its dual-path architecture. It allows you to split your signal into two distinct streams before mixing them back together at the cabinet simulation stage:

• The Preamp Path: Sculpt your character, grit, and harmonic content.

• The Parallel Path: Protect your fundamental "thump." With a switchable Low Pass Filter (100Hz or 500Hz), you can ensure your low end remains clean and focused, even when your top end is screaming with distortion.

Three Distinct Preamp Modes:

1. Clean: Absolute transparency. The perfect high-headroom foundation for your external pedals.

2. Comp: Musical, studio-grade compression that adds "weight" and consistency to every note.

3. Hot: A rich, tube-style drive engine that provides harmonic saturation from vintage "grit" to modern "grind."

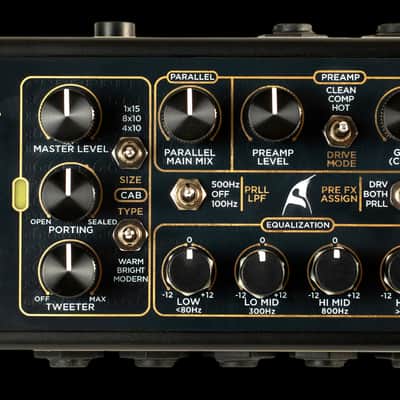

The Cabinet Sculptor: Go beyond a simple EQ. The Bass Master features an analog Cab-Sim that lets you define the physical space of your sound:

• Selectable Cabs: 8x10 (Sealed Stack), 4x10 (Modern Punch), 1x15 (Vintage Thump).

• Speaker Color: Choose between Warm, Bright, or Modern voicings.

• Porting & Tweeter: Dedicated knobs to simulate the "air" movement of a ported cabinet and the "sizzle" of a high-frequency horn.

• Circuitry: 100% Analog Preamp and Cab Sim.

• EQ: 4-Band Studio Grade EQ (Bass, Low Mid, High Mid, Treble).

• Routing: Integrated Phase Switch and Parallel Blend.

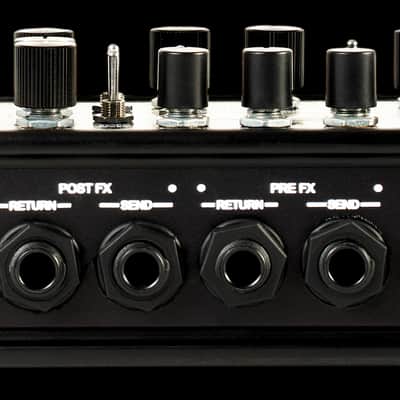

• Dual FX Loops: * Pre-FX Loop: Assignable to the Preamp, Parallel path, or Both (ideal for specialized filter effects).

  • Main FX Loop: Post-preamp stereo integration.

• Connectivity:

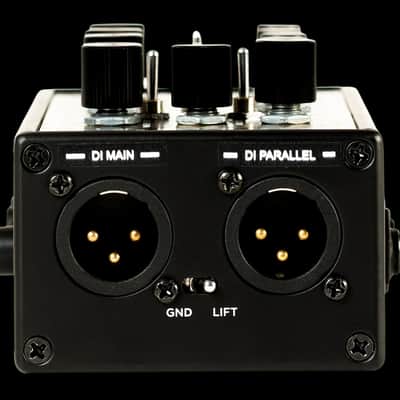

  • Dual XLR Outputs: "Main" (Full Cab Sim) and "Parallel" (Clean/DI signal) for independent FOH mixing or re-amping.

  • Dual 1/4" Outputs: With "Parallel-Thru" and "Cab-Sim Bypass" options.

  • Practice Tools: 1/8" Aux In and Headphone Out with dedicated level control.

• Power: 9V - 12V DC, Center Negative (Current Draw: 100mA).

• Chassis: Compact, ultra-rugged anodized aluminum.
