Single sell line

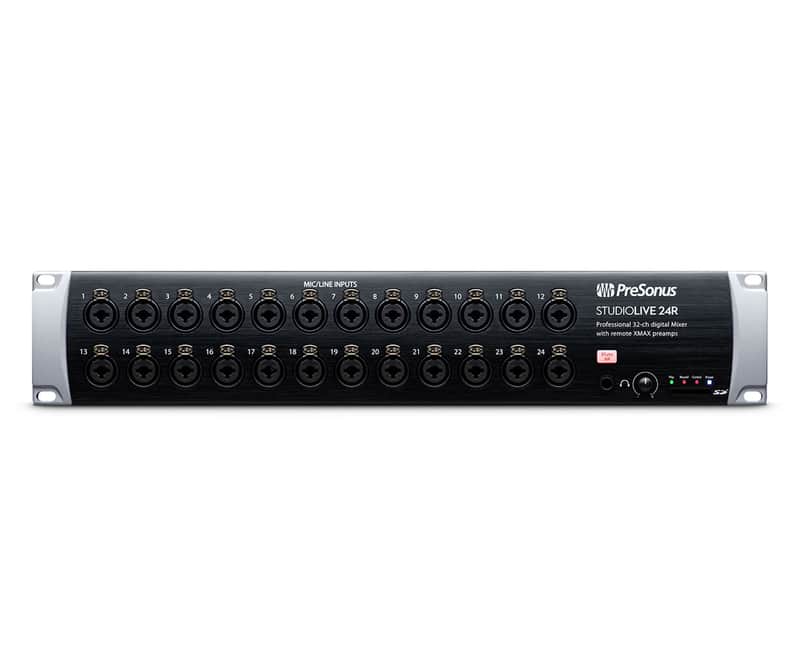

Powerful and compact, the PreSonusStudioLive24R serves as a 24-channel AVB stage box for StudioLive Series III consoles and as a Series III rack-mount digital mixer with modern and vintage effects,  ultitrack recording via USB 2.0 and AVB, and a full suite of integrated, easy-to-use software.

Unique selling points

Serves as a 24-channel AVB stage box for StudioLiveSeries III consoles and as a standalone, rack-mount, 24-channel, Series III digital mixer; can operate as a simple stage box or as a combined stage box/24-channel monitor mixer; delivers a plug-in-style signal-processing workflow with studio-quality, vintage-style EQ and compression options on every channel; multitrack recording via USB 2.0 and AVB; onboard stereo recording to SD Card; intuitive UC Surface control software for Mac, Windows, iPad, and Android; a comprehensive software package, including PreSonus’ Studio One Artist DAW.

Body

PreSonus’ 24-channel Series III StudioLive24R is both a versatile AVB stage box for StudioLive Series III consoles and the most powerful rack mixer in its class. It can operate as a simple stage box or as a combined stage box/monitor mixer, including remote control of the preamps and phantom power from the series III console. As with Series III consoles, it’s fully recallable and features a plug-in-style signal-processing workflow with vintage-style EQ and compression options on every channel; 16 FlexMixes that can be Aux, Subgroup, or Matrix mixes; 4 fixed subgroups; 6-band fully parametric EQ on all mix outputs; and built-in AVB networking. In addition to 40x40 USB and 55x55 AVB recording interfaces, the StudioLive 24R features an onboard stereo SD recorder.

Features

• AVB stage box for StudioLive Series III consoles with simple stage box mode and stage box + monitor mixer mode
• Fully recallable, 32-channel, Series III digital rack mixer (24 mic/line inputs + 8 digital channels)
• 26 total inputs, including 24 locking combmic/line channel inputs with recallable XMAX Class A mic preamps
• 16 FlexMixes (Aux mixes, Subgroups, or Matrix mixes) and 4 dedicated subgroups
• 40x40 USB 2.0 recording interface and 55x55 AVB recording interface
• Complete solution: Includes UC Surface touch-control software for Mac, Windows, iPad, and Android; CaptureTM live-recording software and StudiOneArtist DAW for Mac and Windows; compatible with free QMix-UCpersonal monitoring control for iPhone/iPodtouch, and AndroidTM
• 24-channel AVB stage box for StudioLive Series III consoles
• Simple stage box mode
• Stage box + monitor mixer mode with control of preamps and phantom power from StudioLive Series III console
• Fully recallable, 32-channel, Series III digital rack mixer (24 mic/line inputs + 8 digital channels)
• 26 total inputs
• 24 locking combmic/line channel inputs with recallable XMAX Class A mic preamps
• 2 RCA line-level channel inputs (Ch. 23-24)
• 12 1⁄4” TRS FlexMix outputs
• 2 XLR main outputs (left/right)
• Scene management with Scene Safe
• 16 FlexMixes (Aux mixes, Subgroups, or Matrix mixes)
• 4 dedicated subgroups
• 4 internal effects buses (combination of reverbs and delays with modern and vintage options)
• Fat Channel processing with vintage EQ and Compressor modes available on every channel and A/B compare
• 40x40 USB 2.0 recording interface and 55x55 AVB recording interface
• Onboard stererecording tSD card
• Complete solution: Includes UC Surface touch-control software for Mac, Windows, iPad,and Android; CaptureTM live-recording software and StudiOneArtist DAW for Mac and Windows; compatible with free QMix-UCpersonal monitoring control for iPhone/iPodtouch, and AndroidTM
