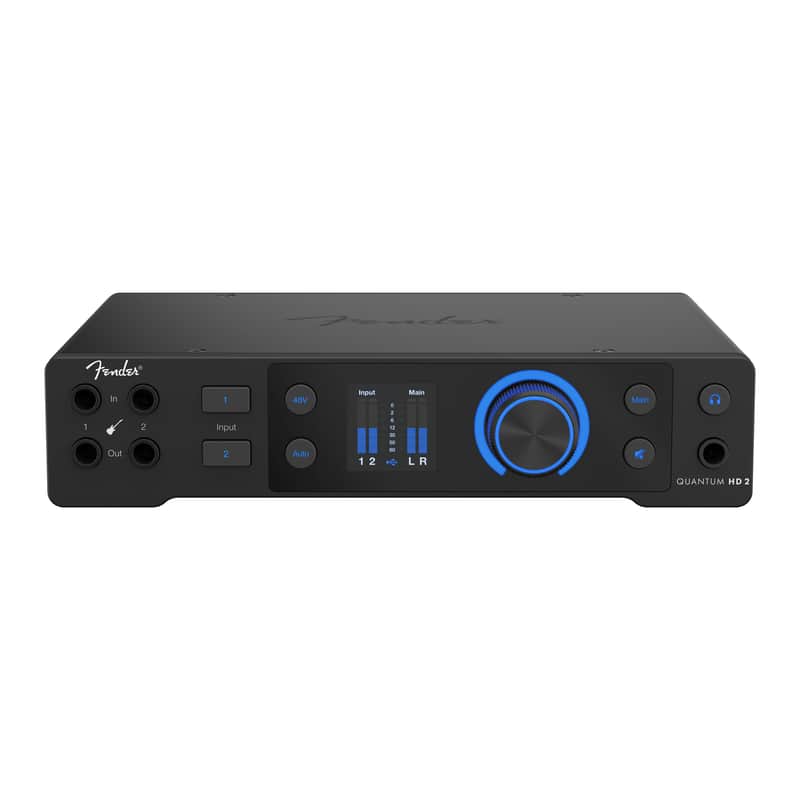

The Fender Quantum HD 2 is a 20 x 24 USB-C interface designed for musicians, producers, and project studios who demand accuracy, clarity, and flexibility. Featuring next-generation MAX-HD mic preamps, ultra-low-latency drivers, and high-performance converters, the HD 2 captures every nuance of vocals, guitars, bass, and full-band sessions with professional precision.

Ultra-High-Fidelity Recording

MAX-HD preamps and high-performance converters deliver pristine audio with stunning clarity.

Fender Instrument Inputs

Front-facing inputs ensure guitars and basses translate perfectly to your mix.

Ptimized Workflow

Auto Gain, re-amp outputs, DSP monitor mixer, and loopback routing streamline recording and streaming.

Seamless Software Integration

Full control from Fender Studio Pro or Universal Control app keeps your workflow smooth and intuitive.

Features

• Ultra-high-fidelity USB-C recording interface with MAX-HD mic preamps
• 20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters
• Expanded Digital I/O: 16 ADAT channels and S/PDIF I/O.
• Ultra-high-fidelity USB-C recording interface with MAX-HD mic preamps
• 20 x 24 I/O configuration with high-performance 32-bit / 192 kHz converters
• Expanded Digital I/O : 16 ADAT channels and S/PDIF I/O.
• Front-facing Fender instrument inputs optimized for guitar and bass
• Auto Gain button for instant, hassle-free recording levels
• Re-amp outputs for creative tone exploration with amps and pedals
• DSP monitor mixer and loopback routing for streaming and monitoring
• Control preamps, phantom power, and outputs via Fender Studio Pro or Universal Control app
• Professional software included : Fender Studio Pro perpetual license
• Series : Quantum
• Color : Black

Microphone Inputs

• Connection Type : XLR Female (Combo), Balanced
• Frequency Response : 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
• Input Impedance : 1600 Ohms
• Dynamic Range : 116 dB (A-Weighted, Minimum Gain)
• EIN : -130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)
• THD+N : 0.002% (1 kHz, Minimum Gain)
• Gain Range : 75 dB
• Maximum Input Level : +18 dBu (Balanced, Minimum Gain)
• Phantom Power : +48 VDC

Line Inputs

• Frequency Response : 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
• Input Impedance : 10K Ohms
• Dynamic Range : 118 dB (A-Weighted, Minimum Gain)
• THD+N : 0.001% (1 kHz, Minimum Gain)
• Gain Range : ± 10 dB
• Maximum Input Level : +18 dBu (Balanced, Minimum Gain)

Instrument Inputs

• Frequency Response : 20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)
• Dynamic Range : 111 dB (A-Weighted, Minimum Gain)
• THD+N : 0.003% (1 kHz, Minimum Gain)
• Gain Range : 75 dB
• Maximum Input Level : +21 dBu (Unbalanced, Minimum Gain)

Line Outputs

• Connection Type : 1/4" TRS Female

Main Outputs

• Connection Type : 1/4" TRS Female

Headphone Outputs

• Connection Type :One - 1/4" TRS Female Stereo
• Frequency Response : 20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)
• Impedance Working Range : 33 Ohms
• Dynamic Range : 118 dB (A-Weighted)
• THD+N : 0.001% (1 kHz)
• Maximum Output Level : 11 dBu (50 Ohms)

MIDI I/O

• Connection Type : 5-Pin Female DIN

Power

• Voltage : 120V
• Voltage Requirements : 100-240 VAC, 50-60 Hz

Digital Audio

• Connectivity : USB-C
• Bit Depth : 32-bit
• Dynamic Range : 124 dB
• Supported Sample Rates : 44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Measurements

• Height : 1.9" (48.3 mm)
• Depth : 7.5" (191 mm)
• Width : 8.5" (216 mm)
