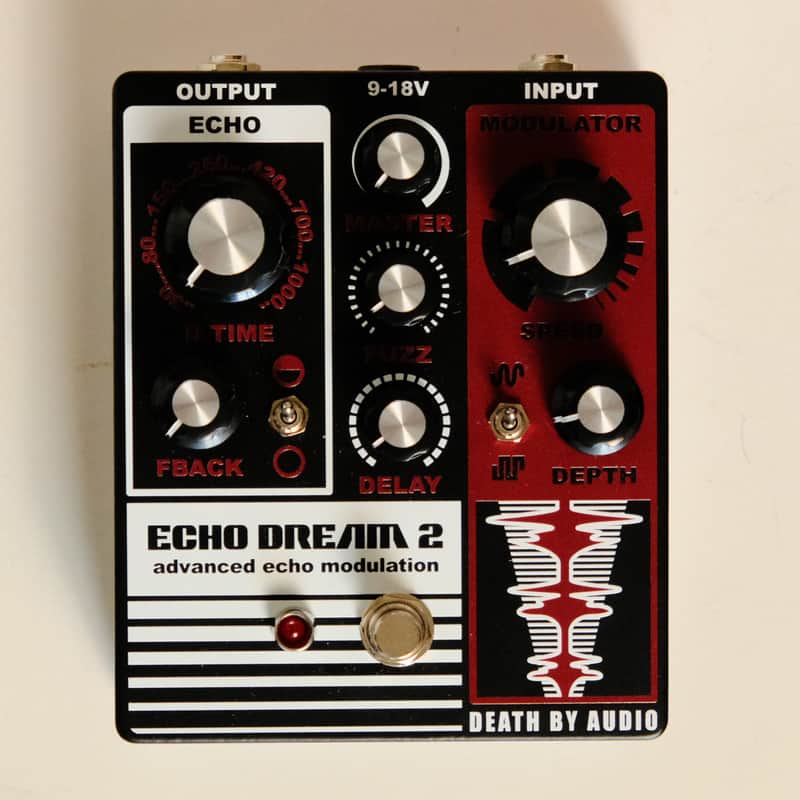

Lush Modulating Echo

A powerful, ethereal, and nuanced delay pedal with otherworldly controls. Push the feedback for vast worlds of colorful sound. Introduce a bit of warble with the modulator for ghastly chorus tones, or a ton of it to absolutely warp the delayed signal. Once your delay is thoroughly contorted, turn up the fuzz and pulverize it into repeating, shattered pieces. This is the preferred echo for recording engineers and touring pros around the world because, simply put, it just sounds that good. From delicate, beautiful sounds to yawning voids of fuzz and feedback, the Echo Dream 2 is ready to transform anything you throw at it.

Features

Master Controls

Master

• Controls the output volume of the effect.

Fuzz

• Sets the amount of gain, from clean to fuzzed-out bliss. This gain is after the echo and will make both the clean and the echoes distorted when cranked up.

Delay

• Sets the volume of the delayed signal.

Echo Controls

D Time

• Controls the delay time (numbers shown in milliseconds) between 20 ms and 1 second. Long delay times can create flutter, noise, and distortion.

FBack

• Controls the feedback of the delays, from slapback to wild runaway oscillation.

Dry Toggle

• White Half Circle Icon Echo Dream 2 Death By Audio

UP

• Allows the dry signal through
• White Circle Icon Echo Dream 2 Death By Audio

Down

• Kills the dry signal (only the repeats will be heard)
• Modulation Controls

Speed

• Controls how fast the modulating oscillator runs.

Depth

• Sets how for the modulator will swing the delay time. At high intervals, the pitch of the repeats will shift very far!

Shape Toggle

• White Sine Wave Icon Echo Dream 2 Death By Audio

UP

• Smoother, sine-like modulator waveform
• White Square Wave Icon Echo Dream 2 Death By Audio

Down

• Sharp, square-shaped modulator waveform

Power Details

• Power Supply : 9V, 12V, or 18V VDC supply with 2.1mm negative center barrel (many non-9V supplies will vary their polarities so double check!)
• Current Draw : 40 mA

Physical Details

• Dimensions : 5.87" x 4.72" x 2.35" (including hardware)
