Custom Pre-order! Thinline Telecaster HH 2026 White

This is a pre-order for this guitar to be built and shipped to you within 28 days. You can order it as-is, or request any upgrades or modifications prior to your purchase.

This is 100% payment for this guitar. Guitar will ship after being built.

Estimated time of completion is 28 days. 90% of the time it ships on the 27th or 28th day. 8% of the time it ships earlier. 2% of the time it's late due to unforeseen delays. I will be available at all times for updates and keep you informed of early delivery or delays. Changes can be made before and during build so long as price and payment are agreed upon and completed.

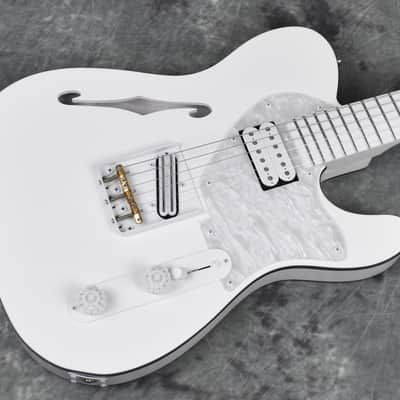

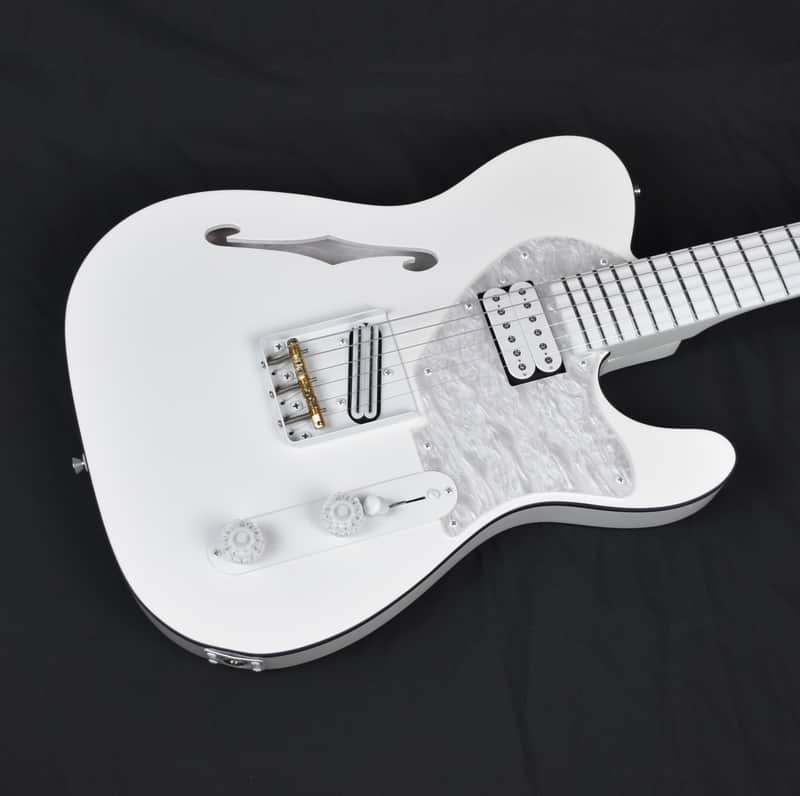

The guitar that is pictured is one that has already been built and sold.  Color or wood grain may vary slightly from that in the picture. Binding may or may not be present. You are welcome to discuss with me prior to purchase and during the build if any of these factors are important to you. If there are any drastic differences, you will be notified.

Switching positions as follows:
1. Bridge (Resistance 9.0 ohms)
2. Bridge in parallel with Neck (regular Tele position) (Resistance 5.6 ohms)
3. Neck (Resistance 14.2 ohms)
4. Neck in series with Bridge (Resistance 22.6 ohms)

General Overview:

• Additional position for both pickups in series (Maximum pickup output)
• Humbuckers individually (partial) split
• Full level, crown, polish, set-up, playability test, inspection and packaging by a certified luthier
• D'Addario Nickel Wound Strings XL 10-46 EXL110

Body:

• White High Gloss body
• Matching White F-hole

Neck:

• Scale length 25.5"
• Gloss white maple neck with gloss white fretboard. 22 medium jumbo frets.

Hardware:

• White Bridge with compensated brass saddles and option for top load
• White control plate with white knobs and white switch tip
• White output jack plate
• Chrome strap pin buttons
• Chrome tuners with white pearloid tuning keys
• White neck plate
• Chrome string ferrules
• Chrome string trees
• White pick guard

Electronics:

• White Dual Rail Humbucker Bridge Pickup 9k (Exact measure 9.0 ohms).
• White Humbucker Neck Pickup 14k (Exact measure 14.2 ohms).
• 500K Volume/Tone Potentiometer Push/Push Audio Taper
• Oak Grigsby 4-Way Blade Switch
• 0.022uF tone cap
• Additional position for both pickups in series (Maximum pickup output)
• Humbuckers individually (partial) split
• All cavities have been shielded and insulated. All grounding, shielding, insulation, and pickup phasing/polarity have been well thought out and executed.

Full-spectrum Resistance 23 ohms to 4 ohms: Guitar has nine (9) distinct resistance settings with mix and match of push-push coil splits. Positions and resistance values are charted below at the very bottom. High-output position number 4 with bridge and neck wired in series. Coil splits are "partial" coil splits modeled after PRS "partial" coil splits to retain oomph, output, and tone. Capable of chicken-pickin' country, jazz, smooth blues, roaring rock, to stoner doom metal, the sonic possibilities are endless. Full detailed description of "Broad Spectrum Wiring" can be viewed on "Werner Guitars" Facebook page.

You have OPTIONS.  Just message before the sale if you want anything changed about the guitar.  (Pickups, hardware, new wiring/signal chain, etc.) You will be notified if the change can be made, time to complete, cost if any, and pictures provided as appropriate.  Get the guitar YOU want.  Message today!

Available Options:

• Add Tesi kill switch 24mm white (or any other color) $49
• Change to standard telecaster with two single-coil pickups and a 3-way switch for free.
• Add Jimmy Page wiring $199 (This changes the switch to 3-way, and both pickups to humbucker and two more potentiometers.)
• Add Jimmy Page wiring with independent middle humbucker $299 (This changes all pickups to humbucker, the switch to 3-way, adds a middle humbucking pickup and three more potentiometers.)
• Add Nashville wiring $149 (This will add a middle pickup and all 3 pickups will be single coil. Will be wired in the classic Nashville style format unless you request any modifications.)
• Add padded gigbag $19
• Change the color of the body and/or neck.

Switching Positions as Follows:

1. Bridge (Resistance 9.0 ohms)

with (partial) coil split (tone knob only) 6.1 ohms

with (partial) coil split (tone & volume knob) 3.7 ohms

with (partial) coil split (volume knob only) 4.6 ohms

2. Bridge in parallel with Neck (regular Tele position ) (Resistance 5.6 ohms)

with (partial) coil split (tone knob only) 4.3 ohms

with (partial) coil split (tone & volume knob) 3.6 ohms

with (partial) coil split (volume knob only) 4.5 ohms

3. Neck (Resistance 14.2 ohms)

with (partial) coil split (volume knob only) 8.9 ohms

4. Neck in series with Bridge (Resistance 22.6 ohms)
with (partial) coil split (tone knob only) 19.9 ohms

with (partial) coil split (tone & volume knob) 9.1 ohms

with (partial) coil split (volume knob only) 9.2 ohms

Full range of resistance:

22.6 ohms

19.9 ohms

14.2 ohms

9.2 ohms

8.9 ohms

6.1 ohms

5.6 ohms

4.5 ohms

3.6 ohms
