Description

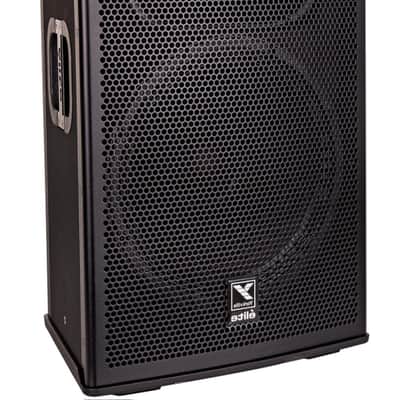

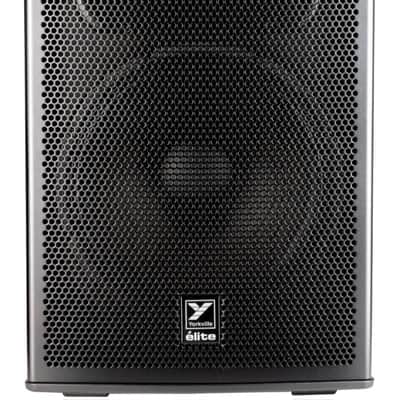

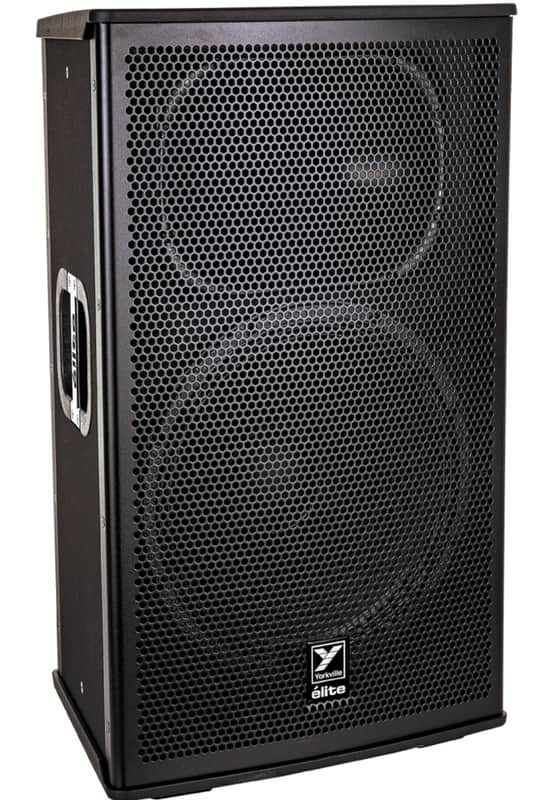

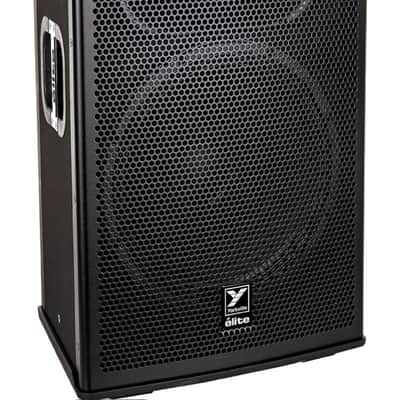

The EF15P is a 2-way active loudspeaker with innovative processing. Use it as a front-of-house speaker, or self-contained compact PA for paging and playback with no mixer required.

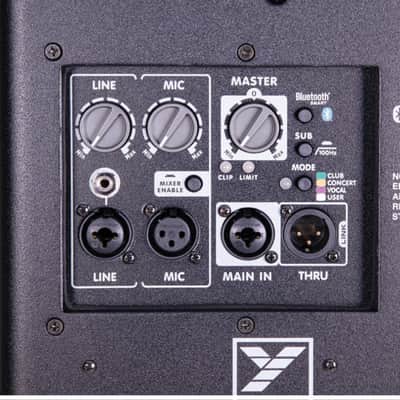

The speaker offers flexible connectivity with a simple interface. The Main In accepts XLR and 1/4” TRS line level connections. An internal mixer can be engaged to add 1/8” TRS and 1/4” TRS or XLR line inputs plus a mic input with level controls, or bypassed when not needed for the lowest noise floor. A Thru jack allows up to sixteen EF-Series powered cabinets to be linked and driven from a single source.

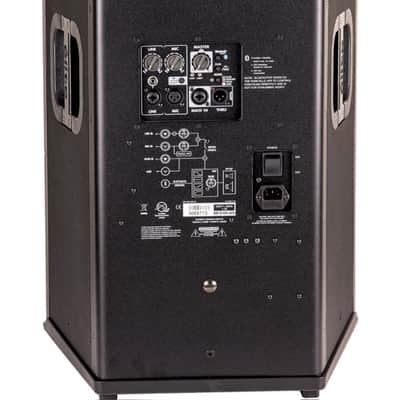

Buttons on the rear panel let you cycle between EQ voicings including a customizable user preset, filter signals below 100 Hz so an external crossover isn’t required when using a subwoofer, and pair a Bluetooth® device to control speaker parameters using the free companion app.

A 900-watt amplifier powers the 15-inch woofer, and a 3-tier 300-watt amplifier drives the 3-inch horn. An active DSP-based crossover protects the speakers and ensures deep bass, clear mids, and smooth highs.

Class D amplifiers, neodymium speaker magnets, and Baltic birch construction keep the total weight below 65 pounds while maintaining classic Elite ruggedness and durability.

Features

• 2400 W Peak Power (1200 W Program)
• 15” Long-Excursion Cast-Frame Neodymium Woofer with 3” Voice Coil
• 3” Titanium-Diaphragm Compression Driver
• Multiband DSP Limiting with 4 Preset Performance Modes
• iOS and Android App for Added Cabinet Control
• ABS-Coated Birch Plywood Cabinet Construction
• Made in Canada

Specifications

System Type Powered Loudspeaker

Power Rating 2400 W Peak (1200 W Program)

Max SPL 133 dB Peak (127 dB Continuous)

Frequency Response 43 Hz - 16 kHz

Crossover Frequency 1100 Hz

HF Driver(s) 3" Voice Coil (Titanium Diaphragm)

HF Dispersion (°H x °V)60° x 40°

LF Driver(s) 15" Neodymium Magnet with 3" Voice Coil

HF Power Amplifier (Watts) 300 W

HF Amplifier Type 3-Tier High Headroom

LF Power Amplifier (Watts) 900 LF Amplifier Type Class D

In / Out Connections 1 Combi-Jack (XLR / 1/4") Main Input, 1 XLR-M Thru

Inputs 1 XLR Microphone Input, 1 Combi-Jack (XLR / 1/4"), 1/8" Line Input

Input Impedance (Bal/UnBal) 95KΩ / 90KΩ

Input Sensitivity (Vrms Sine) +4 dBv / 1.23 V

Controls

• Mixer Enable
• DSP Mode (Club, Concert, Vocal, Custom)
• Bluetooth Enable
• Sub (100 Hz HP Filter)
• Level Controls
• Mic Input Level
• Line Input Level

Master Volume Control Yes

Bar Handles 3 (2 Side, 1 Top)

Flypoints 8 (2 Top, 2 Bottom, 2 Each Side), 2 Pullback

Flying Hardware 1/4 - 20

Pole Mount Adapter 1 (Bottom)

Enclosure Materials ABS Coated Baltic Birch Plywood

Grille Perforated Metal

Dimensions (DWH)14" x 18.5" x 30" (35.5 cm x 47 cm x 76 cm)

Weight 72 lbs / 33 kg

Specifications subject to change without notice
