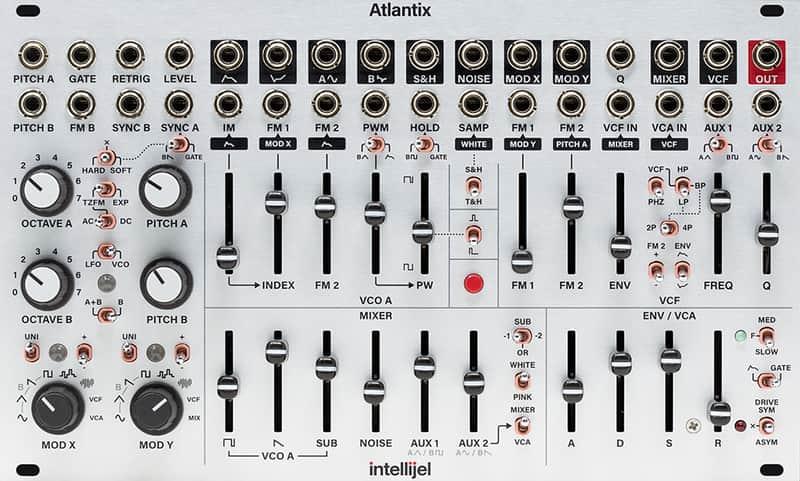

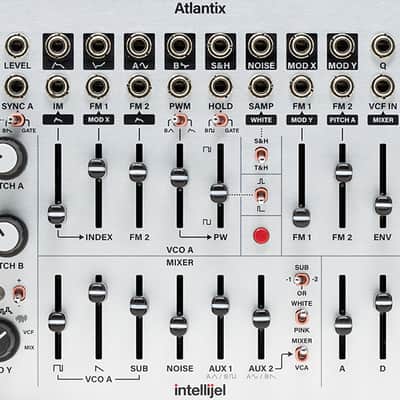

Intellijel Designs Atlantix

Intellijel's much anticipated successor to the Atlantis is here: Atlantix is a full subtractive synth voice inspired by the classic Roland SH-101. Based around two triangle-core VCOs, you get a surprising amount of flexibility and control thanks in part to the TZFM capabilities for VCO A with a dedicated FM amplifier for musical precision. VCO B can be used as either a modulation source or stacked for creating thick bass, lush pads, or powerful leads with independent octave switching and a bonus Spike waveform output that's a square with fixed HPF. Adjust the balance of VCO A's waveforms, including a Sub, Noise, and two Aux sliders that are normalized to two additional VCO A waveforms—triangle and sine—or VCO B's square and saw with the built-in 6 channel mixer. A unique feature of the Aux 2 input is the option to skip the VCF and go directly to the VCA, an architecture that was inspired by the CS-80 which can lead to some glassy tones and added harmonics.

A multimode 4-pole filter gives you lowpass, highpass, bandpass, and a phaser mode. Capable of self-oscillation, the filter tracks precisely at 1v/oct and you get three built in modulation sources: two FM sliders, and an Envelope slider. FM2 and Envelope are capable of inversion; the expander gives you dedicated outputs for each filter mode. Modulation is a huge reason the SH-101 has so many options for creative sounds and with the Atlantix, you get two 8-position switches for Mod X and Y with polarity options for Bipolar or Unipolar functionality. Mod X is normalized to the pitch of VCO A and Mod Y to the frequency of the VCF with dedicated outputs to let you patch throughout your system. The VCA has two different flavors of drive to give your sound a wonderful warmth.

Intellijel's Atlantix can be the center of your system providing all the sonic sculpting you could want with the character of analog.

Atlantix Features

• Complete, analog subtractive synth voice
• Cascaded 4-Pole multimode filter with LP2, BP2, LP4, BP4, HP4, and Phaser modes
• Two Triangle-Core VCOs
• VCO A: Thru-Zero FM with INDEX and PWM, Hard/Soft Sync, Octave switch
• VCO B: Linear FM, LFO/VCO switch, Hard Sync, Octave switch
• Suboscillator with three modes spanning two octaves
• White and Pink noise sources
• 6-Channel mixer comprising VCO A Waveforms, Sub, Noise, and two Aux inputs
• Aux inputs have switched normals with sources from VCO A and B for quick paraphonic play without patching
• Mixer Aux 2 can be routed post-VCF / pre-VCA
• Mod X and Y buses allow for quick modulation routing of VCO B, S&H, Noise, and feedback sources without patching
• Mod X and Y buses have polarity and level-shifting switches
• Analog ADSR envelope with three time ranges, manual gate, and level (velocity) input
• Patchable Sample and Hold modulation source
• Asymmetric and symmetric output distortion modes
• 20 Sliders, 4 Knobs, 27 toggles, and 2 Rotary switches
