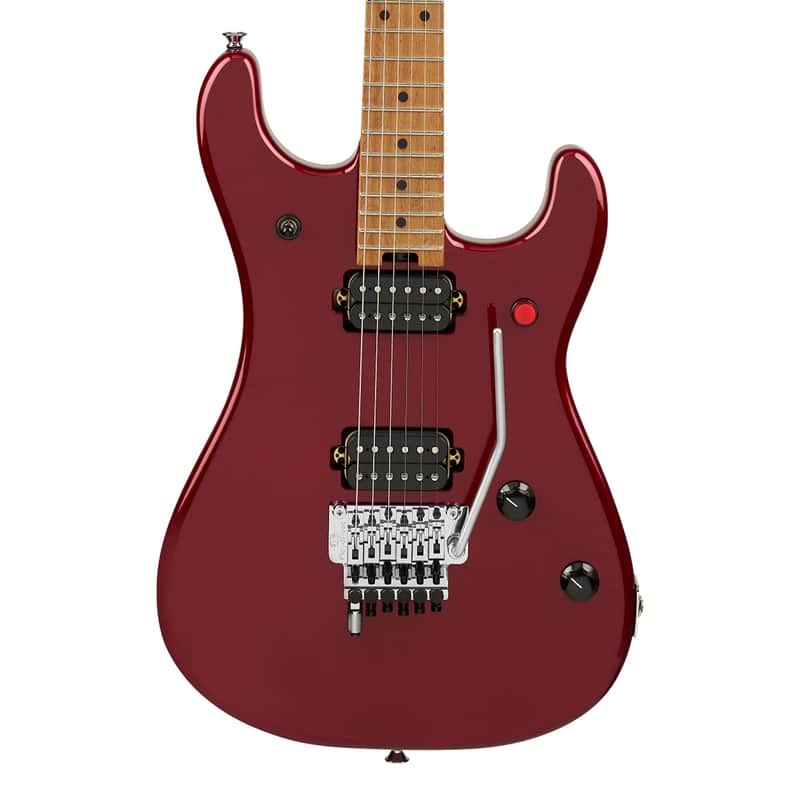

5150  Series Deluxe, Baked Maple, Candy Apple Red Metallic

Engineered for speed, comfort and full-throttle attitude, the reimagined 5150 Series DX is an iconic blast from the past that blends both throwback and modernized features.

Like its predecessor, the 5150 DX features a modified Strat-style basswood body with a deeper upper body curve. The graphite-reinforced bolt-on quartersawn baked maple neck features a comfortable modified "C" profile, hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and ""hockey stick"" headstock with EVH logo decal. Built for smooth and speedy playability, the 12"-16" compound radius baked maple fingerboard has 22 jumbo frets and black dot inlays.

While the famed striped original had a single humbucking bridge pickup only, the all-new 5150 is outfitted with an HH pickup configuration controlled by a three-way toggle switch on the upper bout. The custom designed EVH Wolfgang Alnico 2 humbucking bridge pickup delivers the perfect amount of punch and articulation with sweet sustain and thick chunky rhythms in a perfectly balanced EQ curve. The EVH Wolfgang Alnico 2 humbucker neck pickup serves up no-nonsense, balls to the wall overdrive and endless sustain without skimping on articulate cleans when the volume is rolled down. A custom designed low friction volume knob creates even-volume tapering for the smoothest volume swells, while the high friction tone knob will stay in place even if accidentally bumped. An added new feature comes in the way of a lower bout kill switch, allowing you to mute your guitar for those stutter, rhythmic effects - think "You Really Got Me."

Decked out with a "dive-bomb" certified EVH-branded top-mount Floyd Rose bridge, the locking tailpiece features fine tuners for each string and a patented EVH D-Tuna for switching back and forth from drop-D to standard tuning in an instant.

Features

• Series: 5150 Series Guitars
• Body Shape: 5150
• Color: Candy Apple Red Metallic
• Body Wood: Basswood
• Body Finish: Gloss Urethane
• Neck: Quartersawn Baked Maple
• Neck Construction: Bolt-On With Graphite Reinforcement
• Neck Finish: Hand-Rubbed Satin Urethane
• Fingerboard: Baked Maple
• Fret Size: Jumbo
• Number Of Frets: 22
• Position Inlays: Black Dot
• Side Dots: Black
• Nut Material: Floyd Rose R3 Locking
• Nut Width: 1.685" (42.8 Mm)
• Tuning Machines: EVH-Branded Gotoh
• Scale Length: 25.5" (648 Mm)
• Bridge: Top-Mount EVH-Branded Floyd Rose Locking Tremolo With EVH D-Tuna
• Pickup Configuration: HH
• Bridge Pickup: Direct Mount EVH Wolfgang Humbucking
• Neck Pickup: Direct Mount EVH Wolfgang Humbucking
• Controls: Volume (500k EVH Bourns Low Friction Pot) With Treble Bleed Circuit, Tone (250k EVH Bourns High Friction Pot)
• Control Knobs: Black Knurled With White Indicator
• Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge And Neck Pickups, Position 3. Neck Pickup
• Hardware Finish: Chrome
• Strings: EVH Nickel Plated Steel (.009-.042 Gauges)
• Case/Gig Bag: Optional EVH Striped Hardshell (P/N 022-6100-506); Optional EVH Black Gig Bag (P/N 022-1512-006)
• Case Included(Yes/No) : No(Sold Separately)
• Included Accessories: Tremolo Arm, Hex Keys & User Manual
