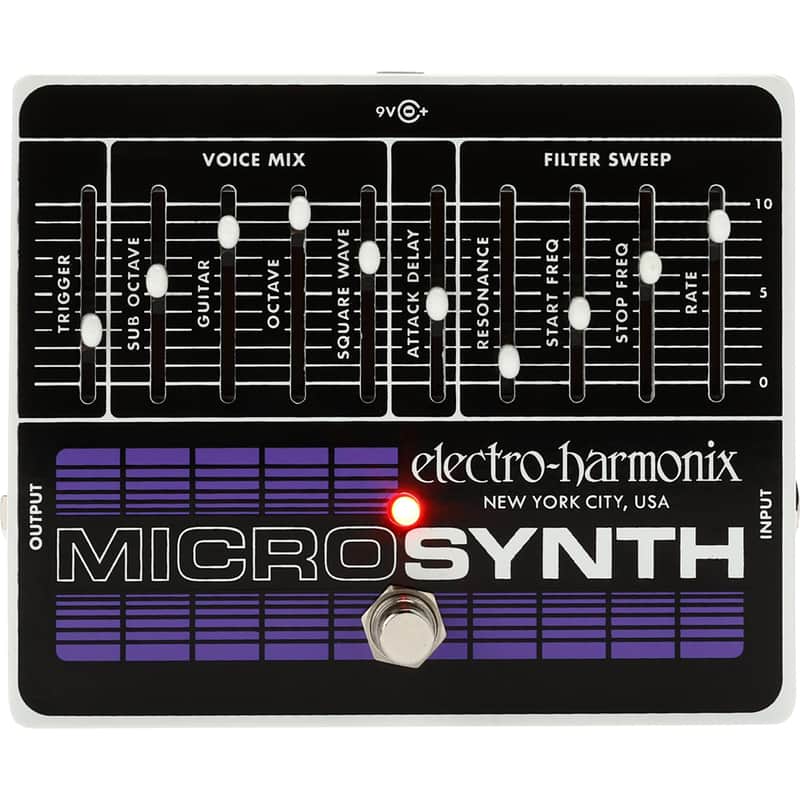

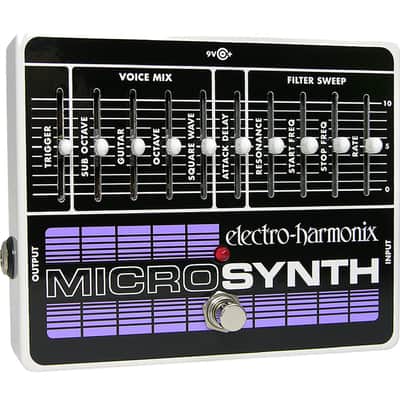

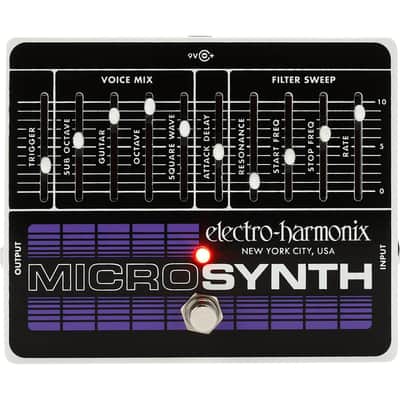

Electro-Harmonix Micro Synth Analog Guitar Microsynth Pedal

From the classic vintage sounds of the great early synthesizers to custom creations, the Micro Synth creates classic fat analog synth sounds!

The EHX Micro Synth can create some of the most popular synthesizer textures with its four voices: GUITAR, OCTAVE, SUB OCTAVE AND SQUARE WAVE, which are completely independent and fully mixable. The MICRO SYNTH can modify these signals with envelope control for a variety of "bowed" or "blown" sounds. In addition, a sophisticated swept filter control allows highly variable frequency adjustments to be applied to the overall output signal. When combined, these controls offer the user a creative capability that is virtually limitless.

Compact ten-slider layout lets the sonically adventurous guitarist dial in a virtually limitless array of analog synthesizer sounds: from percussive stabs to backwards-sounding bowed effects.

Product Highlights:

True bypass

All analog design

3-pole analog resonant filter

4 voice mixer section mixes: sub octave, original, octave up and square wave

Square wave voice can be used as a distortion tone

Start, stop filter frequency sliders with adjustable rate for full control over the filter's sweep direction and speed

Adjustable filter resonance control

Adjustable attack time control for fading-in notes

Tough and compact die-cast chassis

Power adapter included

Product Features:

Trigger: Determines the input volume at which the filter circuits will "turn on".

Sub Octave: Controls the output volume of the Sub-Octave.

Guitar: Controls the output volume of the input signal through the filter.

Octave: Controls the output volume of the Octave.

Square Wave: Controls the output volume of the Square wave.

Attack Delay: Determines the time required for the voice signals to reach full volume.

Resonance: Affects the degree of sharpness, or "Q" of the filter.

Start Frequency: Determines the frequency at which the filter sweep begins.

Stop Frequency: Determines the frequency at which the filter sweep ends.

Rate: Determines the speed at which the filter sweeps from START FREQUENCY to STOP FREQUENCY.

Output Jack: The Output jack outputs the audio signal.

Input Jack: Plug your instrument or the output of another effects pedal into this 1/4" jack.

Footswitch and Status LED: The Footswitch selects either effects mode or True Bypass. When the Status LED is lit, the Micro Synthesizer is in effect mode.

Product Specifications:

Circuit: Analog

Bypass: True Bypass

Audio: Mono

Power Supply: 9.6VDC-200mA power adapter included

Dimensions (in): 5.75 x 4.75 x 2.5

Current Draw: 55mA

Year Released: 2008

UPC: 683274010793
