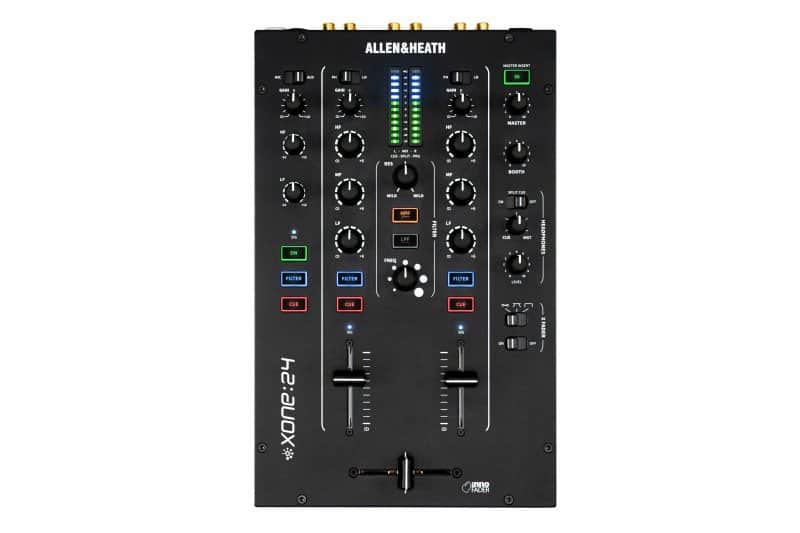

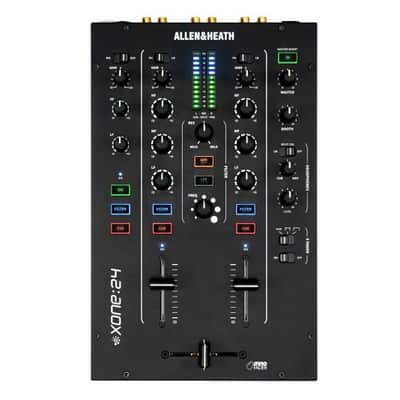

Allen & Heath XONE:24 Analogue 2+1 Channel DJ Mixer

Analogue signal path:

o Low-noise, high-gain RIAA preamp.

o 3-band isolator EQ.

o Warm pure analogue summing.

o Matched Phono/Line inputs.

Classic Xone:VCF (Voltage Controlled Filter)

Mini InnoFADER crossfader.

Master insert / FX with switch.

Tactile illuminated switches with backlight.

Latching/non-latching Cue modes.

RGB chromatic channel meters

Type Analogue

Channels 2 + 1

EQ 3-band: +6dBu / Total Kill (CH 1 & 2)

High Frequency 3.5kHz

Mid Frequency: 1.1kHz

Low Frequency: 500Hz

2-band: +/- 12dBu (AUX CH)

High Frequency 900Hz

Low Frequency: 750Hz

Line Inputs 3 x RCA (CH 1 & 2 + Aux CH)

Phono Inputs 2 x RCA (CH 1& 2)

Mic Input 1 x Combi (XLR + TRS)

Master Output 1 x XLR (Balanced)

Booth Output 1 x RCA (Un-balanced)

Record Output 1 x RCA (Un-balanced)

Master Insert 1 x RCA MASTER INSERT FX Loop*

*Send/Return I/O 1 x RCA MASTER INSERT Send

1 x RCA MASTER INSERT Return

*FX Send 1 x Master Insert IN

Filter 1 x Voltage Controlled Filter

HPF / LPF

Adjustable Frequency & Resonance

Assignable CH 1 & 2 + Aux CH

Headphones 1 x 1/4"

1 x 3.5mm

Split Cue Monitoring

Channel Faders 45mm Voltage Controlled Amplier

Chanel Meters Single tri-colour LED

Mix Meters 12 LED

X-Fader 45mm VCA mini innoFADER®

X-Fader Curve Settings 2 Types (Fast-cut/Blend)

Earth Ground Terminals x 1

Headroom +18dB

DC Mains 100 to 240V

AC 50/60Hz

Consumption 35W max

Mains Adaptor 2 pin DC socket with cable clamp
