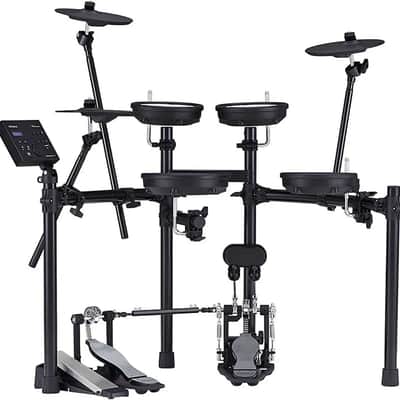

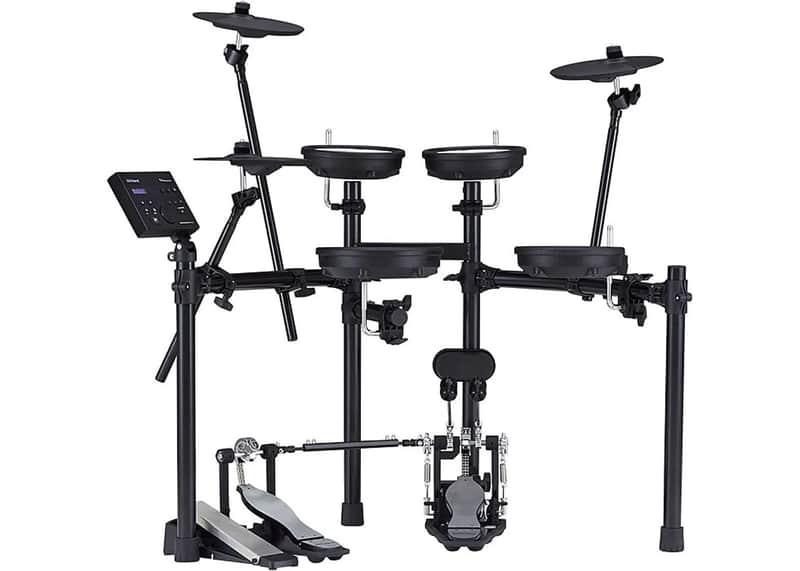

The Most Compact and Affordable Kit in the TD-07 Series

Compact and keenly priced—but with the professional tone, feel, and features to improve your drumming fast—the TD-07DMK is the entry point to the V-Drums TD-07 series. While the pads are smaller than the kits higher up the range, you’ll appreciate the satisfying feel from the PDX-8 snare and three PDX-6A toms, all featuring Roland’s ultra-quiet, double-ply mesh heads. The compact CY-5 crash and ride cymbals let you play with expression where space is tight, while a stand-mounted kick pad helps create the TD-07 range’s smallest footprint to make the perfect home kit.

Despite the compact size, you can still think big thanks to creative features that stretch beyond any acoustic kit. Call up authentic drum kits covering a range of styles and genres, and use deep tone editing tools to customize sounds just how you like. There’s also an onboard Coach mode to help you learn, Bluetooth® connectivity so you can play along with music streamed from your phone, tablet or computer, and USB to connect with computer-based recording software.

Specifications

Kit configuration (*1)

Kick: KD-2

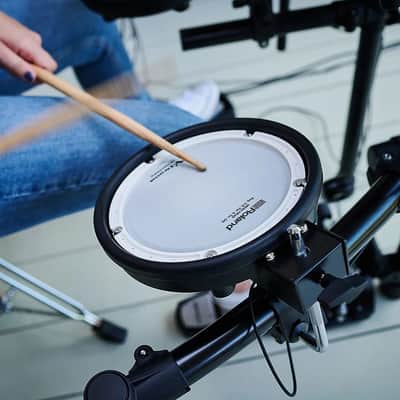

Snare: PDX-8

Hi-hat: CY-5

Hi-hat control pedal: Half-open stroke detectable

Tom: PDX-6A x 3 *2

Crash: CY-5

Ride: CY-5

Drum stand: Four-post type rack stand

Drum kits

50 (Preset: over 20)

Instruments

143

Effect Types

Pad Equalizer: each pad

Overhead Mic Simulator

Room

Multi-Effects: 1 system, 30 types

Coach functions (5 modes)

Time check (easy)

Time check (hard)

Quiet count

Auto up/down

Change-up

Metronome

Tempo (20--260)

Rhythm type (5 types)

Sounds (15 types)

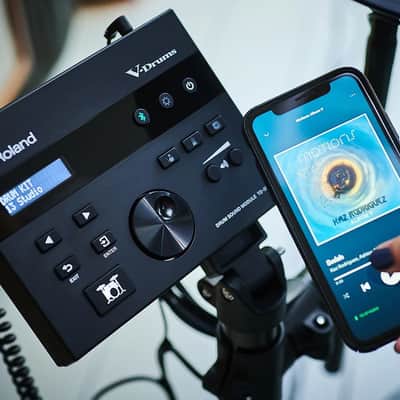

Bluetooth

Supported standards: Bluetooth Ver 4.2

Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)

Codec: SBC (Support to the content protection of the SCMS-T method)

Display

16 characters x 2 lines LCD (with backlight)

Connectors

OUTPUT/PHONES jack: Stereo miniature phone type

MIX IN jack: Stereo miniature phone type

USB COMPUTER port: USB B type

TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)

USB COMPUTER

Speed: Hi-speed USB

Driver mode: Generic, Vender

Protocol: USB MIDI, USB Audio *3

USB Audio

Sampling Rate (original): 44.1 kHz

Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz

Record: 2 channels

Playback: 2 channels

Power supply

AC adaptor (DC 12 V)

Current draw

250 mA

Accessories

Setup Guide

Owner's Manual

Leaflet "USING THE UNIT SAFELY"

AC adaptor

Special connection cable

Options (sold separately)

Additional crash cymbal (Crash2): CY-5, MDY-Standard *4

Personal drum monitor: PM series

V-Drums accessory package: DAP-3X

V-Drums mat: TDM series

Noise eater: NE series

Size & Weight

Dimensions

1,200 (W) x 1,100 (D) x 1,200 (H) mm

47-1/4 (W) x 43-5/16 (D) x 47-1/4 (H) inches

(including sound module, kick pad, kick pedal and drum throne)

Weight

18.0 kg / 39 lbs 11 oz

*1 Kick pedal and drum throne are not included.

*2 Rim-shot is not supported.

*3 In order to use USB audio, switch to vendor mode and use the vendor driver.

*4 MDY-Standard is additionally required for mounting a CY-5 on the stand.
