Celestion CVF18VJD 1600w 18" Subwoofer w/5" Voice Coil+Home Theater System

Package Includes:

• (1) Celestion CVF18VJD 1600w 18" Subwoofer w/Cast Aluminium Chassis+5" Voice Coil
• (1) Rockville HTS45 800w 5.1 Channel Bluetooth Home Theater Audio System+Subwoofer

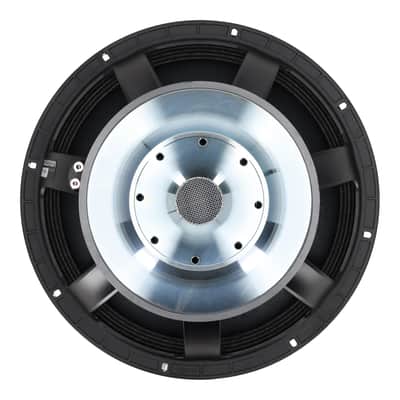

Description of CF18VJD 8 ohm:

18-inch, cast aluminium chassis, ferrite magnet subwoofer.

Features:

• Airflow vented magnet assembly for dynamic heat dispersion
• Twin demodulation rings
• Longer coil for greater control at high excursion
• Optimised double suspension

Specifications:

• Nominal diameter: 457mm / 18in
• Power rating: 1600W
• Continuous power rating: 3200W
• Rated impedance: 8?
• Sensitivity: 97dB
• Frequency range: 25-1500Hz
• Chassis type: Cast aluminium
• Magnet type: Ferrite
• Magnet weight: 4.93kg / 174oz
• Voice coil diameter: 125mm / 5in
• Voice coil material: Round copper
• Former material: Glass fibre
• Cone material: Carbon and kevlar loaded paper
• Surround material: Cloth-sealed
• Suspension: Double
• Gap height (Hg): 12mm / 0.47in
• VC winding height (Hvc): 30mm / 1.18in
• Additional impedances: 4O

Packed Dimensions & Weight:

• Single pack size W x D x H500mm x 500mm x 255mm / 19.7in x 19.7in x 10in
• Single pack weight24kg / 52.8lb

Parameters:

• Sd: 1134.12cm2 / 175.79in2
• Fs: 34.50Hz
• Mms: 265.42g / 9.36oz
• Qms: 4.573
• Qes: 0.332
• Qts: 0.309
• Re: 6.13?
• Vas: 145.81l / 5.15ft3
• BI: 32.59Tm
• Cms: 0.08mm/N
• Rms: 12.59kg/s
• Le (at 1kHz): 1.87mH
• Xmax: 12mm / 0.47in

Mounting Information:

• Overall diameter: 462mm / 18.19in
• Overall depth: 233mm / 9.2in
• Cut-out diameter: 416mm / 16.38in
• Mounting hole dimensions: 11x7mm / 0.43x0.28in
• Number of mounting holes: 8
• Mounting hole PCD: 432-441mm / 17.0-17.36in
• Unit weight: 23kg / 50.6lb

Measurement Note:

• Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
• Continuous power rating: Defined as 3dB greater than the AES rating.
• Sensitivity: Measured on axis at 1W, 1m in 2p anechoic environment.
• Parameters: Measured after unit subjected to pre-conditioning signal.
• Xmax: 0.5*(Hvc-Hg) + 0.25*Hg

How To Set Up Your HTS45:

Video of HTS45:

What's in the box:

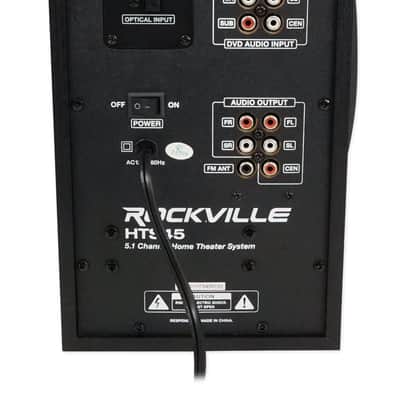

• Subwoofer with built in receiver

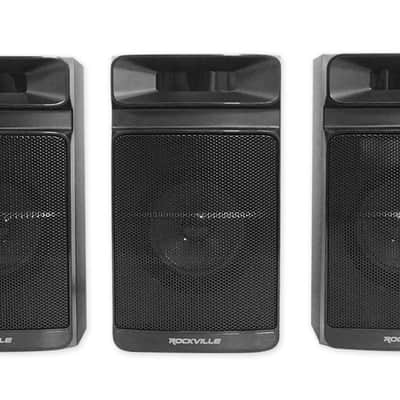

• (2) Front Speakers
• (2) Rear Speakers
• (1) Center Channel Speaker
• Remote Control
• Signal Cable
• Antenna Cable
• Speaker Wall Mounting Kits
• All wiring to connect speakers to the receiver - 30 feet wires for the rear speakers, 12 feet cables for the front speakers and 12 feet cables for the center channel speaker
• Manual
• Warranty Card

Description:

The Rockville HTS45 is an all in one 5.1 channel complete home audio system. It includes a powered subwoofer that has a loud and clean bass response. The subwoofer also has a built in receiver and amplifier that will power the 5 wall mounted speakers.

The subwoofer has Bluetooth built in as well as USB and SD playback. There are also 2 sets of RCA sux inputs to connect any other audio devices to this system. There are also 6 DVD inputs to allow you to integrate with a DVD player.

The main goal when developing this item was to get the best sound quality. This item delivers. The sound is very well-tuned and balanced. This has 800 watts peak output and when you crank the volume it gets extremely loud! The best part is that even at max volume there is no noticeable distortion. The sound is clean at all volume levels.

Features:

• Rockville HTS45 800w 5.1 Channel Bluetooth Home Theater Audio System+Subwoofer
• 800 Watts Peak Power
• 400 Watts Program Power
• 200 Watts Continuous RMS Power
• 5.25" Subwoofer with Built-In Receiver
• 3" Center Channel Speaker
• 3" Full Range Front Speakers
• 3" Full Range Rear Channel Speakers
• Top Quality MDF Wood Cabinets with Plastic Front Panels
• Built-In FM Receiver with Amazing Reception
• 5 Preset Equalizer curves
• You can independently control the volume of each speaker and the subwoofer
• Bluetooth v5.0
• Optical Input
• Coaxial Input
• USB Input (max file size 64Gb)
• SD Input (max file size 64Gb)
• 2 ¼" MIC Inputs with Echo function for karaoke
• 5 RCA Audio Outputs connect to the 5 speakers
• 6 RCA DVD Audio Inputs
• 2 RCA AUX Inputs
• FM Antenna Input
• Full Function Remote
• Zero distortion can be heard even with volume and bass settings all the way up!
• The sound on this system is better than anything even that cost twice the price!
• Frequency Response: 300Hz - 20KHz
• Amplifier: Class AB, very efficient amplifier with top components!
• Signal to noise ratio: =50dB
• Max SPL: 106 dB @ 1w/1m
• Input Voltage: AC 120V/60Hz
• Subwoofer Dimensions in Inches: 6.69" W x 13.58" D x 12.20" H
• Satellite Speaker Dimensions in Inches: 4.53" W x 3.54" D x 7.87" H
• Net Weight: 18.56 LBS (Shipping Weight: 20.98 LBS)
