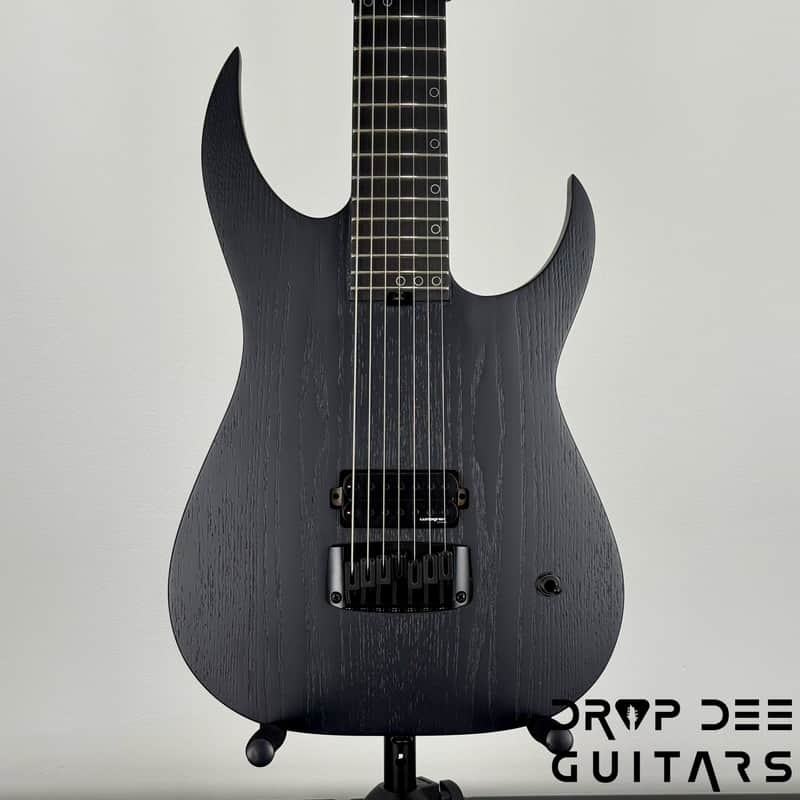

The Schecter Diamond Series Keith Merrow KM-7 MK-III EX Baritone in Satin Black Open Pore is a no-compromise modern metal machine engineered for extreme clarity, devastating low-end, and absolute precision. Designed in close collaboration with Keith Merrow, this 7-string baritone version expands the platform’s sonic reach while maintaining the stripped-down, performance-first philosophy that defines the MK-III line.

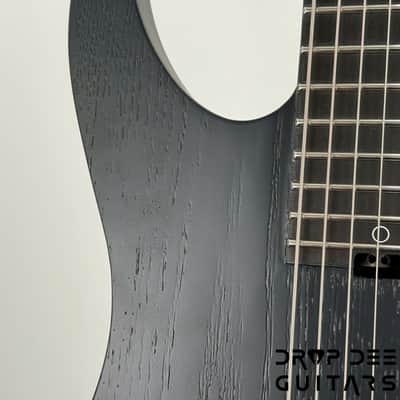

Built around a resonant mahogany body with an ash top, the KM-7 MK-III EX delivers a powerful blend of warmth, punch, and articulation. The 28” baritone scale length ensures exceptional string tension and note definition on the lowest registers, making it ideal for modern extended-range riffing and complex high-gain work. Finished in a stealthy Satin Black Open Pore, the guitar feels raw, organic, and purpose-built.

The thru-neck construction with Ultra Access provides massive sustain and seamless upper-fret reach, while the 3-piece mahogany neck—reinforced with carbon fiber rods—offers outstanding stability under heavy string tension. Carved into a fast Thin “C” profile (20mm at the 1st fret, 21mm at the 12th), the neck pairs perfectly with an ebony fingerboard, 12”–16” compound radius, and 24 X-Jumbo stainless steel frets for effortless speed, accuracy, and durability. Aluminum offset/reverse circle inlays and Luminlay side dots add both visual identity and practical stage visibility.

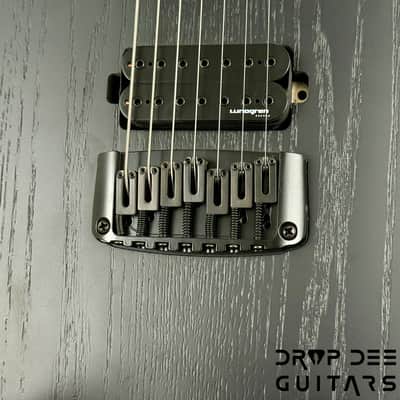

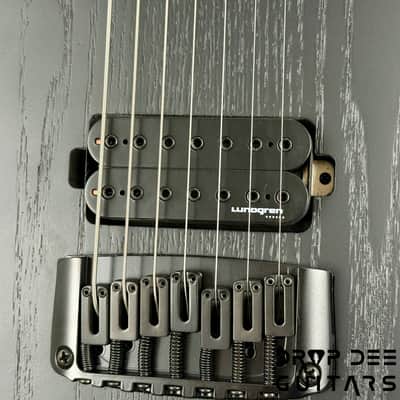

Electronics are intentionally minimal and brutally effective. A single Lundgren Black Heaven bridge humbucker delivers articulate, aggressive output with exceptional note separation, ensuring tight, percussive attack even under extreme gain. Control is handled by a single killswitch, giving instant on/off signal control for stutter effects and total sonic authority.

Premium hardware completes the build, including a Hipshot 7-string bridge, Schecter locking tuners, and a Graph Tech XL Black Tusq nut, ensuring rock-solid tuning stability and sustain. Factory-strung with Ernie Ball 7-string (.009–.062) strings, the KM-7 MK-III EX arrives ready for modern baritone destruction straight out of the case.

Condition: This is a brand new Schecter Diamond Series Keith Merrow KM-7 MK-III EX Baritone in Satin Black Open Pore. It includes Schecter’s full manufacturer warranty and arrives fully dialed-in with our Pro-Tech Setup, so it’s ready to perform immediately. Drop Dee Guitars is an authorized Schecter dealer.

Pro-Tech Setup: Every guitar we sell receives our Pro-Tech setup, including:

• Neck adjustment for proper relief
• Action setup for buzz-free playability
• Intonation across all frets
• Hardware inspection and tuning stability check
• Full electronics check and play-test

Your KM-7 MK-III EX will arrive performance-ready with crushing low-end, tight response, and flawless playability.

Specs

• Guitar Color: Satin Black Open Pore
• Body Material: Mahogany
• Top Material: Ash
• Construction: Thru-Neck with Ultra Access
• Top Contour: MK-III Radius Top
• Neck Material: 3-Piece Mahogany with Carbon Fiber Reinforcement Rods
• Neck Shape: Thin “C”
• Neck Thickness: 20mm (1st fret) / 21mm (12th fret)
• Scale Length: 28”
• Fingerboard Material: Ebony
• Fingerboard Radius: 12”–16” Compound
• Inlays: Aluminum Offset / Reverse Circles
• Side Dots: Luminlay Glow in the Dark
• Frets: 24 X-Jumbo Stainless Steel
• Nut: Graph Tech XL Black Tusq
• Nut Width: 48mm
• Truss Rod: 2-Way Adjustable with Spoke Wheel at Neck Heel
• Bridge: Hipshot 7-String
• Tuners: Schecter Locking
• Hardware Color: Satin Black
• Bridge Pickup: Lundgren Black Heaven
• Controls: Single Killswitch (On/Off)
• Strings: Ernie Ball 7-String (.009/.011/.016/.026/.036/.046/.062)
