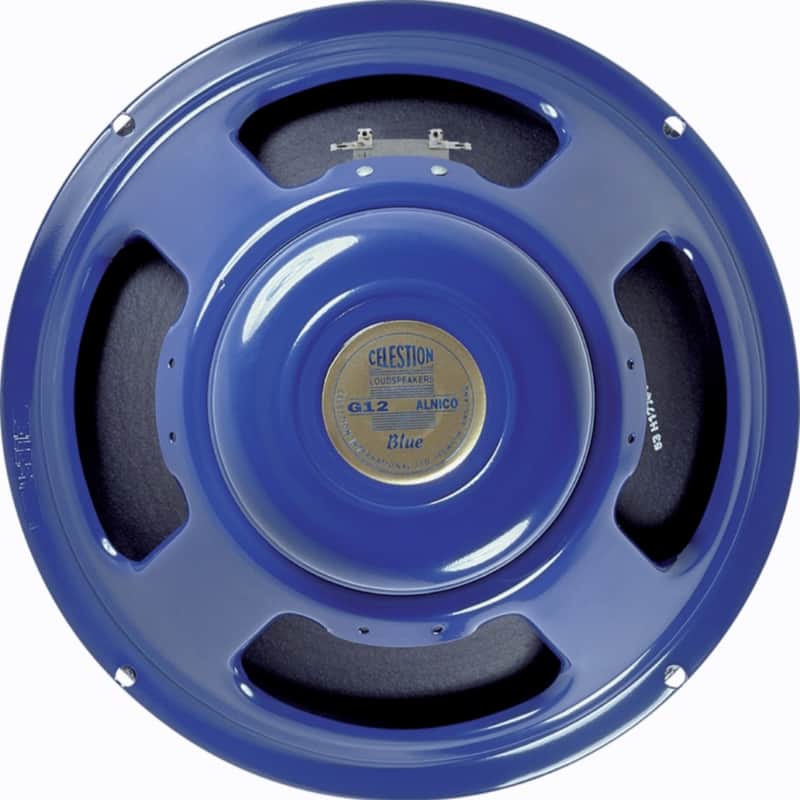

12-inch classic alnico guitar speaker

This classic guitar speaker actually started life as a radio speaker that was modified specifically for use in electric guitar amplifiers. In its original G12 guitar speaker incarnation it appeared in several colour variations, but it was the Blue version, known as T.530 and fitted as standard into Vox AC30 amps that secured its place in guitar tone history.

The Blue found favour with notable guitarists like Brian May due to its glorious dampened attack warm lows mellow upper-mids and brilliant bell-like top-end. When coupled with a suitable amplifier it evokes rich definition and develops beautiful musical compression when pushed. According to tone enthusiasts worldwide the Blue is the benchmark for guitar speaker perfection.

Features

• 12in Diameter
• 8Ω Rated impedance
• 100db Sensitivity

Specs

Nominal diameter: 305mm / 12in

Power rating: 15W

Rated impedance: 8Ω

Sensitivity: 100dB

Chassis type: Pressed steel

Magnet type: Alnico

Voice coil diameter: 1.75in / 44mm

Voice coil material:Round copper

Frequency range: 75-5000Hz

Resonance frequency, Fs: 75Hz

DC resistance, Re: 6.4Ω

Mounting Information

Cut-out diameter: 283mm / 11.1in

Diameter: 309mm / 12.2in

Magnet structure diameter: 128mm / 5.0in

Mounting hole dimensions: 7.9mm / 0.31in Ø

Mounting hole PCD: 297mm / 11.7in

Number of mounting holes: 4

Chassis depth (inc gasket): 92mm / 3.63in

Magnet depth: 73mm / 2.87in

Overall depth: 165mm / 6.5in

Unit weight: 4.2kg / 9.3lb
