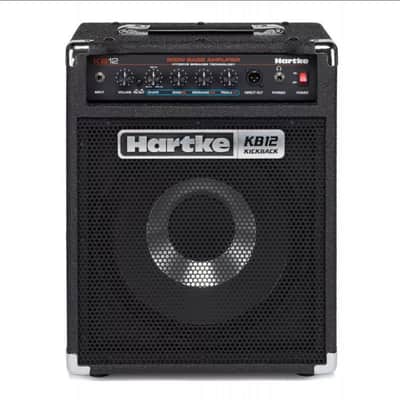

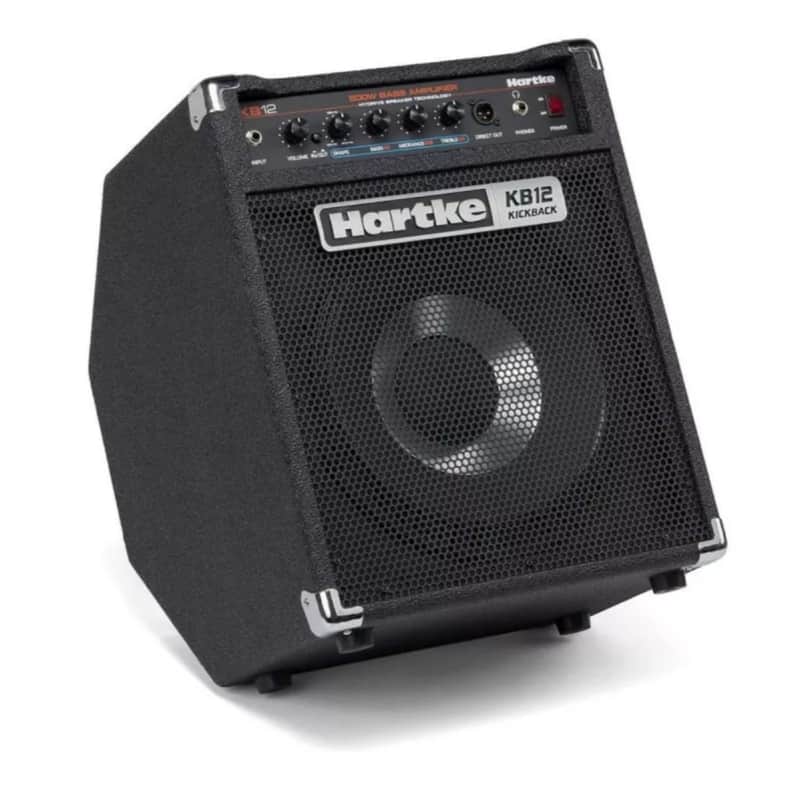

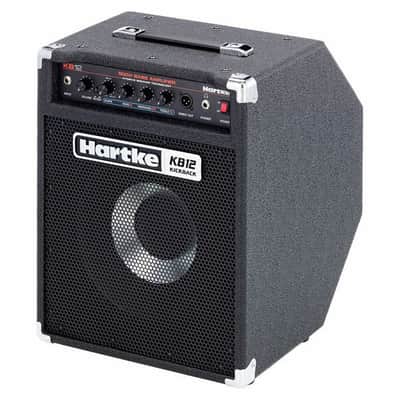

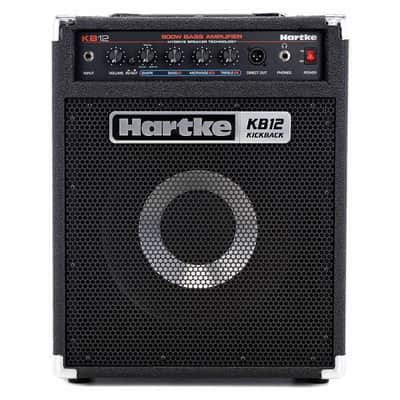

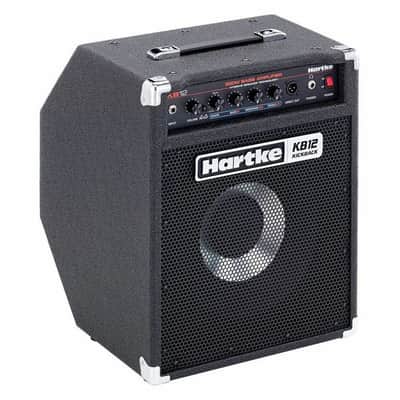

Kickback KB12 12" Lightweight Bass Combo

The Kickback KB12 features a 500-watt, high-efficiency Class D amplifier and a 12" neodymium magnet Hydrive Series speaker. Hartke Hydrive's unique hybrid cone speaker is constructed with an outer paper cone that produces deep and warm low frequencies, and an inner aluminum cone that produces mids that are cutting yet sweet. The specially designed cabinet can be used flat on the floor or in a "kickback" position for increased high-end clarity and directionality. The amplifier design, along with neodymium speaker magnets, combine tremendous power with a lightweight design.

The HyDrive Design

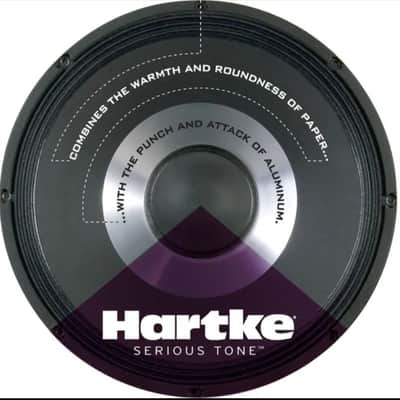

The KB12's 12" HyDrive speaker features meticulously crafted paper/aluminum hybrid cone drivers. The hybrid construction delivers an exceptional blend of warmth and attack that can't be matched by traditional all-paper woofers. The use of rare-earth neodymium magnets also helps maintain lightweight portability without sacrificing any of the legendary Hartke attack.

Shape Your Tone

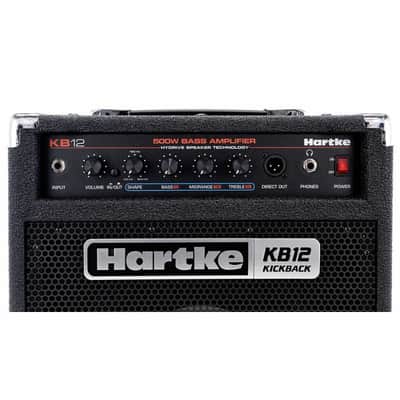

Designed to produce a responsive bass tone that's both tight and warm, the KB12 provides users with comprehensive tone control. The Shape control and full 3-band EQ allow for quick tonal adjustments. When activated, the Shape knob selects the frequency range of a unique, fixed EQ curve, resulting in a greater variety of color and harmonics.

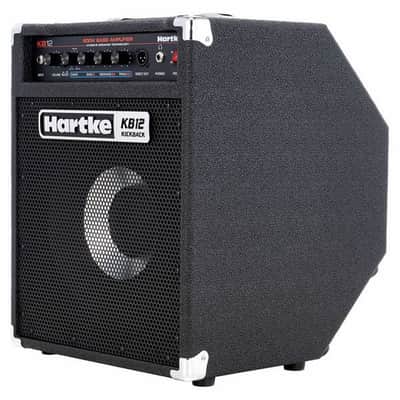

Kickback Versatility

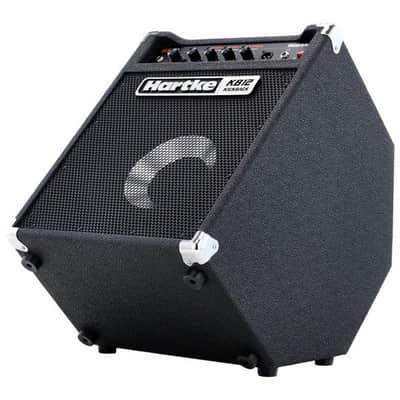

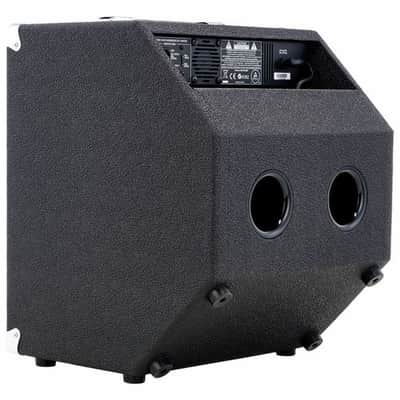

In addition to the upright position, the KB12 can be placed in a "kickback" position for superior directivity and increased high-end clarity on stage. With a headphone output for home practice, an XLR direct output for live performance, and a lightweight Class D amplifier, the KB12 is the answer for all bass players.

Features

• Lightweight Class D amplifier that weighs 28lb
• 500 watts of power
• 12" HyDrive paper/aluminum hybrid cone driver
• Neodymium magnets
• 2-way (upright and "kickback") cabinet design
• Unique Shape EQ knob with variable filter
• Full 3-band EQ
• XLR direct output
• 1⁄4" headphone output
• 1⁄4" passive/active bass input

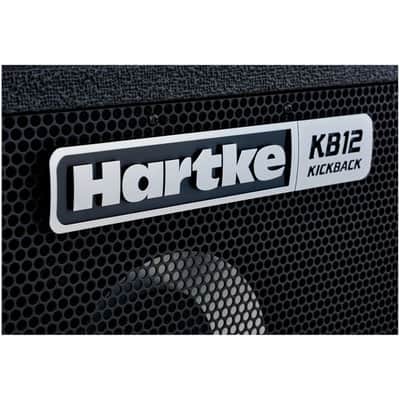

• Perforated steel grille

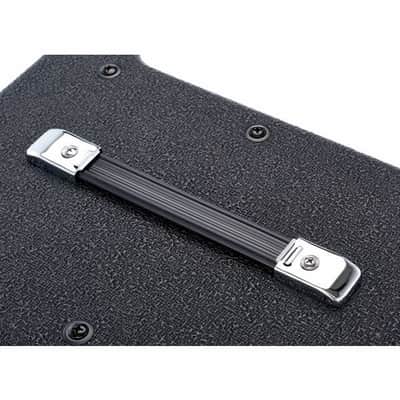

• Molded strap carry handle

Specifications

Rated Output Power 500 watts Peak / 250 watts RMS

Rated Input Level 77.46mv rms (@1kHz)

Total Harmonic Distortion 0.54% (@1dB below rated output, 1kHz typical)

Signal To Noise Ratio 1W/49.3dBu (1Wrms @1kHz)

Signal Gain Speaker Output 37.1Vrms

Signal Gain to Direct Out 4.2Vrms

Bass Control 70Hz

Midrange Control 700Hz

Treble Control 5kHz

Shape Control 100Hz - 900Hz

Dimensions 15.7” x 14.75” x 18.14” / 399mm x 375mm x 461mm

Weight 28.2lb / 12.8kg
