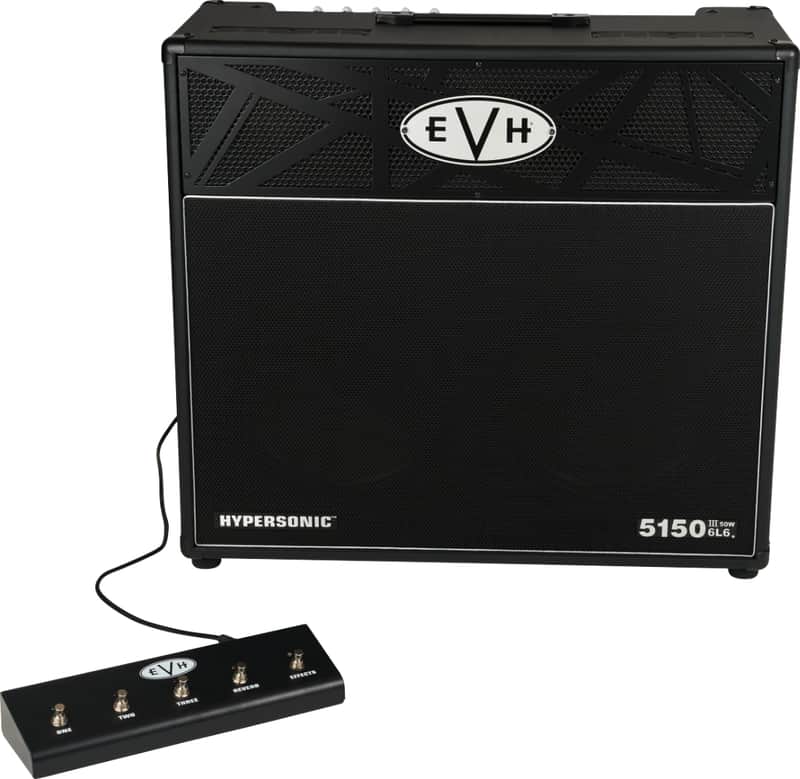

The EVH 5150III® Hypersonic™ 6L6 2x12 combo amp uses massive digital processing power to create a faithful model of the EVH 5150III 6L6 tube combo.

A high-performance digital power amp achieves the headroom and dynamic range of a real tube amp, and when paired with Celestion® speakers and plywood closed-back cabinetry, the result is EVH tone, volume and dynamics virtually indistinguishable from the all-tube original.

These changes make the 5150III Hypersonic combo weigh substantially less than the all-tube version. Added concentric EQ controls for channels one and two, and independent noise gate controls for each channel, enhance the user experience. The included footswitch has also been updated to allow both reverb and effects loop selection. Other features include a power selector for full power and five attenuated settings, balanced XLR line output with impulse response (IR) cabinet simulations, and a mute switch for silent stage or recording use. The EVH 5150III Hypersonic amps are available in black vinyl covering.

General

Series

EVH® 5150III® Hypersonic™ Combos

Color

Black

Amplifier Type

Digital

Country Of Origin

CN

Electronics

Control Panel

Ch. 1: Independent Gain, Low, Mid, High, Noise Gate Trim & Volume; Ch. 2: Independent Gain, Low, Mid, High, Noise Gate Trim & Volume; Ch. 3: Independent Gain, Low, Mid, High, Noise Gate Trim & Volume

Inputs

One - 1/4", MIDI (rear)

Headphone Jack

1/4" Stereo

Line Out

One - XLR

Channels

Three - (Clean, Crunch and Lead)

Effects

Reverb

Effects Loop

1/4" (Send/Return)

Connectivity

USB-C® Recover/Firmware Update

Connection Type

RJ-45

Voltage

120V (Also Available in 100V, 110V, 220V, 230V, 240V)

Wattage

50 Watts

Hardware

Control Knobs

White Chicken-Head Style Pointer and Black Round Inner on Channel 1/2

Amplifier Covering

Vinyl

Cabinet Material

11-ply 15mm plywood

Grille Cloth

Woven Front Panel with Large EVH® Logo

Handle

Molded Plastic Top (1)

Casters

Optional P/N 0994000000

Front Panel

White

Reverb Tank

NA

Reverb Tank Type

NA

Rear Control Panel

Power Input, Power Switch, Mute Switch, Headphone, MIDI, USB-C (Firmware Update), Footswitch, Effects Loop, Output Power, Cab Sim Selector, Line Out Control, Ground Lift

Speakers

Speakers

Two - 12" Celestion® EVH® G12H 30W Anniversary Series

Speaker Wattage

30 Watts

Total Impedance

16 ohms

Measurements

Shipping Dimensions

18.00x28.90x31.70 IN

Shipping Weight

66.50 LB

Shipping Length

31.70 IN

Shipping Height

18.00 IN

Shipping Width

28.90 IN

Accessories

Included Accessories

5-Button Footswitch w/ cable, IEC Power Cable.

Footswitch

5-Button Footswitch Included
