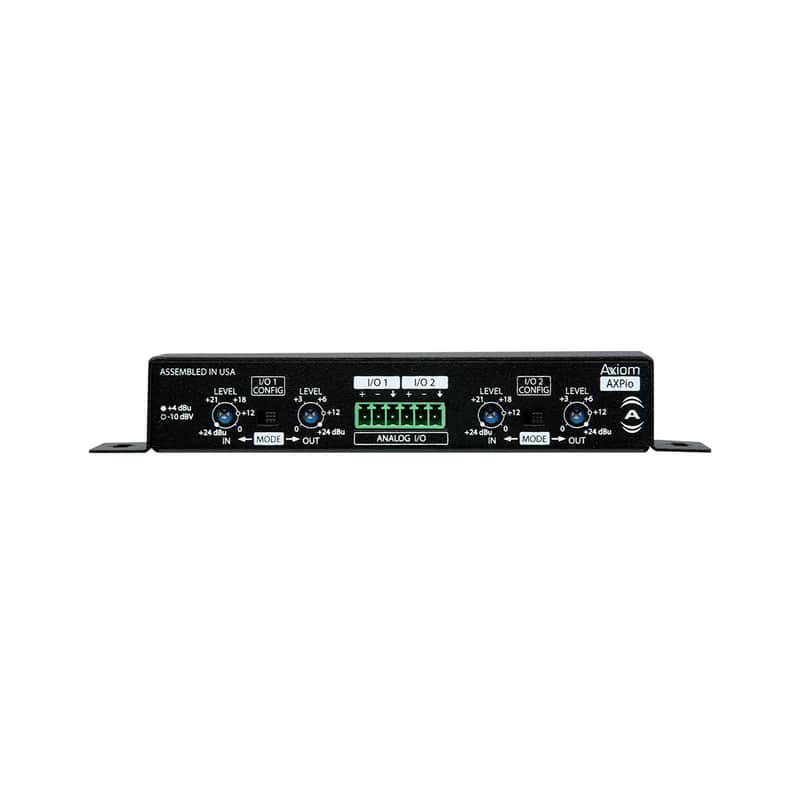

QSC Axiom AXPio Expansion Module

Expand Connectivity with the Attero Tech by QSC Axiom AXP2O Expansion Module

The Attero Tech by QSC Axiom AXP2O expander unit pairs with Axiom devices (ML1, unBT2A) to provide balanced mono or stereo analog audio outputs on 3-pin de-pluggable connectors for easy connection to commercial audio equipment, including QSC Premium Business Music mixers and amplifiers.

• Proprietary analog extension solution leverages unshielded twisted pair cabling (CAT 5/6) to transmit two balanced audio channels, RS-232 control and 24 V DC power for audio signal extension applications
• Provides RS-232 control to one device
• Analog Output: Two balanced line-level analog outputs for connectivity to mixers, amplifiers and signal processors
• Selectable sum to mono option for both inputs
• LED indication of power status

Applications

Hospitality • House of Worship • Fitness Facilities • Education

SPECIFICATIONS

Audio Outputs

• Connector Type: 3.81 mm, 3-position de-pluggable terminal blocks
• Input Impedance: Mic 2k ohm, Line 10k ohm
• Maximum Input Levels: +20 dBu
• THD+N: <0.05% at 1 kHz, -3 dBFS input, 20 Hz – 20 kHz
• Frequency Response: 20 Hz – 20 kHz, +/- 1 dB
• Dynamic Range: >100 dB

Axiom Port

• Physical Layer: Analog audio, RS-232 control, 24 V DC power
• Connector(s): 8P8C
• Cable Quality: CAT-5e or higher, UTP

Power Specifications

• DC Power: 24 V DC (center-positive barrel jack)
• Power Consumption: <30 mA at 24 V / 0.72 W

General

• Dimensions (H x W x D): 5.6 x 4.2 x 1.7 in (142.2 x 106.7 x 43.2 mm)
• Weight: 0.15 lb (0.07 kg)
• Certifications: WEEE, RoHS, REACH
• Operating Temperature: 0 to 40° C

Control Port

• Connector Type: 3.81 mm, 3-position de-pluggable terminal blocks
• Physical Layer: RS-232

Manufacturer: QSC Audio
Model: AXP2O
SKU: I640328-N-1-WHXC
