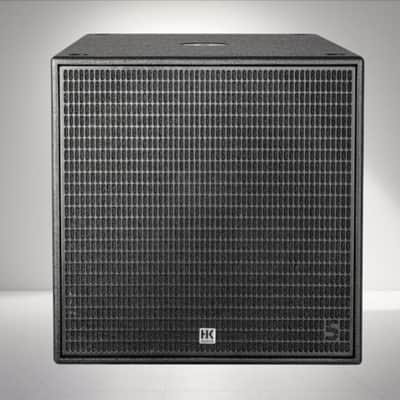

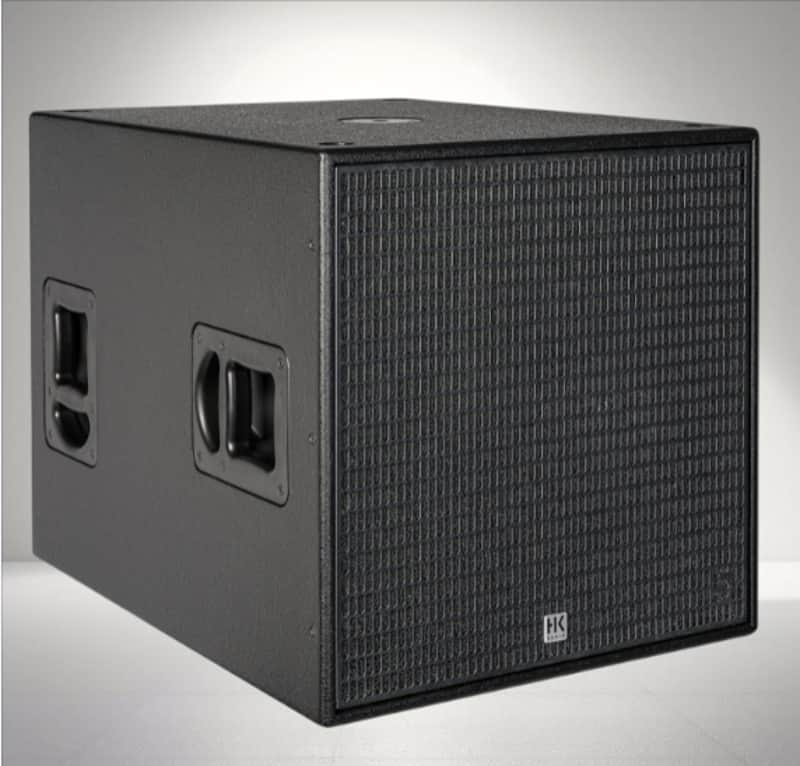

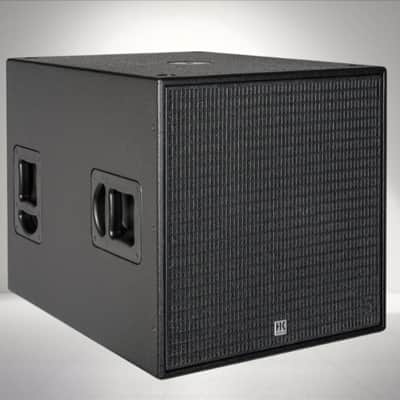

HK LINEAR-5-MK2-118S-HPA 3000 Watt 18" HP Active Subwoofer

Most powerful subwoofer in the LINEAR 5 MK II series with significantly more energy in the low-end range. PowerCon connections with link for easy cabling.

• Max. SPL @ 10% THD: 130 dB half space (36 Hz – 100 Hz averaged)
• Max. SPL peak @ 10 % THD: 131 dB half space
• Frequency response +/-3 dB: 36 Hz – X-over
• Frequency response -10 dB: 33 Hz – X-over
• Power amp output (rms/peak): 1,500 / 3,000 W
• Amp type: Class D
• LF driver: 1x 18", 4" voice coil
• Low-/mid speaker: N/A
• HF driver: N/A
• Horn directivity: N/A
• Active crossover frequency: N/A
• Maximum input level: +20 dBu
• Analog inputs: 2x XLR combo balanced
• Analog thru: 2x XLR balanced
• DSP Out: 1x XLR balanced
• Network port: Ethercon RJ45, 1x In, 1x Thru
• Filter presets: Front, Cardioid 1:1 vertical, Cardioid 2:1 vertical, Remote
• Remote software: DSP CONTROL (Windows, Mac OS)
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
• Sample rate: 48 kHz
• System latency: <= 2.6 ms
• Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
• Power consuption: 2.5 A / 100–240 V nominal according to EN 62368-1
• Angels up (Monitor angle): N/A
• Pole mount: 1x M20
• Rigging points: N/A
• Carrying handles: 4x HK Audio MultiGrip
• Housing: Birch multiplex
• Finish: Black acrylic enamel
• Front grille: 2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD): 60 x 60,8 x79 cm 23-5/8 x 23-15/16 x 31-7/64"
• Weight: 56,8 kg / 125,22 lbs
