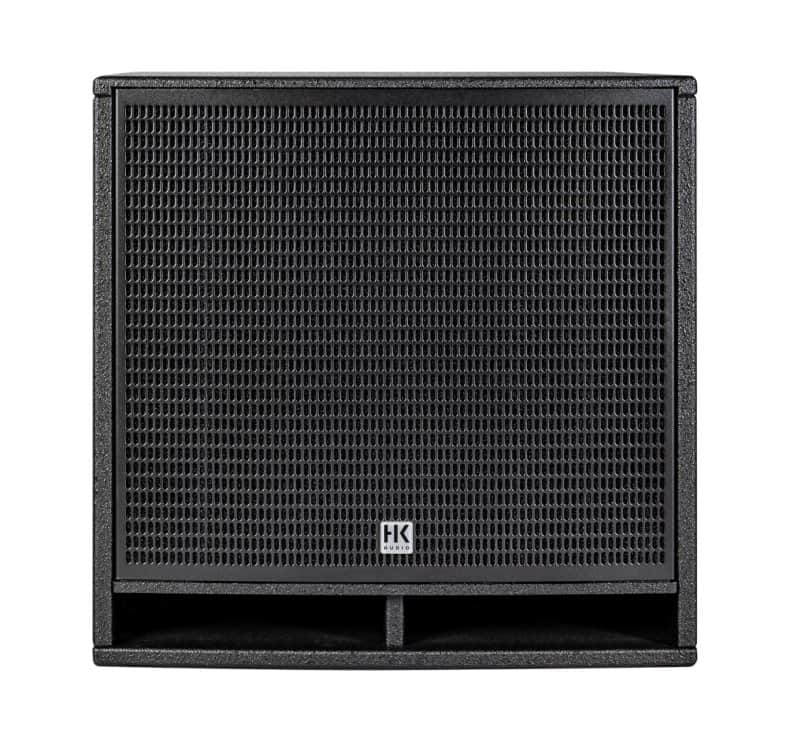

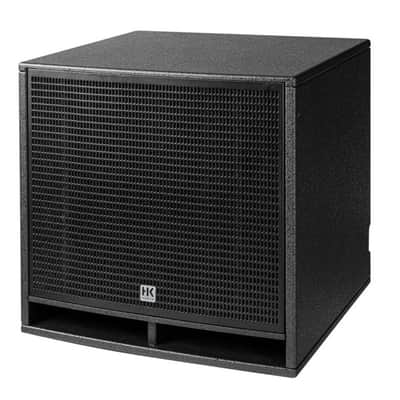

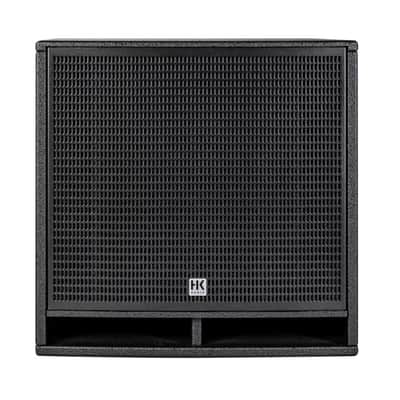

HK Audio HK FINEO-FO-S112-BLK 1200 Watt 12" Install Subwoofer. Black

Very compact subwoofer with 12? woofer, 2.5? voice coil and 50 Hz tuning frequency. Ideal low-end support with powerful bass and high sound pressure as a system subwoofer or surround LFE for installations with compact speakers like the FO?5. Easy to integrate in environments with limited space. The cable feed-through on the rear, with cut-outs to the left, right or bottom, allows cables to be routed close to the wall, meaning the subwoofer can be placed against the wall without gaps. A secondary grille protects the bass reflex port from accidental or deliberate insertion of foreign objects. A ball-impact resistance certificate in line with DIN?18032-3 is provided for installations in sports facilities.

Concept: Passive subwoofer

Cabinet principle: Bass reflex

Power handling RMS: 600 W

Power handling program: 1200 W

Power handling peak: 2400 W

Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms

Max. SPL average (1 m, 10 % THD @ 40 Hz - 100 Hz, (EN 60268-21), full space): 116 dB

Max. SPL peak (1 m, 10 % THD @ 65 Hz, full space): 120 dB

Sensitivity 1 W/1 m (40 Hz - 100 Hz, full space): 91 dB

Frequency range -6 dB: 61 Hz - crossover frequency

Frequency range -10 dB: 42 Hz - crossover frequency

Dispersion angle -6 dB: omnidirectional

Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)

IP protection class (EN 60529): not specified

Low frequency: 1x 12" Sica cone speaker with ferrite magnet and 2.5" voice coil

Crossover: no internal crossover

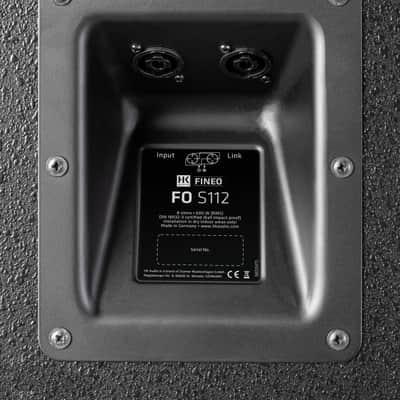

Input : 1 x NL4 Speakon

Output/parallel output: 1 x NL4 Speakon

Pin assignment: 2+/- (input/parallel output), 1+/- (wired through)

Lab.Gruppen: IPX

LEA Professional: Sharkware

Filter specifications in tabular form for frequency response equalization Without limiter specifications: Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix

Cabinet material: MDF

Cabinet surface: 1-component acrylic enamel

Color : Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog

Front grille: Steel front grille with anticorrosive coating, backed acoustic foam and additional steel reinforcements

Secondary grille: Insertion protection of the bass reflex port made of coated expanded metal

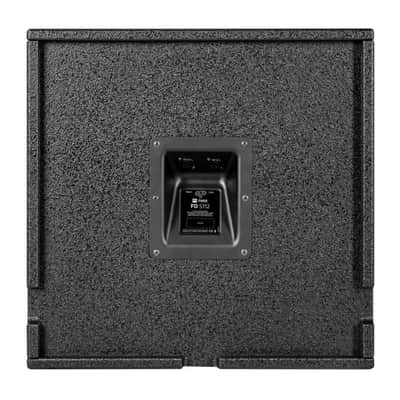

Cable routing: Cutouts on the back for cable routing close to a wall to the left, right or below

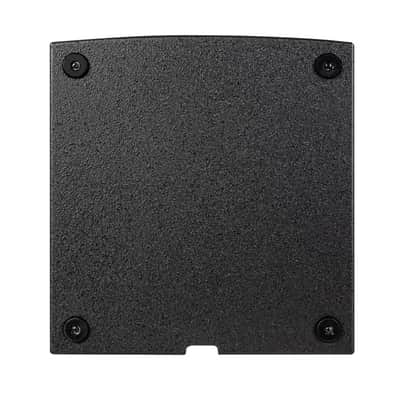

Feet: 4 x rubber foot on bottom

Dimensions (WxHxD): 474 x 478 x 506 mm 18.66 x 18.82 x 19.92 inch

Weight: 24.5 kg 54.01 Ibs
