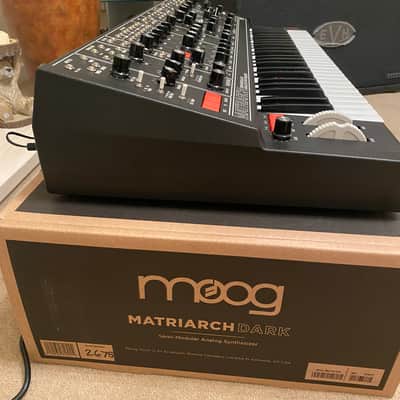

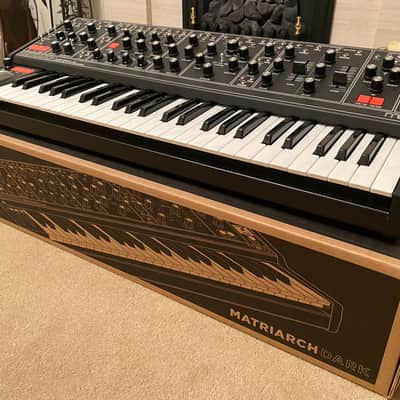

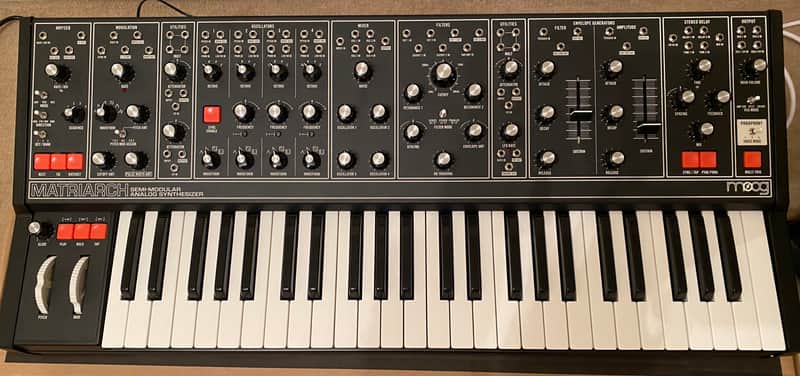

Brand new, never been used Moog Matriarch Dark. Perfect condition. Original box. Manual & cables.

Features - Moog Matriarch Paraphonic Analog Synth

• Mono, duo, and 4-note paraphonic playability
• Stereo analog delay w/ up to 700ms of MIDI sync-able stereo or ping/pong style repeats
• 256 step sequencer w/ up to 4 notes per step and 12 stored patterns. (Can be decoupled from Matriarch to independently sequence external gear)
• Arpeggiator with selectable modes (Order, Forward/Backward, Random)
• Semi-modular analog synthesizer - no patching required
• 90 modular patch points for endless exploration
• Oscillators based on the Minimoog
• Mixer based on the classic CP3 module
• Filters based on the classic 904A module
• Envelopes based on the classic 911 module
• VCAs based on the classic 902 module
• Analog Delay based on the MF-104M and 500 Series effects
• Expressive 49-note Fatar keyboard w/ patchable velocity and aftertouch
• 4 analog oscillators w/ selectable waveshape and hard sync per-oscillator
• Full-range analog LFO with 6 selectable waveshapes
• Dual analog filters with parallel (HP/LP), stereo (LP/LP), and series (HP/LP) modes available
• Dual analog ADSR envelopes
• Dual analog VCAs
• 3x bipolar voltage controlled attenuators with ring mod capability
• 2x4 parallel wired unbuffered multis
• Additional simple analog LFO useful for adding modulation to delay, filters and VCAs
• 1/4“ external audio input for processing guitars, drum machines, and more throughMatriarch’s analog circuits
• Stereo ¼” and 3.5mm Eurorack level audio outputs

SpecificationsMoog Matriarch Paraphonic Analog Synth

• Type: Semi-Modular Analog Synthesizer
• Sound engine: 100 Analog
• Number of keys: 49 Full-Size Keys
• Type of keys: Velocity-sensing with Aftertouch (Velocity and Aftertouch are nothard-wired – available via MIDI, KBD VEL OUT and KB AT OUT jacks)
• Other controllers: Pitch Bend, Mod Wheel, Variable Glide, Expression pedal into CV out, and Sustain Pedal in
• Polyphony: Monophonic, 2-Note Paraphonic, and 4-Note Paraphonic
• Sound sources: 4x Analog Oscillators with Selectable Waveforms (Oscillators 2, 3,and 4 support Hard Sync), White Noise Generator, External Input jack
• Mixer: 6 input (5 eurorack level and 1 instrument level) DC coupled discrete mixer with asymmetrical clipping behaviour
• Filters: 24dB/Octave Low Pass Filter with Resonance, 24dB/Octave switchable LowPass/High Pass Filter with Resonance. Configurable in parallel (HP/LP), stereo (LP/LP),and series (HP/LP)
• Mod sources: Analog Modulation Oscillator with selectable and patchable output(Sine, Saw, Ramp, Square, Stepped Triangle, Smoothed Random, Sample and Hold,Noise). Additional LFO (Tri, Square)
• Envelopes: 2x Four-Stage ADSR with End of Envelope gate outputs
• Attenuators: 3x Bipolar Voltage Controlled Attenuators with Ring Mod capabilities
• Multis: 2x4 Parallel-wired Non-buffered Patch Points
• VCAs: 2x discrete analog VCAs routed in stereo
• Effects: Stereo Analog Delay with Ping/Pong, MIDI and CV clock sync, voltage controlled Mix, and independent L/R delay times, feedback, and I/O
• Arpeggiator / Step sequencer: 256 Steps with up to 4 notes per step; 12Sequence locations
• Patch points: 90 x 3.5mm front and rear panels, 49 Inputs, 33 Outputs, 2x4Parallel-wired Multis.
• Pedal inputs: 1/4” Sustain, 1/4” Expression
• Audio inputs: 1/4” TS jack (Rear Panel)
• Audio outputs: 2x 1/4” TS jacks for line level output (Rear Panel), 1/4” Headphone jack with dedicated level knob (rear panel), 2x 3.5mm Eurorack level outputs, 2x 3.5mmDelay outputs
• MIDI I/O: 5-pin DIN In, Out, Thru; plus MIDI over USB (Rear Panel)
• Dimensions: 32” (81.28cm) Wide x 14 1/4” (36.19cm) Deep x 5 1/2” (13.97cm) High
• Power: Included Power Adapter 12V DC (positive tip), 2A, 100 to 240 Volts AC,50/60Hz with screw-on barrel connector.
• Weight: 24lbs. / 10.89kg
