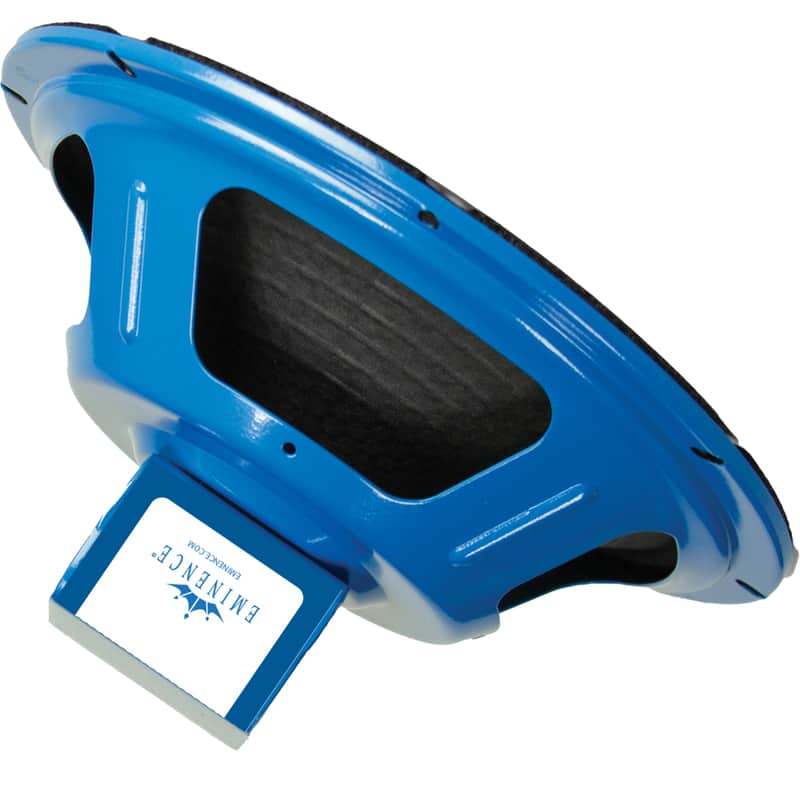

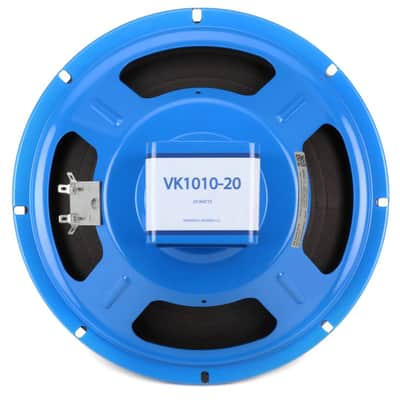

Eminence VK-1010-20-16 | 10" 20W 16Ω Vintage Design Replacement Speaker. New with Full Warranty!

The Eminence VK1010-20 marks the triumphant return of the iconic Blue Frame speaker - a 10" driver reborn in 2025 with vintage soul and modern consistency.

Built with a paper former and crafted using old-school construction techniques, the VK1010-20 delivers the warmth, clarity, and tonal complexity that made its predecessors legendary in Fender Vibro King and Bassman amplifiers.

Whether you're dialing in classic rock overdrive, soulful blues tones, or crisp country twang, this speaker brings the unmistakable voice of vintage American tone - now with Eminence’s quality control and craftsmanship.

At 20 watts, it’s ideal for boutique combos, reissue builds, and tone purists who demand character in a compact form.

GENERAL SPECIFICATIONS

Nominal Basket Diameter: 254 mm (10 in)

Nominal Impedence: 16Ω

Power Rating Watts: 20W

Power Rating Music Program: 40 W

Resonance: 104.12 Hz

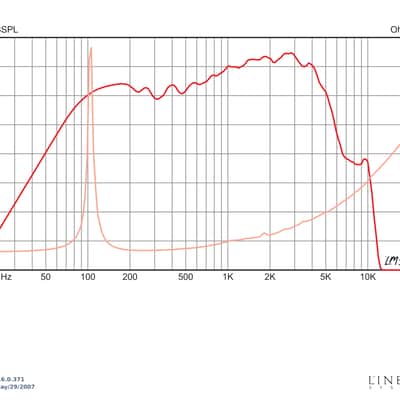

Usable Frequency Range: 100Hz-5KHz

Sensitivity: 98.2 dB

Magnet Weight: 170.094.705 g (6 oz)

Gap Height: 6.35 mm ( 0.25 in)

Nominal Voice Coil Diameter: 25.4 mm (1 in)

MOUNTING AND SHIPPING INFO

Overall Diameter: 256.79 mm (10.11 in)

Baffle Hole Diameter: 231.90 mm (9.13 in)

Front Gasket: Yes

Rear Gasket: No

Mounting Holes Diameter: 5.588 mm (0.22 in)

Mounting Holes B.C.D.: 243.84 mm (9.6 in)

Magnet Diameter: 92.08 mm (3.625 in)

Depth: 121.92 mm (4.8 in)

Shipping Weight: 1.81 kg (4 lb)

Net Weight: 1.32 kg (2.90 lb)

Volume Displaced: 0.77 liters (47 in3)
