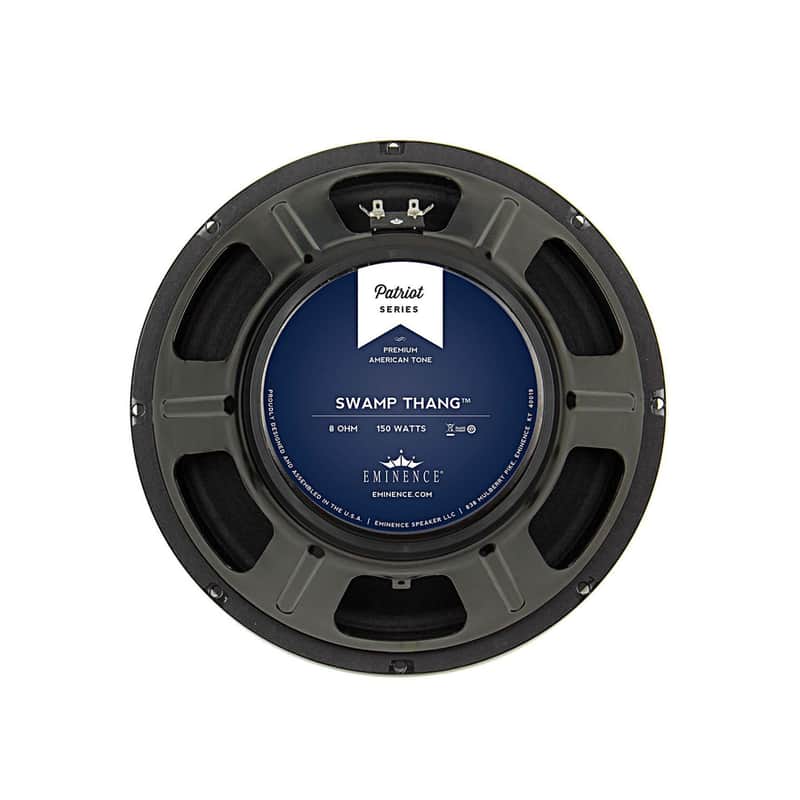

Eminence Patriot Swamp Thang | 12" 150W 8Ω Replacement Speaker. New with Full Warranty!
Our users rate Reverb
Designed with heavier players in mind, the Swamp Thang provides a thick and chunky tone with loads of sustain. The awesome bottom end will hold up to even the most demanding drop-tune or 7 string players.
Characteristics
Series Patriots
Model Swamp Thang
Application 12" Open or Closed Back
Configuration 1, 2, or 4 X 12"
Low End Response Aggressive
Low End Shape Fat/Round
Mid-Range Response Aggressive
Mid-Range Shape Dark
High-End Response Moderate
Volume/Power Loudest
Overall Coloration* Very powerful, thick and chunky tone. Very touch sensitive with good sustain. Awesome bottom end.
Break-up Modes Slow
Power Range Up to 150 watts
Instrument* Lead/Rhythm Guitar
Genre of Music* Very American tone suitable for Blues, Rock, and Jazz
SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8Ω
Power Rating* Watts 150 W
Resonance 97 Hz

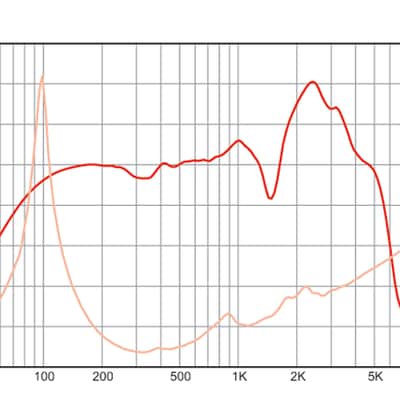

Usable Frequency Range 70 Hz - 4 kHz
Sensitivity* 102 dB
Magnet Weight 59 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 97 Hz
DC Resistance (Re) 6.92 Ω
Coil Inductance (Le) 0.42m H Mechanical Q (Qms) 14.43
Electromagnetic Q (Qes) 0.55
Total Q (Qts) 0.53
Compliance Equivalent Volume (Vas) 41.3 liters / 1.46 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 42.6 cc
Mechanical Compliance of Suspension (Cms) 0.1 mm/N
BL Product (BL) 14.2 T-M
Diaphragm Mass Inc. Airload (MMs) 26 grams
Efficiency Bandwidth Product (EBP) 177
Maximum Linear Excursion (Xmax) 0.8 mm
Surface Area of Cone (Sd) 532.4 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATIONRecommended Enclosure Volume
- Sealed Acceptable
- Vented Acceptable
Driver Volume Displaced 0.079 cu.ft. / 2.25 liters
Overall Diameter 12.03", 305.6 mm
Baffle Hole Diameter 11.07", 281.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.59", 294.4mm
Depth 5.2", 132.1 mm
Net Weight 11.1 lbs, 5.03 kg
Shipping Weight 12.8 lbs, 5.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap
