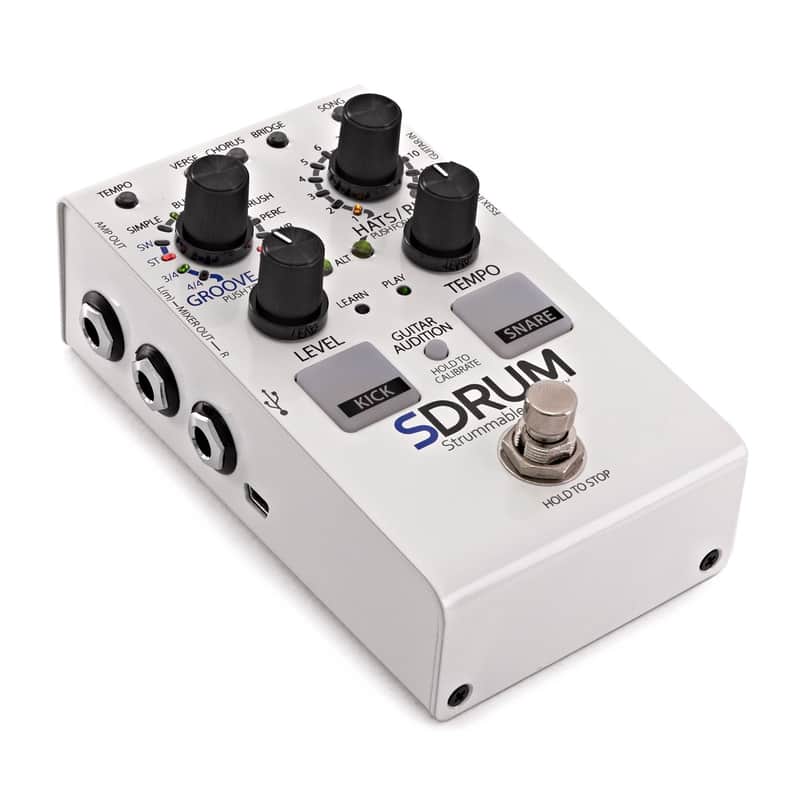

SDRUM is the world’s first intelligent drum machine for guitarists and bassists. By simply scratching across your guitar strings, you teach the SDRUM a kick and snare pattern that forms the foundation of the beat you want to hear. Based on this pattern, the SDRUM supplies a professional-sounding drum beat with different embellishments and variations to perfectly complement your beat. Gone are the days of having your creative flow disrupted by searching through lists in a frustrating attempt to find the beat you want. The SDRUM stores up to 36 different songs. Beats are played from a choice of 5 different kits covering a wide range of genres. The pedal also supports three different parts (e.g. verse/chorus/bridge) for each song that can be switched on the fly to enhance live performances and explore song ideas. SDRUM is the fastest way to go from a beat idea to a working drum track.

Features:

• BeatScratch Technology creates drum patterns by strumming your strings.
• 5 kits and studio-quality samples for professional-sounding drums
• 36 song memories.
• 12 different Hats/Ride styles.
• Alternative instruments/voicings.

General Specifications

• Controls Groove/Kit, Hats/Rides, Level, Tempo.
• Backlit Buttons Tempo, Verse, Chorus, Bridge, Song, Alt (Kit), Alt (Hats/Rides), Guitar Audition.
• Pads Kick, Snare.
• Footswitches Main Footswitch.
• LEDs Learn, Play.
• Jacks Guitar In, FS3X In, Amp Out, Mixer Out L(m), Mixer Out R, JamSync Out.
• Other A mini USB port.
• Bit Depth 24-bit.
• Sample Rate 44.1 kHz.
• Signal-to-noise Ratio ≥108 dB, A-weighted.
• THD + Noise 0.004% @ 1 kHz.
• Storage Up to 4 bars per song part, 3 parts per song, 36 songs.
• USB Mini-B, USB 2.0.
• Power Requirements 9 VDC external power adapter.
• Power Consumption <5 W.
• Current Draw 500 mA.
• Power Adapter Model PS0913DC-04 (US, JA, EU, AU, UK).
• Power Adapter Output 9 VDC 1.3 A.

Dimensions

• Length 5.25".
• Width 3".
• Height 2.45".
• Weight 1.14 lbs.

Audio Output

• Amp Output Type Unbalanced, 1/4" TS.
• Amp Output Impedance 1 kΩ.
• Amp Output Frequency Response 20 Hz–20 kHz.
• Mixer L/R Outputs Type Impedance balanced, 1/4" TRS.
• Mixer L/R Outputs Impedance 1 kΩ.
• Mixer L/R Max Output +19 dBu.
• Mixer L/R Frequency Response 20 Hz–20 kHz.
• JamSync Outputs Type 1/8" TRS.

Audio Input

• Guitar Input Type Unbalanced, 1/4" TS.
• Guitar Input Impedance 1 MΩ.
• Guitar Max Input +8 dBu.
• FS3X Input Type 1/4" TRS (compatible with DigiTech FS3X).
