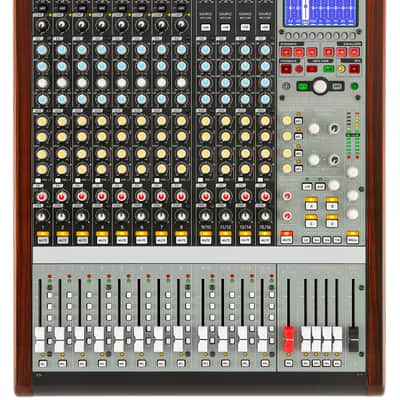

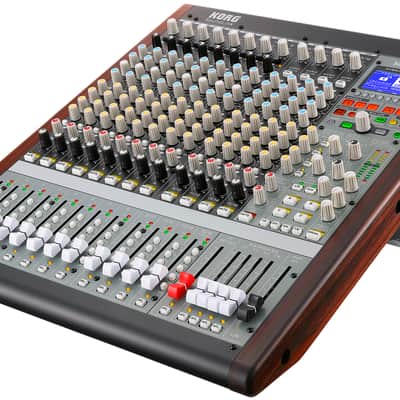

The Korg SoundLink 1608 Mixer offers a never-before-seen combination of top-quality analog and digital together in a hybrid mixer that's built for incredibly powerful and intuitive live mixing. It offers 16 mixer channels with true 8-bus configuration and flexible multi-effects, making for the most powerful mixer this size.

The massively powerful processing allows for running up to 10 effects at a time for total mixing control. Korg's amazing 32-bit effects and signal processing combine with the premium analog mixer components and design for a truly flexible hybrid analog and digital mixer. The 16 channels and 8-bus system make the SoundLink 1608 the most versatile mixer its size.

• 16 channel hybrid analog/digital mixer
• Powerful digital processing for up to 10 effects at a time
• Korg's renowned high-quality 32 bit effects, as found in Kronos
• True 8-bus configuration with group outputs
• Premium analog components and design
• Designed with Greg Mackie and Peter Watts

Specifications:

ANALOG:

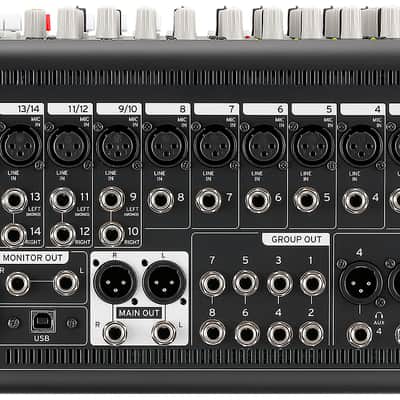

- Input Type: Balanced female XLR and ¼” TRS

- HiVolt Microphone Preamp: -128dBu E.I.N, -10 to -60 dBU nominal input level; 3KΩ input impedance

- Frequency Response to Main Output (at unity gain): +0.5 to -1.5 dBu 20Hz to 20kHz

- THD to Main Output (20-20 kHz, unity gain, unwtd): 0.004%

- S / N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): -70 dBu

- System Crosstalk (Ref = +4 dBu, 20 Hz-20 kHz, unwtd): Input to Output, -70 dBu; Adjacent Channels, -90 dBu

- Gain Control Range (± 1 dB): +10dB to +60dB (Mic), -10 to +40dB (Line)

- Main Outputs: Balanced male XLR and ¼” TRS

- Maximum Output Level: +26 dBu

- Output Impedance: 75 Ω

- Headphone Output: 100 mW / ch. @ 32Ω load, 20 Hz-20 kHz (+0.5dB, -1.5dB)

CONTROL:

- Savable Settings: Channel Mutes, Effects & effects Mutes, Mute Groups, Break settings, Dynamics, Graphic EQ, Feedback assign to bus

- Recallable Presets: four Mute Groups, 10 Global Scene Memories, 24 FX Memories, 10 Dynamics, 6 GEQ, 16 or 24 Channel Mutes, 3 Feedback bus assignments

SIGNAL PROCESSING:

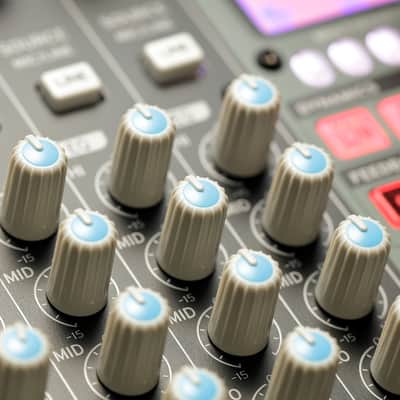

- Mono Channels: HI (12k, shelving), MID (peak, sweepable from 250hz to 5k) and LO (100 Hz, shelving), ±15dB boost/cut;

- Stereo Channels: HI (12k shelving), HI MID (2.5k peaking), LO MID (250 hz peaking) and LO (100Hz shelving)

- High Pass Filter: 12dB/octave at 80Hz

- Digital Multi-band EQ: 31-bands with nine frequencies selectable at any one time, Wide 1-octave interval and Narrow ½-octave modes

- Digital Compressor: Hard – 1ms to 40 ms Attack, +11dB to 0dB Threshold; Soft ¬– 1 ms to 40 ms Attack, +11 to -5dB Threshold

- Digital Limiter: 1ms to 40 ms Attack, +19 to +3dB Threshold

- Digital Noise Gate: Hard – 40ms to 1500ms Release, -35 to +7dB Threshold; Soft – 40ms to 1500ms Release, -50 to +4dB Threshold

- Digital Multiband EQ, Compressor, Limiter, and Noise Gate are assignable individually to Main L/R, Aux 1 and Aux 2

- Spectrum Analyzer: 24-channel with Peak Hold function

DIGITAL:

- Main L/R Bus ADC Dynamic Range: 115dB (A-wtd)

- Aux and FX Buses ADC Dynamic Range: 111dB (A-wtd)

- DAC Dynamic Range for all Out buses: 115dB (A-wtd)

- USB Stereo Input / Recording Port: USB Class 1

- Internal Processing: 32-bit for internal processing;

- A/D/A Bit Depth: Korg Tru-Bit-Perfect 32-bit

- USB Bit Depth: 24-bit

- Sampling rates: 48 kHz, 44.1 kHz

- Digital Effects: Rev Hall, Rev Hall Warm, Room, Warm Room, Rev Vocal, Rev Vocal Warm, Stage, Stage Warm, Plate Reverb, Plate Reverb Warm, Spring Reverb Warm, Analog Delay, Tape Echo, Variable Delay, Delay of the Korg SDD3000, Chorus, Flanger, Exciter, Sub Bass booster, 1 kHZ Test Tone, Slow Sweep, Fast Sweep, White or Pink Noise

PHYSICAL:

- Power Connector: IEC

- Input-Voltage Range: 100 to 240 VAC, 50/60 Hz

- Power Requirements (continuous): 45 W

- Recommended Ambient Operating Temperature: 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit

WEIGHT:

17.6 lbs / 8.0kg

DIMENSIONS:

15.6” x 7.36” x 20.89" / 396 mm x 187 mm x 530 mm (10.6” / 356 mm wide without side panels;)
