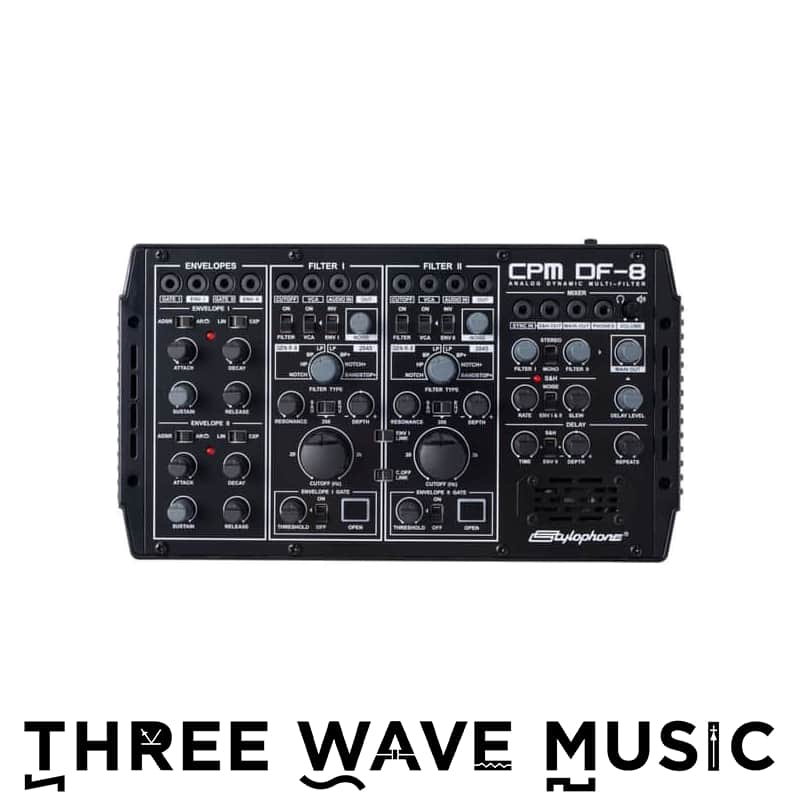

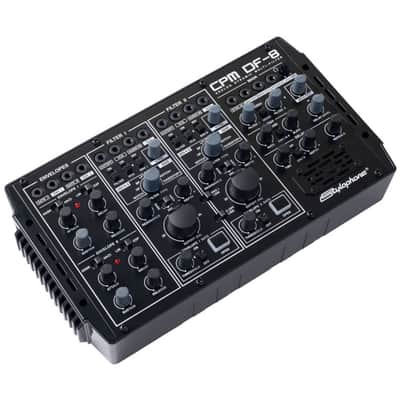

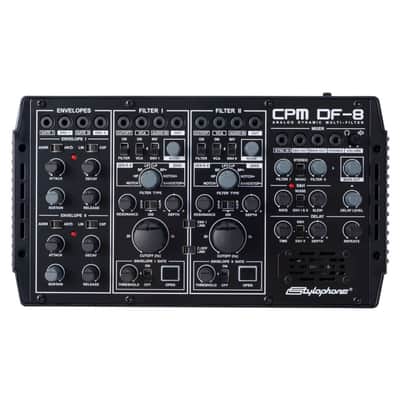

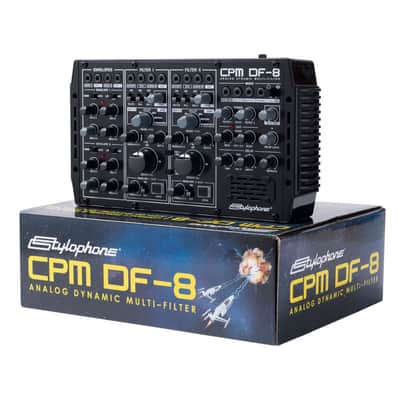

Stylophone DF-8 - Compact Portable Modular [Three Wave Music]

The CPM DF-8 Dynamic Analog Multi-filter merges the silky precision of the classic 2045 Lowpass filter with the raw power of Stylophone’s GEN R-8 filter, creating a standalone effects machine that’s both elegant and ferocious.

With two channels and eight filter types—including Lowpass, Bandpass, Highpass, Notch, and three hybrid modes (Bandpass +, Notch+, Bandstop +) the DF-8 delivers an expansive tonal range, from smooth sweeps to snarling distortion.

STYLOPHONE CPM DF-8 DYNAMIC ANALOG MULTI-FILTER – THE BEAUTY & THE BEAST OF FILTERS

The CPM DF-8 Analog Dynamic Multi-filter is the next in our Pro Audio range. Dubbed “Beauty and the Beast,” This unique filter box combines the precision of a smooth analog recreation of the classic 2045 Lowpass filter with the bold, dynamic character of Stylophone’s proprietary GEN R-8 filter.

The DF-8 is much more than a dual filter box. It’s a sound design tool, equipped with two white noise sources, a sample-and-hold modulation source with adjustable slew, and a crunchy PT2399 delay with modulation. It serves as a versatile sound source capable of everything from subtle atmospheres to all-out sonic chaos.

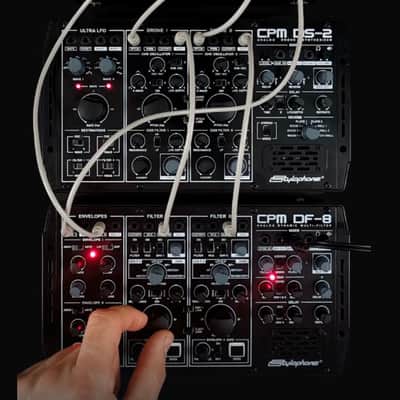

Like all CPM units, the CPM DF-8 is designed for portability and flexibility. Stylophones’ unique enclosure design with side ribs allows multiple CPM units to be locked together, for stability like a large modular, and for easy insertion into a Eurorack desk.

KEY FEATURES

• Two analog filter channels
• 8 Filter types per channel:
  – 4 types of GEN R-8 (12 dB/oct) filters with LP, BP, HP and NOTCH modes
  – 1 type of 2045 (24 dB/oct) filter with LP mode
  – 3 combination types (12/24 dB/oct) with BP+, NOTCH+ and BANDSTOP+ modes
• 2 ADSR Linear exponential envelopes
• 4 Envelope trigger modes (Gate in, audio threshold, autorepeat, manual)
• Triggered by a gate signal, an audio signal threshold, and a manual trigger button, they can even autorepeat in a loop mode, acting as LFOs.
• 2 VCA with envelope inverters
• 2 White Noise sources
• 3 Envelope Depth Attenuverters
• 4 Bypass Switches
• 1 Sample-and-Hold modulation source with adjustable slew
• 1 Vintage PT2399 delay with modulation.
• 14 Modular Patch Points
• 3 into 1 Mixer
• 2 Stereo outputs
• Built-in 2W speaker
