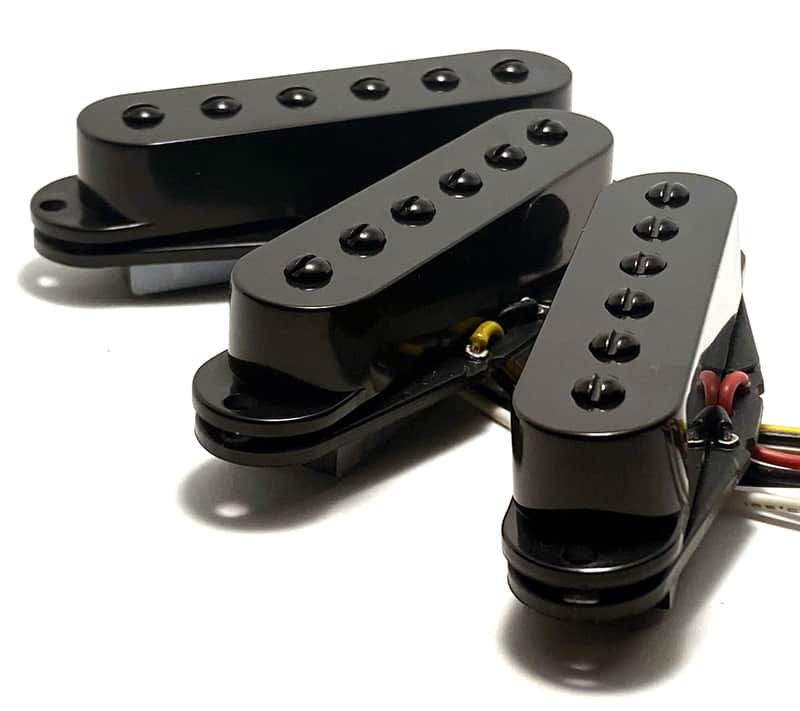

Dragonfire Cane Singles SSS Pickup Set ~ Modern Ceramic Power Strat Bridge+Middle+Neck Pickups, Black

Dragonfire Cane Single Coil Strat SSS Pickup Set, Ceramic Double Bar Magnet Style Power Performance with Black Screw Style Exposed Poles + Black Strat Pickup Cover + Black Mounting Screws ~ Strat SSS Pickup Set (Bridge + Middle + Neck) Collaborative Three Pickup SSS Set Style: 1 qty Bridge Position Dedicated Pickup + 1 qty Middle Position RWRP Dedicated Pickup + 1 qty Neck Position Dedicated Pickup

You asked and Dragonfire Pickups delivered! Modern Cane Singles offer a contemporary look and feel along with solid performance. With black screw style exposed poles and dual ceramic bar magnets, these pickups offer a new take on structured aesthetics and focused play.

Cane Singles are dedicated position pickups for performance enhancement and differentiation. Each pickup is wound specifically for its position, so they are not position interchangeable. The Middle position pickup is Reverse-Wound and Reverse-Polarity (RWRP) to ensure the best possible set execution and collaboration. RWRP makes hum-cancelling in Positions 2 & 4 possible with standard switch wiring.

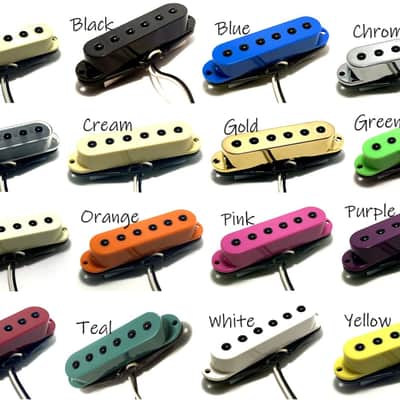

Visit our Reverb Store if you want an individual Strat pickup or a set of two pickups. We also offer this same pickup style with other cover colors including black, blue, cream, green, orange, pink, purple, red, teal, white and yellow so you can personalize your color scheme. If you're looking for a mixed set, we recommend pairing these with our Dragonfire Nado Buckers. Please see our Reverb Store and contact us if you have any questions or would like more information.

~~Product Highlights~~

*Dragonfire Cane Single Coil Strat Pickup

*Modern Performance & Contemporary Style

*6 String Passive Strat Single Coil Pickup

*Screw Style Black Non-Staggered Poles

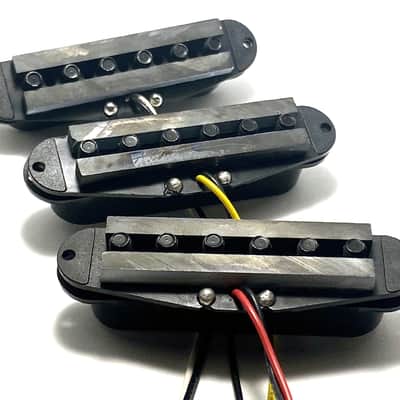

*Double Bar Ceramic Magnet Style

*Matched 52mm String Spacing (all positions)

*Position Dedicated for Performance Differentiation

*2 Conductor Wiring (2 Wire Pickup Design)

*Wax Potted for Squeal Reduction, Avoidance or Elimination

*Pickup Mounting Screws & Springs Included

*250K Pots & 0.022 Tone Caps Recommended (available separately)

*Mixed Set Recommendation: Dragonfire Nado Buckers

~~Approximate Measurements~~

*Bridge Output: Wound to ~6.1K

*Middle Output: Wound to ~5.8K

*Neck Output: Wound to ~5.6K

*52mm Standard String Spacing

*Pickup Length: 70mm (82mm including mounting flanges)

*Pickup Width: 18mm

*Pickup Depth: 24mm

*Mounting Screw Spacing: 76mm

~~Installation Information~~

These two-wire pickups come with a colored hot and a black ground wire for easy installation. Due to the vast and varied nature of possible components and set-up styles, we do not provide specific information or diagrams for installation. You should be able to use basic information and general knowledge to successfully complete installation with your choice of diagram or instructions if needed.

If you’d like to update your wiring, switching, controls or functionality to upgrade your system, check out our custom Wiring Harnesses.

Installation requires soldering and compatible system. We provide enough pickup lead wire to complete installation wiring in standard usage situations.

~~Purchase Notes~~

Please ask any questions prior to purchase. Allow and expect variation in color due to photo and monitor settings, perception, lighting, as well as natural product variance. Color descriptions indicate color of item, not material. Ask any questions regarding options, measurements, installation requirements, special requests, or anything else prior to purchase.
